AS-EQ1 Operator Manual
© 2009 SV Sound, LLC
•
6420 Belmont Avenue, Girard, OHIO
•
703.845.1472
•
www.svsound.com
SV Sound, LLC
The AS-EQ1 is designed to connect between your AVR or “Pre/Pro” (Pre-amp/Processor) and your subwoofer(s)
so that after calibration, the AS-EQ1 can apply the necessary corrections to “flatten” the response of bass
in your listening environment.

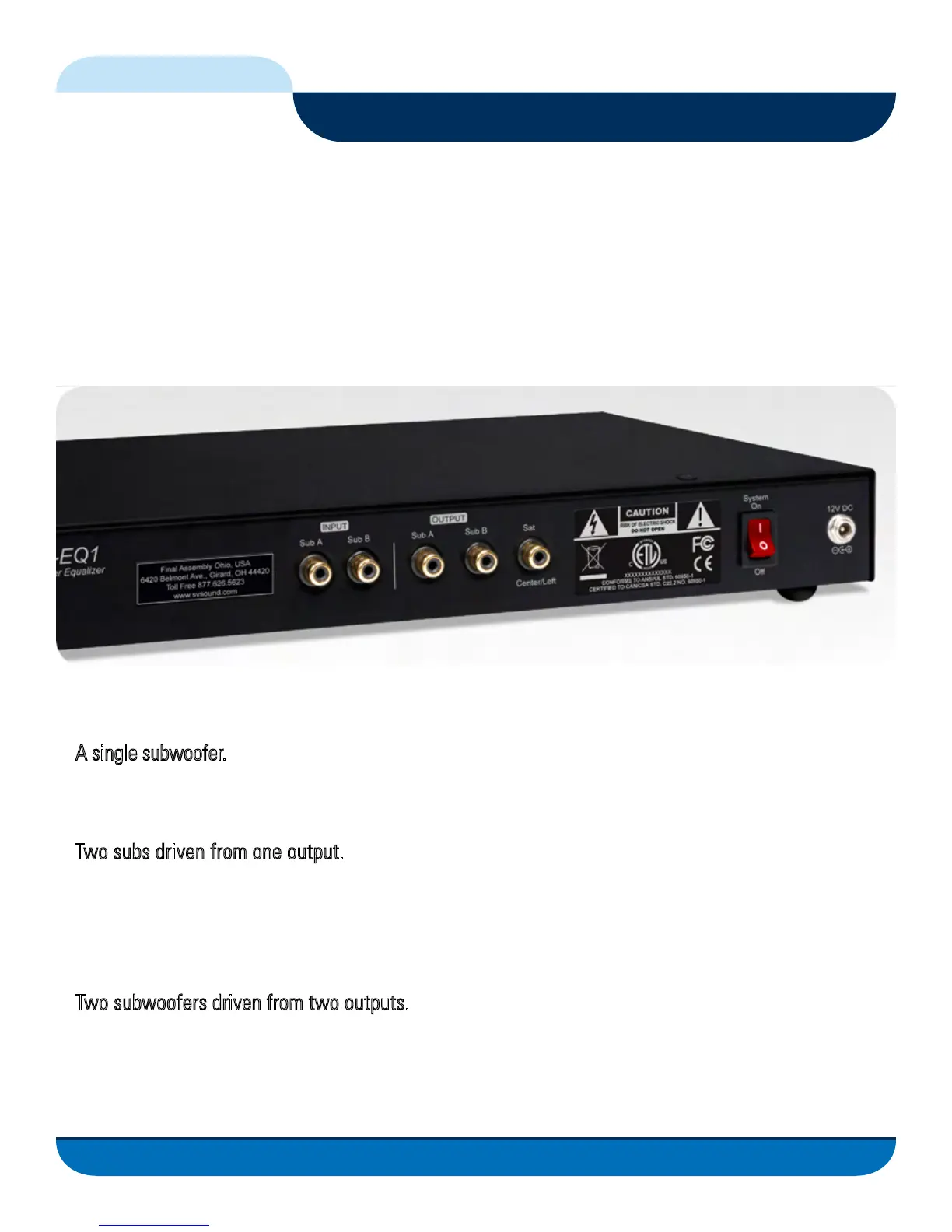

As shown below, the AS-EQ1 has two subwoofer Inputs labeled A and B and two subwoofer Outputs labeled
A and B on the back panel. You’ll also notice an Output connector marked Sat Center/Left we’ll reference later
in the calibration process.
The AS-EQ1 handles three different subwoofer configurations: (see Fig. 7 above and Fig. 8 on the next page)
1.
A single subwoofer. If you have one subwoofer in your system (or co-located subs and you want to equalize
them as a single subwoofer), attach the subwoofer pre-out from your AVR or Pre/Pro to the Sub A input.
Take the cable formerly run from your AVR or Pre/Pro to your subwoofer and connect to the AS-EQ1 Sub A Output.
2.
Two subs driven from one output. This is the most common configuration when running multiple subs.
You may have taken the subwoofer pre-out from your AVR or Pre/Pro and run it through a “Y” connector
to split the signal in two; one for each of your subwoofers. In this case, remove the Y splitter and
attach the subwoofer pre-out to the Sub A input on the AS-EQ1. Connect one of your subs to the
Sub A output and the other to the Sub B output on your AS-EQ1.
3.
Two subwoofers driven from two outputs. If you use discrete subwoofer or LFE outputs on your AVR or
Pre/Pro (or have two different systems with a subwoofer in each) and want the signals to be treated
individually, attach one of the outputs to the Sub A Input and the other output to the Sub B Input on the
ASEQ1. Take the cables from the subwoofers that were formerly attached to theAVR or Pre/Pro and
connect them to the Sub A and Sub B Outputs on the ASEQ1.
Connecting the AS-EQ1 to Your Audio System
11
FIG. 7
To Next Page
