6. Performance checks

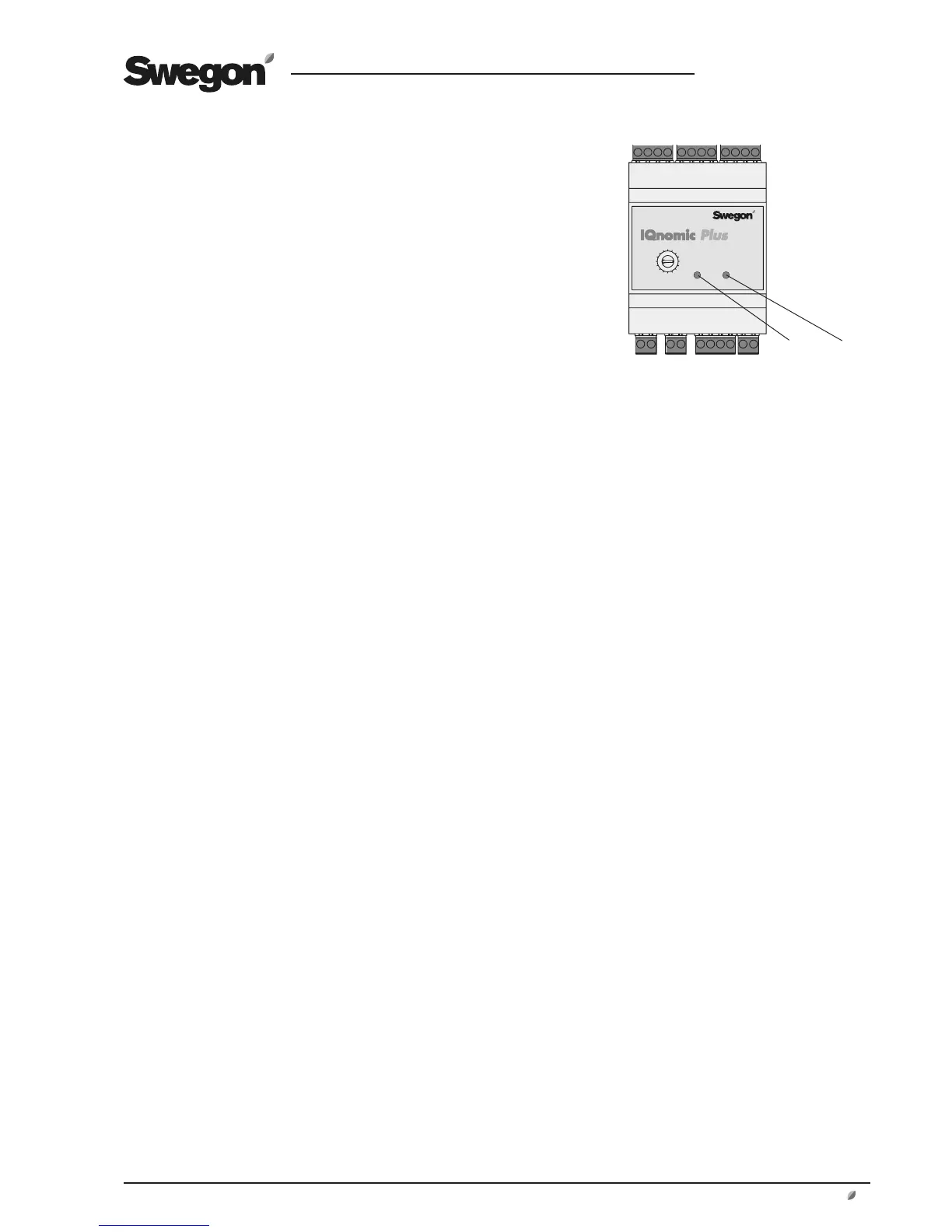

IQnomic Plus module:
Light-emitting diode L2 lit with a steady glow indicates
that power is being supplied from the GOLD unit’s control
unit.
A flashing light-emitting diode L1 indicates correct com-
munication with the GOLD unit’s control unit.
Temperature sensor:
Current temperatures can be read under INSTALLATION
– READINGS – IQNOMIC PLUS – XZONE HEATING/XZONE
COOLING. If the temperature readings are resonable,
wiring has been carried out correctly.
If the functions are activated but the accessories have not
been connected correctly, an alarm will be initiated. See
the Operation and Maintenance Instructions for the GOLD
unit for a description of each alarm.
1632457 12981011
13 181514 16 17 19 242120 22 23
L1 L2
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
L1 L2
