Exploitation conditions
The control panel do not expose the device to direct
influence of atmospheric conditions (rain, sunlight) nor
vibrations stronger than typical occurring during wheel
transportation. Do not use the device in vapor condensa-
tion conditions and protect it from water. Storage and
transportation temperature should not exceed the range
of -15…+65°C. Control panel install the device only in dry
residential room.
Assembly requirements
The control panel is designed for mounting on the wall,
inside the room. The control panel should be mounted at
a height allowing comfortable operation, typically 1.5 m
above the floor.
To reduce measurement disturbances avoid locations
exposed to strong sunlight, with poor air circulation, near
heating equipment, and directly at the door and windows
(typically 0.2 m from the edge of the door).
The control panel should be installed by a trained
installer.

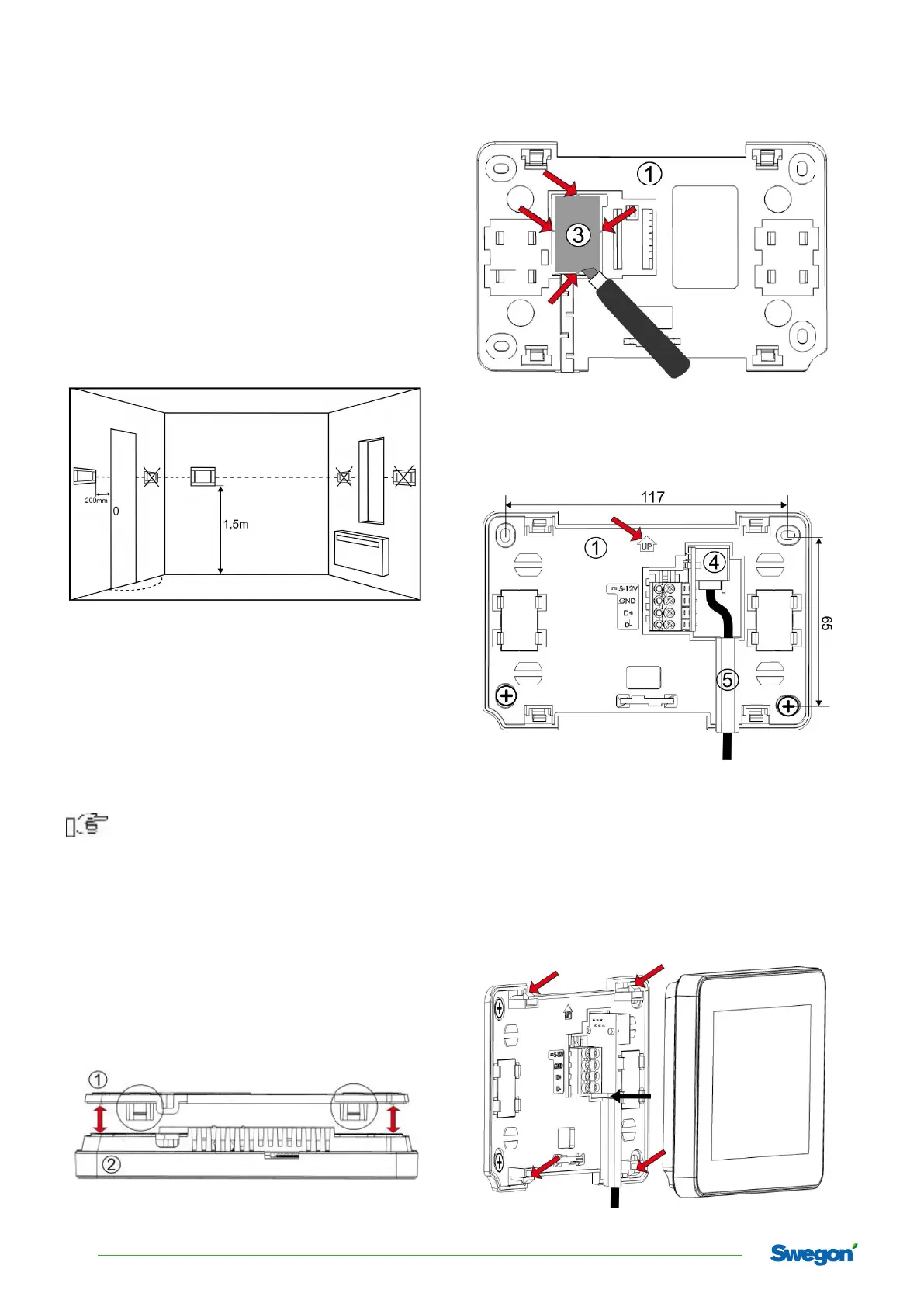

The control panel installation
The control panel installation should be done according to
the following guidelines.
Assembly.
Disconnect the mounting frame (1) from the back of
control panel housing (2). The frame is attached to the
control panel housing with latches. Use a flat screwdriver
to detach the frame.
Using sharp tool cut out holes in four places of the cover
(3) for the screw terminals.
Drill holes in the wall and use screws (max. Ø 3 mm) to fix
the mounting frame in the chosen place of the wall, main-
taining its proper position (UP). Then attach the control
panel to the mounting frame using latches.
Connect the transmission cable connecting the control
panel with the controller to the (4) AdaRJ adapter socket.
The transmission cable can be recessed in the wall or it
can run over its surface - in this case the cable should be
additionally placed in the (5) cable channel. The transmis-
sion cable cannot be conducted along with the cables of
the building mains. The cable should not be routed near
devices emitting strong electromagnetic field. Then attach
the control panel to the mounting frame using latches.
6
Swegon reserves the right to alter specications.
