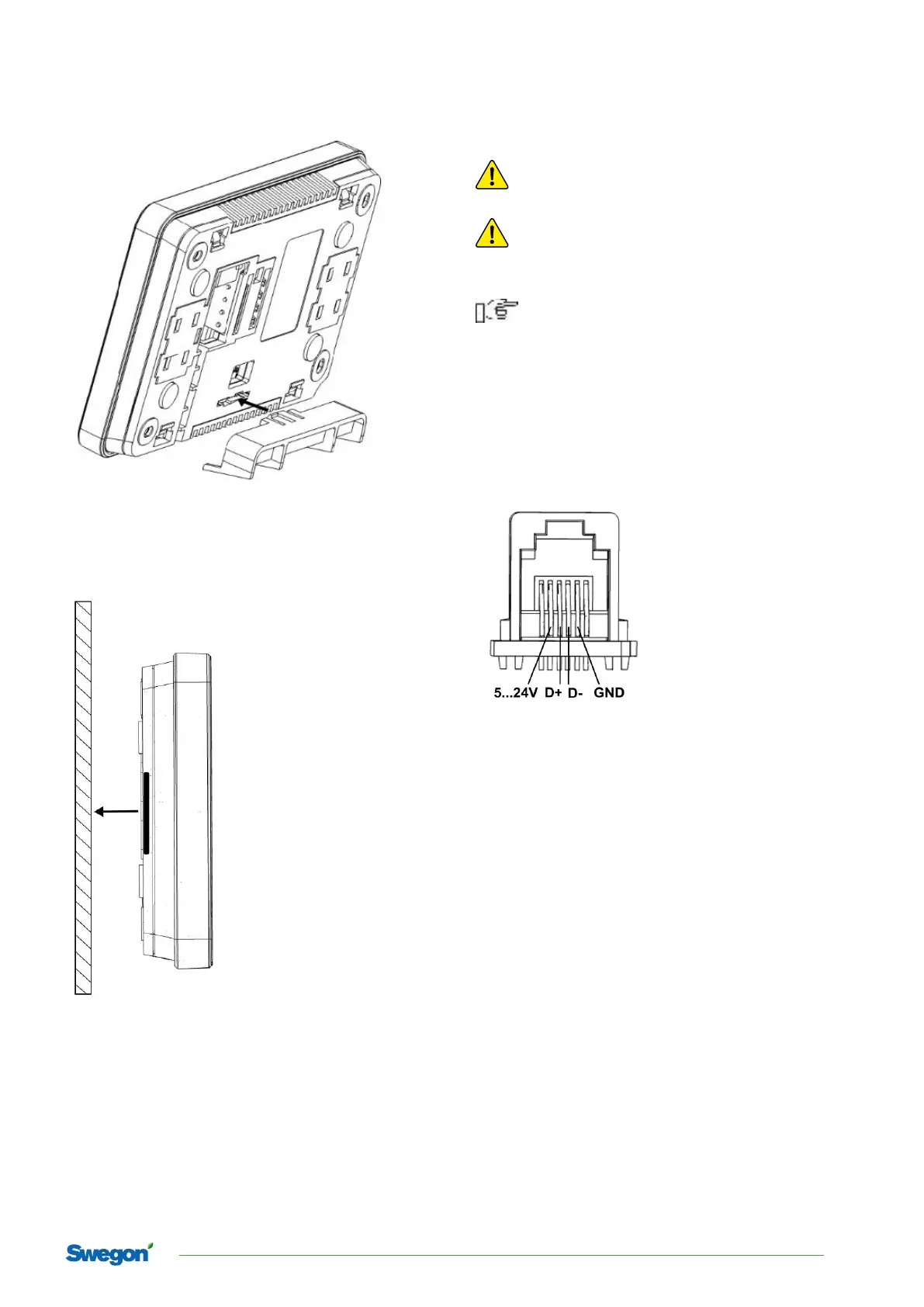

In order to place the control panel on a flat surface, a
dedicated stand should be used.
The control panel has built-in magnets, which allows it
to be attached without screws to a flat metal mounting
surface.
Connecting the control panel
to the controller
The control panel should be installed with the
mains supply disconnected from the controller.
Do not mix up the poles of the cables connecting
the control panel with the controller, as this may
damage the control panel and the controller.
When choosing the cable between the control
panel and the controller, the rule is that the resis-
tance of one conductor in the cable should not be
greater than 8Ω and the total length of the conduc-
tor must not exceed 100 m. The longer the wire,
the larger the wire cross section.
Example of cable type: YTLYp 4x0,12 mm2 (about resis-
tance 155Ω/km), max. length of 50 m.
Signal outputs in the control panel connector:
7
Swegon reserves the right to alter specications.
