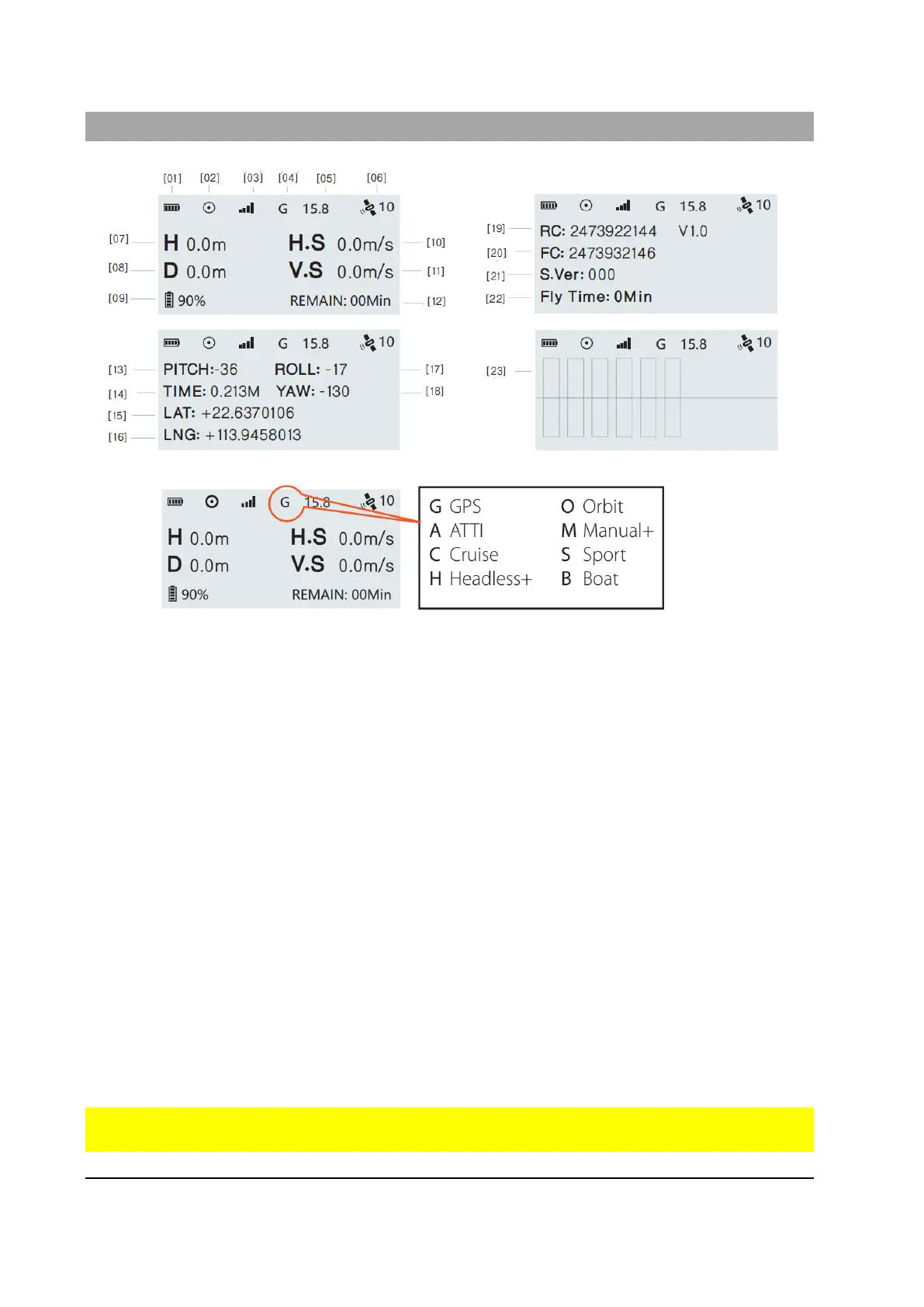

Remote Controller Screen
[01] Remote controller Battery Level
[02] Remote controller GPS Signal *1
[03] Drone Signal Strength/Pairing Status
[04] Flight Mode
[05] Drone Battery Voltage (V)
[06] Drone GPS Location Accuracy *3
[07] Drone Height from Take-off Point
[08] Drone Distance from Take-off
Point
[09] Drone Battery Level
[10] Horizontal Flight Speed
[11] Vertical Flight Speed
[12] Estimated Remaining Flight Time
[13] Pitch Angle
[14] Total Flight Time
[15] Drone Latitude *4
[16] Drone Longitude *4
[17] Roll Angle
[18] Yaw Angle
[19] Remote controller Serial Number & Firmware
Version
[20] Flight Controller Serial Number
[21] Flight Controller Firmware Version
[22] Total Flight Time
[23] Joystick and Control Input
Notes.
1. A flashing GPS Location Fix icon [02] indicates that the remote controller does not
have a current location fix. This does not relate to the drone’s GPS accuracy.
2. Flight Modes: G: GPS mode, A: ATTI mode, S: Sport mode, O: Orbit mode, H:
Headless mode, C: Cruise mode, M: Manual+ mode
3. Drone GPS Location Accuracy ranges from 1-10 with 10 being the highest accuracy.
A rating of 10 indicates a drone location accuracy <1m. 9=1.1 meters; 8=1.2 meters,
