2-5
3)

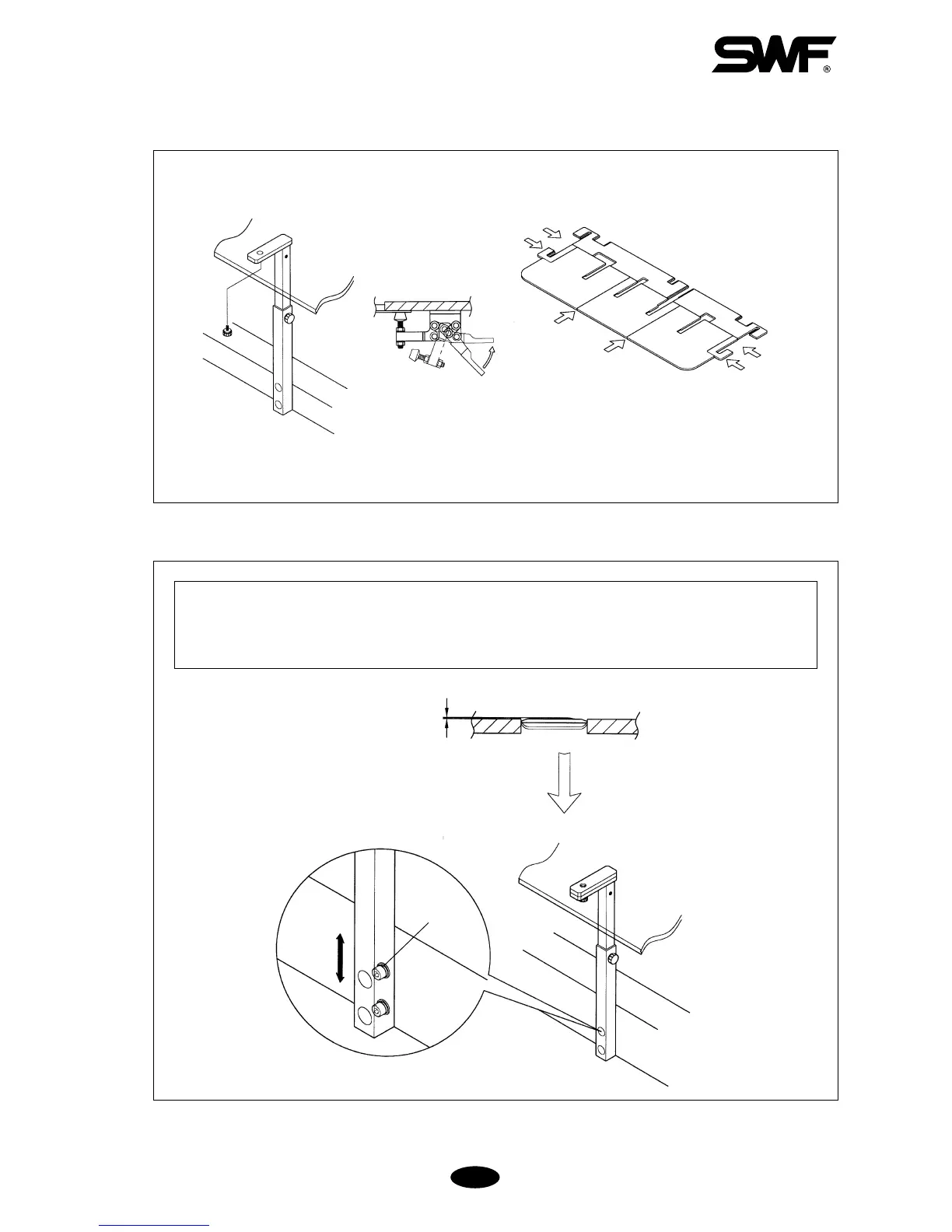

Insert the table and fasten the bolts and the clamps.
[Fig.2-9]
[Fig.2-10]
[CAUTION]
The table should not be higher than the upper side of the needle plate by 0.5mm for board frame
work. If the height difference is over 0.5mm, unfasten the table support bolts, adjust the height, and
fasten the bolts back.
Clamp
Clamp
Clamp
Table support
Bolts
height difference
if gap is larger
than 0.5mm
Table support
Bolts
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Safety Rules
5
1-1) Delivery of Your Machine
5
1-2) Installation
6
1-3) Machine Operation
7
1-4) Repair
7
1-5) Placement of Warning Stickers
8
1-6) Contents of Warning Stickers
9
Chapter 2 Installation and Machine Assembly
10
2-1) Environment
10
2-2) Electricity Installation
10
2-3) Leveling the Machine
11
2-4) Assembly of Peripheral Devices
12
2-5) Table Assembly
13
2-6) Frame Assembly
15
2-6-1) Tubular Frame
15
2-6-2) Border Frame
16
Chapter 3 Parts of the Machine
17
3-1) Swf/E-U Series
17
3-2) Swf/E-Uh1508-45
18
Chapter 4 Functions and Features
19
Chapter 5 Functions for Basic Machine Operation
21
5-1) Lamp on Thread Tension Adjustment Board
21
5-2) Needle Stop Clutch
22
5-3) Lamp on Color Change Box(Swf/E-Uh1508)
23
5-4) Upper Threading and Tension Adjustment
24
5-5) Lower (Bobbin) Threading and Tension Adjustment
27
5-7) Precautions in Using Floppy Disks or Usb Memory Sticks
30
5-8) Inserting Floppy Disks and Usb Memory Sticks
30
5-9) Deleting Floppy Disks and Usb Memory Stick
31
5-10) Reading and Writing of Embroidery Designs
31
5-11) Return to Previous Location in Unexpected Blackouts
31
5-12) Needle-Hook Timing Control
32
5-13) Assembly and Functions of Thread Detector
37
5-13-1) Functions of Thread Detector
37
5-13-2) Disassembling Thread Detector
37
Chapter 6 Maintenance and Inspection
38
6-1) Check Points for Regular Inspection
38
6-2) Cleaning
38
6-3) Oil Supply
40
6-4) Drive Belt Tension
45
Chapter 7 Machine Adjustments
46
7-1) Adjusting the Trimmers
46
7-1-1) Adjusting the Position of the Trimming Cam
46
7-1-2) Adjusting Blade Tension
47
7-2) Adjusting the Trimmer Return Spring
47
7-3) Adjusting Upper Thread Holding Unit
48
7-4) Picker Adjustment
49
7-5) Adjusting Upper Thread Holder
50
7-6) Adjusting Low-Noise Presser Foot
51
7-7) Relationship between Presser Foot and Needle
52
7-8) Correct Position of Needle
53
7-9) Adjusting Half-Turn Film for Color Change
54
7-10) Jump Motor Adjustment
55
7-11) Adjusting Drive Belt Tension
56
7-11-1) Y-Axis Timing Belt
56
7-11-2) X-Axis Timing Belt
57
7-11-3) Timing Belt on Main Shaft Motor
57
7-12) Lamp (Optional)
58
7-12-1) Lamp Socket Adjustment (4-Head)
58
7-12-2) Disassembling Cable Cover (4-Head)
58
Chapter 8 Troubleshooting
59
Chapter 9 Block Diagram
70
