6-8
6-4) DRIVE BEL
T TENSION
T
oo weak or too tight tension on the drive belt may cause machine malfunction or damages (abnormal wear-out of
drive unit). Inspect the driver belt on a regular basis.
[CAUTION]

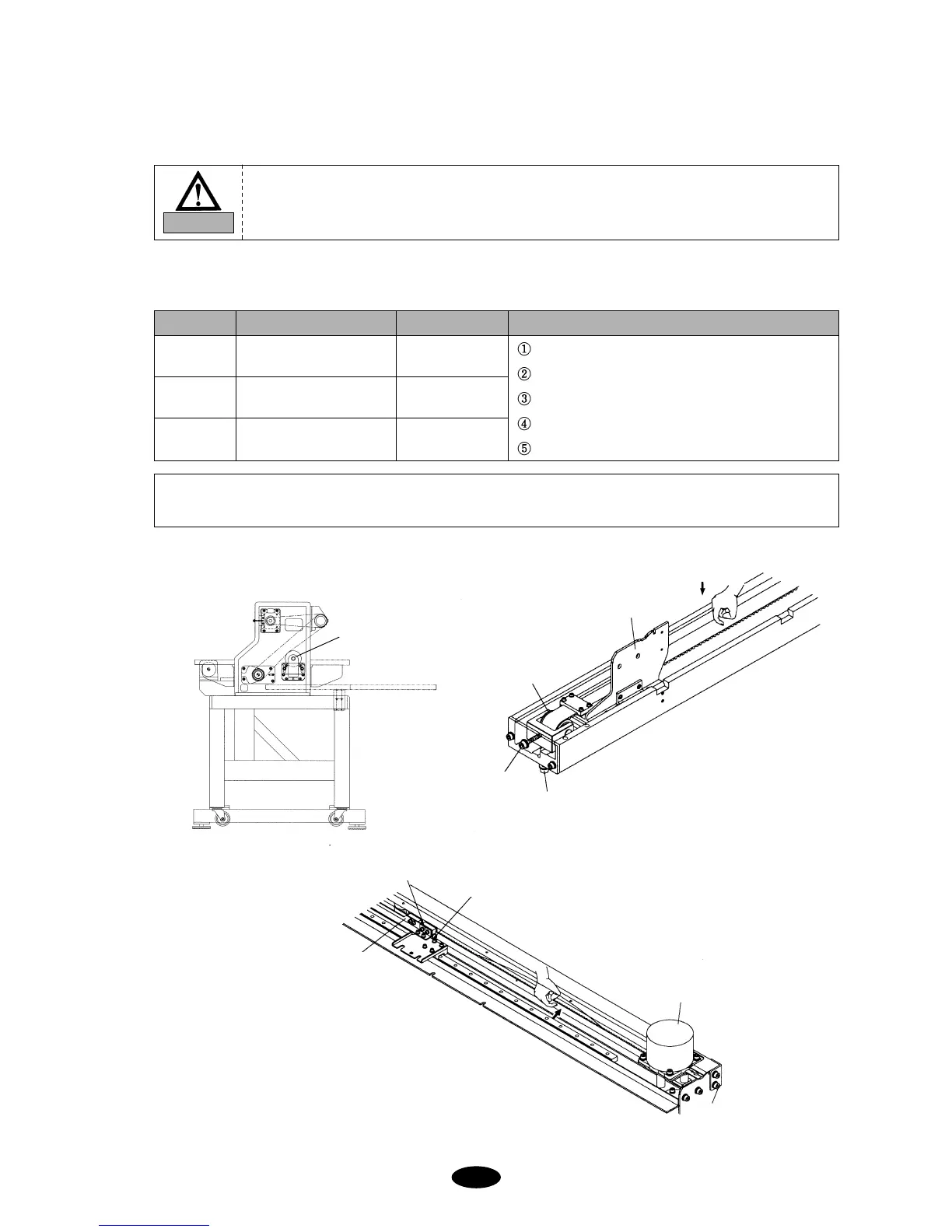

Inspect the tension in the direction of the arrows in the picture below.
[Fig.6-7]
Location for inspection
Belt on main shaft
motor
Belt on main shaft
motor
Others
Inspection cycle
Once in 3
months
Once in 3
months
Once in 3
months
Reference
check belt tension
check for belt crack
check for belt wear-out
check for bearing damage
check for wear-outs of rotating & sliding parts
NO
CAUTION
Turn OFF the main power when inspecting drive belt tension.
1
2
3
Idler
X frame plate
Driven pulley
Tension adjusting screw
Tension base screw
LM block plate screw
Tension adjusting screw
LA block plate
X-drive motor
44
