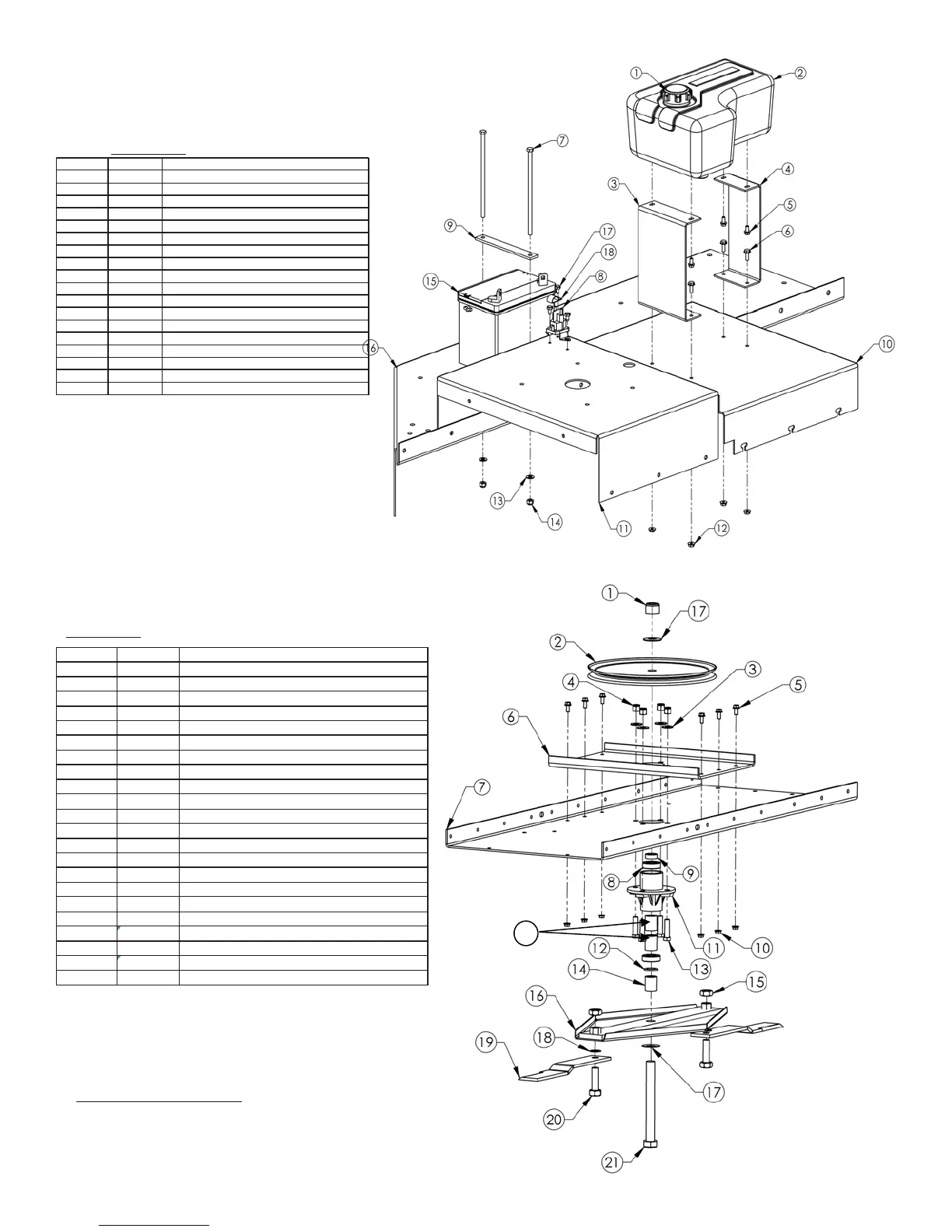

Swisher RTB18552 - BLADE DRIVER ASSEMBLY

FIGURE 4
FIGURE 5
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,TK=TEX.BLACK
GAS TANK ASSEMBLY
12
ITEM NO. PART NO. DESCRIPTION
1
NB612 Nut - Nyloc 1-8 ZY
2
13863 Pulley - 14" X 1" ID; RT52
3
NB555 Washer - USS Flat, 1/2 ZY
4
NB281 Nut - Nyloc 1/2-13 ZY Standard Pattern
5
NB596 Bolt - Serr Flange, 5/16-18 X 3/4 Gr 5
6
13840TC Plate - RT52, Blade Driv er Support
7
13836TC DECK - RT52, CENTER
8
4845
BEARING - BLADE; RT44
9
BB105SL Spacer - Lower For Engine Pulley
10
NB170 Nut - Serr Flange 5/16-18 ZY Case Hrd
11
4858TK Blade Driver Housing
12
NB614HT Washer - 1 X 1 1/2 10GA
13
NB509 Bolt - 1/2-13 X 2 HCC GR5 ZY
14
14318 Spacer - 1" ID x 1.590
15
NB609 Nut - 3/4-10 Nyloc ZY GR2
16
13864TK STUMP JUMPER PLATE WELDMENT; RT-52
17
NB738 Washer - Bllville, 1"ID X 2"OD X 14GA ZY
18
NB179 Washer - 3/4 ID X 1 1/4 OD 18 GA ZY
19
10358 Blade - (off -set) RT44 2005
20
NB611 Bolt - 3/4-10 X 2 1/2 GR8 Alloy ZY
21
13867
Bolt, 1"-8 x 9", GR 8
22 4049 Spacer - Tube, Blade Driver
BLADE DRIVER ASSEMBLY
ITEM NO. PART NO. DESCRIPTION
1 6102NC
Cap - Gas, Black Tank; T60
2 AS100
Tank - Gas, Plastic Black
3
13912* Bracket - Gas Tank, Large
4
13911TC Bracket - Gas Tank
5
NB109 Bolt - Serr Flange, 1/4-20 X 1/2 GR5 ZY
6 NB690
Bolt - Serr Flange, 1/4-20 X 3/4 GR5 ZY
7 NB147
Bolt - 5/16-18 X 7.5 HCC GR2 ZP
8 1002004 Solenoid - 3 Pole
9 14000 Battery - Tie Down
10 13841TC Idler Cover - RT52
11
13868TC Motor Base - RT52
12
NB524 Nut - Serr Flange, 1/4-20 Grade 5 ZY
13 NB275 Washer - SAE Flat 5/16 ZY
14 NB181 Nut - Nyloc 5/16-18 ZY
15 EBAT230 HAZ MAT - DON'T SHIP UPS. Battery 230
16 13961TC Deck - RT52, Left
17 NB161 Screw - HX Tek 14 X 3/4 ZP
18 14316 Clamp - Conduit, 3/8" x 1/4" Hole
22
