16

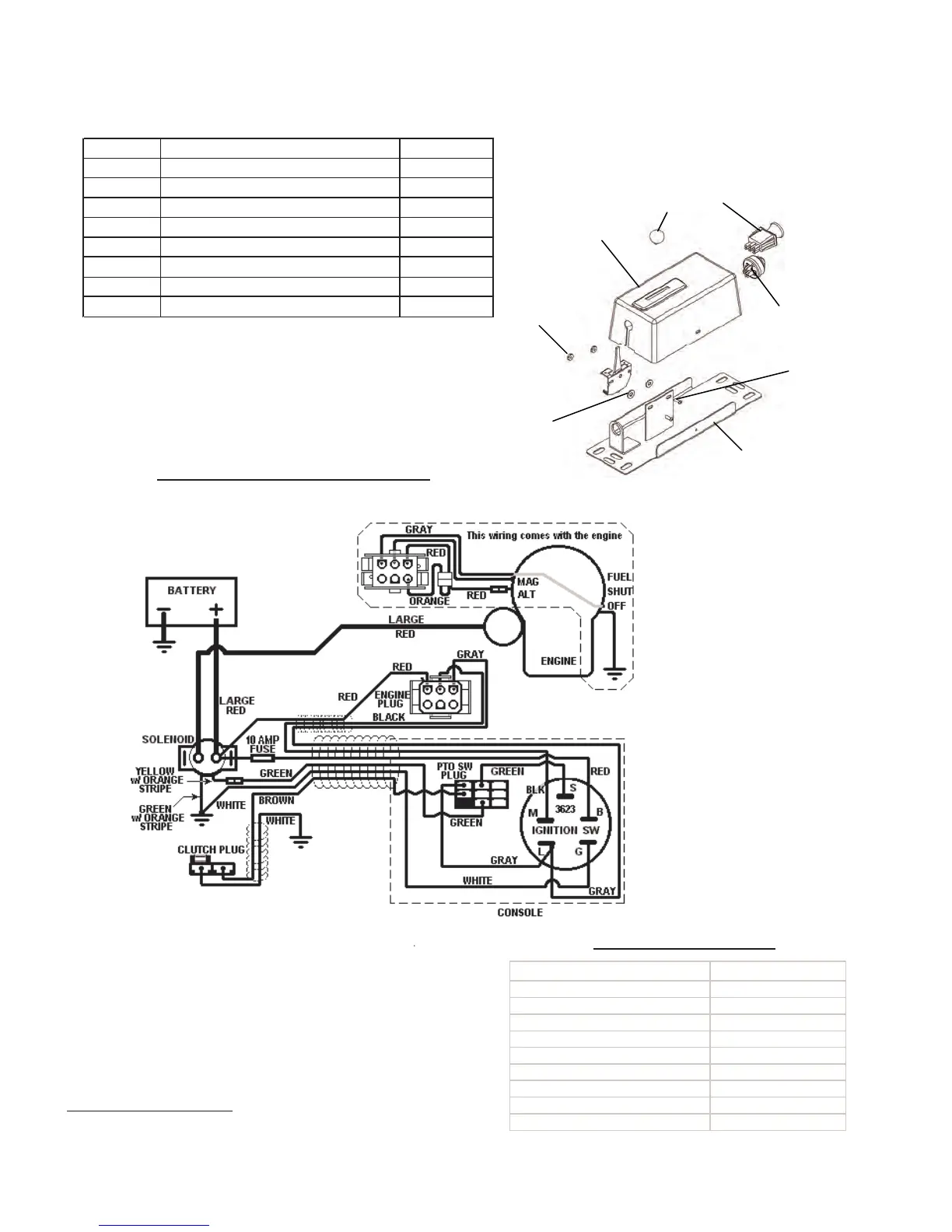

CONSOLE ASSEMBLY
FIGURE 8
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED, TK=TEX.BLACK
26
20
21
22
23
26
27
28
20 THROTTLE KNOB 686K
21 PTO SWITCH 3605
22 KEY SWITCH 3623
23 PLASTIC CONSOLE COVER 686C
CONSOLE ENGAGE 686C mod
24 8-32 X KEP NUT NB201
26 1/4'' SAE WASHER NB274
27 8-32 X 1/2'' PHIL TRUSS NB197
28 CONSOLE PLATE WELDMENT 6108TK
WIRING SCHEMATICS
Description Part #
WIRING HARNESS [BRIGGS] 13927
HARNESS & CONSOLE ASSY 13928
BATTERY [ U 1 R ] SOLD SEPARATELY
BATTERY CABLE- RED BCSR
BATTERY CABLE- BLACK BCLB
SOLENOID 1002004
BATTERY STRAP BHOLD
KEYS KSK
BATTERY CABLE BOOTS BCBT
PARTS NOT SHOWN
