Swisher RTB18552 - Axle Support Assembly; Rear Debris Guard

ITEM NO. PART NO. DESCRIPTION
1
13842TC Front Axle Support - RT52
2
13962TC Weldment - Right; RT52 Deck
3
13961TC Weldment - Left; RT52 Deck
4
NB170 Nut - Serr Flange 5/16-18 ZY Case Hrd
5
13844TC Rear Axle Support - RT52, Left
6
NB596 Bolt - Serr Flange, 5/16-18 X 3/4 Gr 5
7
13843TC Rear Axle Support - RT52, Right
8
13836TC Deck - RT52; Center
9 13992TC Angle - Deck Support; RT52

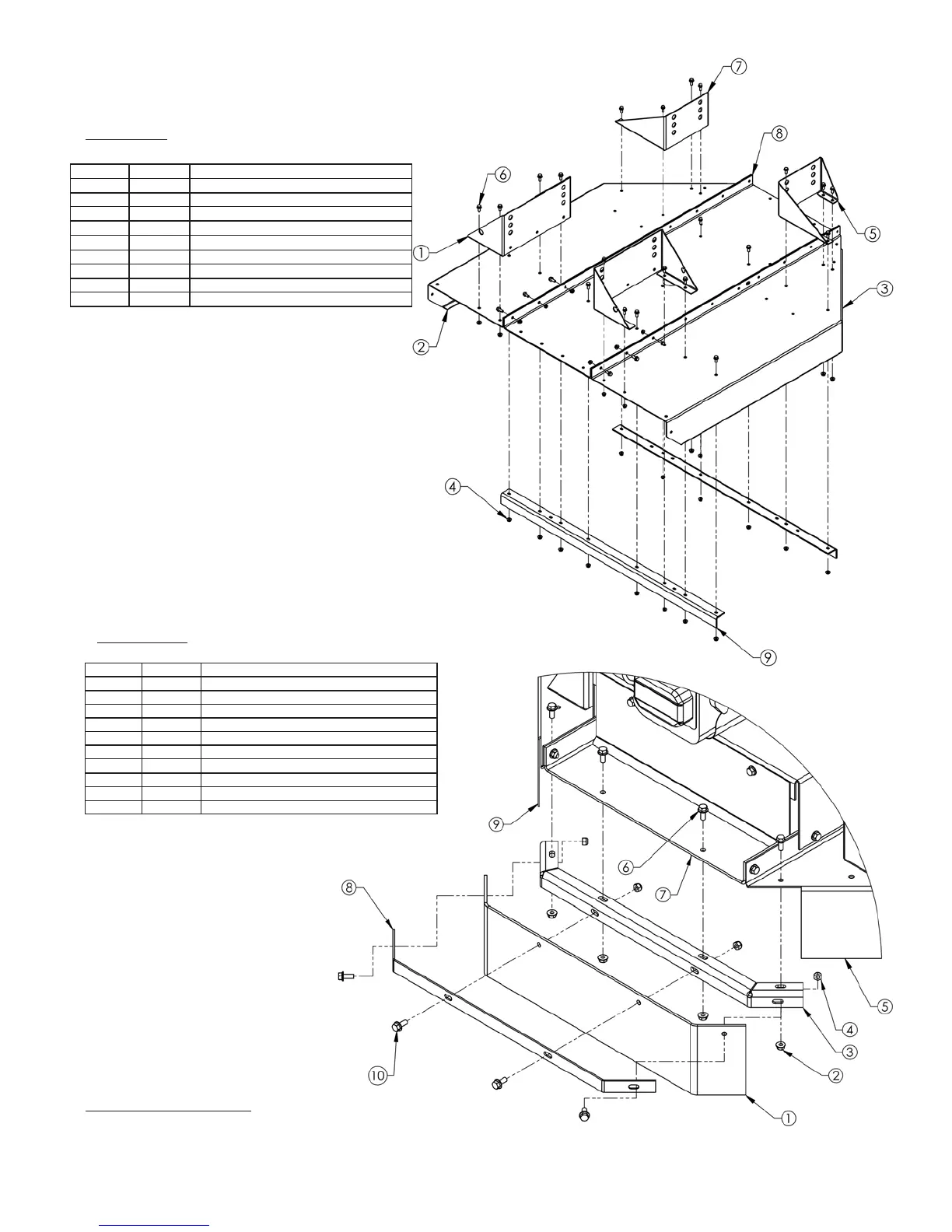

AXLE SUPPORT ASSEMBLY
FIGURE 8
REAR DEBRIS GUARD
FIGURE 10
ITEM NO. PART NO. DESCRIPTION
1
13859TC Rear Debris Flap
2
NB170 Nut - Serr Flange 5/16-18 ZY Case Hrd
3
13858TC Rear Flap Support
4
NB181 Nut - Nyloc 5/16-18 ZY
5
13962TC Weldment - Right; RT52 Deck
6
NB596 Bolt - Serr Flange, 5/16-18 X 3/4 Gr 5
7
13836TC Deck - RT52; Center
8
13860TK Clamping Plate - Rear Debris Guard; RT52
9
13961TC Weldment - Left; RT52 Deck
10 10548TK Bolt - Serr Flange, 5/16-18X1GR5 ZY
15
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,TK=TEX.BLACK
