Swisher RTB18552 - Cover - Guard Assembly; Axle - Wheel Assembly

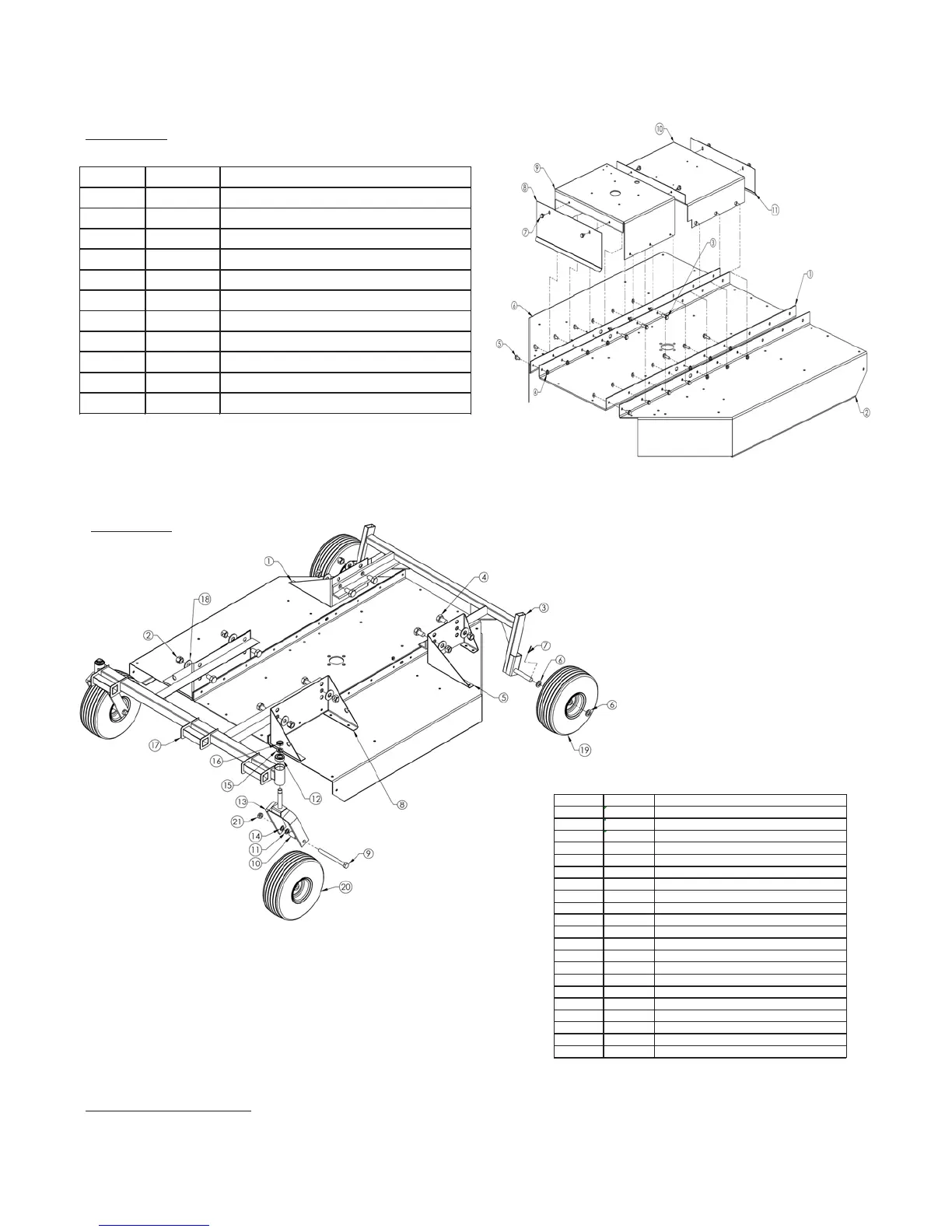

COVER – GUARD ASSEMBLY
FIGURE 8
ITEM NO. PART NO. DESCRIPTION
1
13836* Deck - RT52; Center
2
13962* Weldment - Right; RT52 Deck
3
NB253 Bolt - Serr Flange, 5/16-18 X1 1/4ZY Gr5
4
NB170 Nut - Serr Flange 5/16-18 ZY Case Hrd
5
NB596 Bolt - Serr Flange, 5/16-18 X 3/4 Gr 5
6
13961TC Weldment - Left; RT52 Deck
7
26X249 Screw - .312-18X.75
8
13871* Cover - Engine Pulley; RT52
9
13868* Motorbase Weldment - RT52
10
13841* Idler Cover - RT52
11
13870TC Cover - Stump Jumper Pulley; RT52
ITEM NO.
PART NO.
DESCRIPTION
1
13843
Rear Axle Support - RT52, Right
2
13997
Nut - 3/4-10; 2 Way Locking
3
13845
Rear Axle Weldment; RT52
4
13862
Bolt; 1 1/4"-10 x 1; GR 8
5
13844
Rear Axle Support - RT52, Left
6
NB184Z
Washer - 3/4ID X 1 1/4OD 10 GA.
7
NB126
Pin - Cotter, 1/8 X 1, Crbn Stl Ext Prng
8
13842
Front Axle Support - RT52
9
NB624
Bolt - 5/8-11 X 7 HCC GR5 ZY
10
663L
Spacer
11
NB178
Washer - 5/8 ID X 1 OD 10 GA ZY
12
B98
Bearing - Blade
13
665TC
Caster - Text Red; T50
14
NB178
Washer - 5/8 ID X 1 OD 10 GA ZY
15
NB195
Washer - 13/16 X 1 1/4 X 1/8 ZY; Mild
16
NB122
Nut - Jam, Nylok 3/4-16 ZY Gr2
17
13851
Front Axle Weldment; RT52
18
NB146
Washer - SAE 3/4 ZP
19
14314
Tire - Rear, 13/500, 3/4 BB, Hollowmatic
20
14313
Tire - Front, 13/500, 5/8 BB, Hollowmatic
21
NB595
Nut - Lock Jam, 5/8-11 2 Way Grade A
14
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,TK=TEX.BLACK
AXLE - WHEEL ASSEMBLY
FIGURE 9
