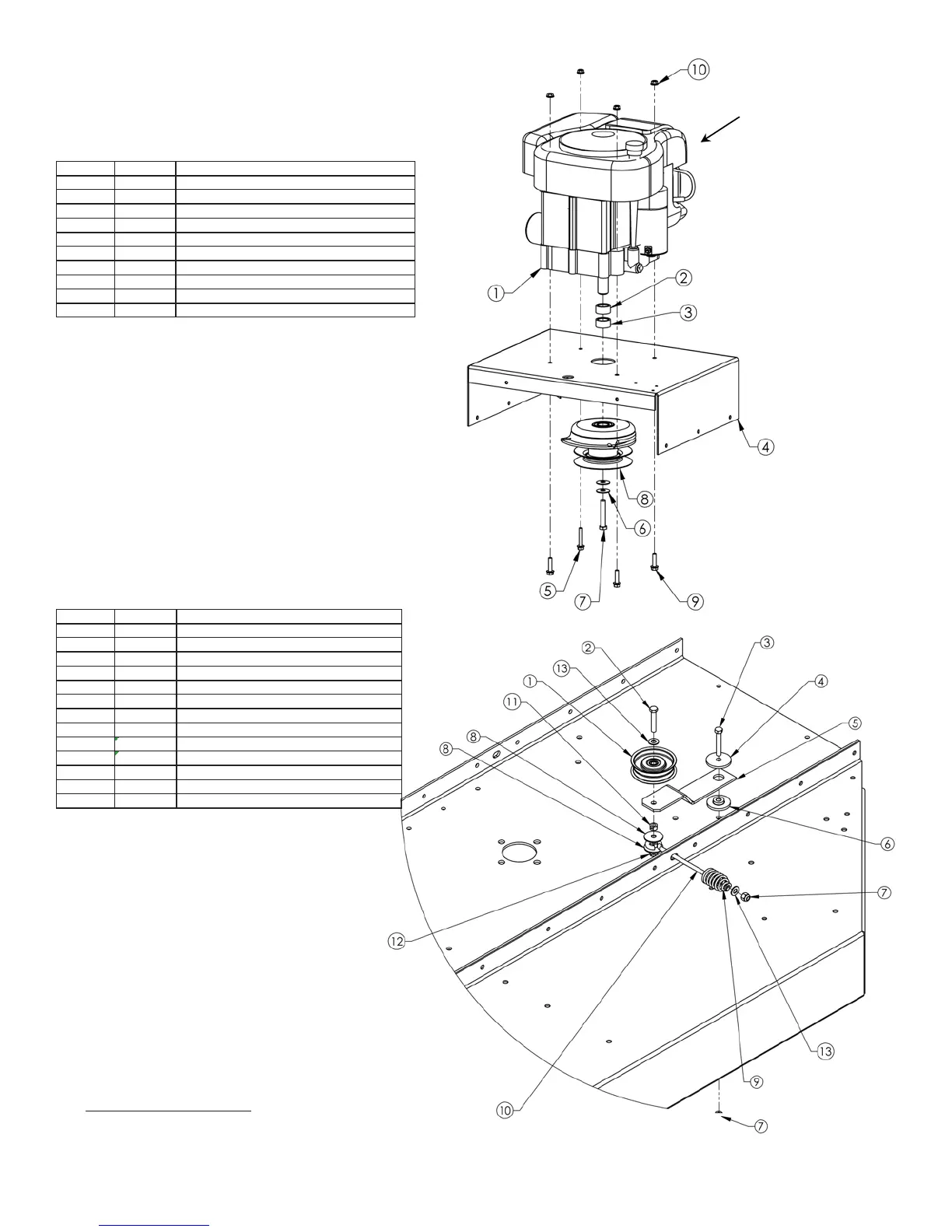

Swisher RTB18552 - ENGINE, CLUTCH ASSEMBLY; BELT ENGAGE CONFIGURATION

FIGURE 6
FIGURE 7
ENGINE, CLUTCH ASSEMBLY
ITEM NO. PART NO. DESCRIPTION
1
EBS18.5 Engine - B&S 18.5 Intk W/Fltr&Prss. Lub.
2
689S Spacer - Short, Engine Pulley, .687
3
689S Spacer - Short, Engine Pulley, .687
4
13868TC Motorbase Weldment - RT52
5
NB253 Bolt - Serr Flange, 5/16-18 X1 1/4ZY Gr5
6
699
Washer - Belleville 7/16 X 1 1/4
7
NB685 Bolt - 7/16-20 X 2 1/2 HCS GR5 ZP NYLOC
8
3813
Clutch - Electric; ZTR 50
9 NB253 Bolt - Serr Flange, 5/16-18 X1 1/4ZY Gr5
10 NB170 Nut - Serr Flange 5/16-18 ZY Case Hrd
NOT ACTUAL
ENGINE USED
(REF. ONLY)
BELT ENGAGE CONFIGURATION
13
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,TK=TEX.BLACK
ITEM NO. PART NO. DESCRIPTION
1
B527 Pulley - Idler, OD-3.25", ID-3/8"
2
NB693 Bolt - HTC, 3/8-16 X 2 1/4 GR5 ZY
3
NB618 Bolt - 3/8-16 X 1 1/4 GR5 ZY
4
6040 Washer For Idler
5
13876TK Idler Arm - RC52
6
6037 Bushing - Idler
7
NB182 Nut - Nyloc 3/8-16 ZY
8
10177
Washer - Fender 3/8X1 1/2, Crbn Stl GR 2
9
3609 Spring - Tapered
10
10546 Eyebolt - Turned 3/8-16 X 5 ZY STD
11
NB280 Nut - 2 Way Lock 3/8-16 ZY&Wax Gr A
12
NB207 Nut - Jam, Nylok 3/8-16 ZY
13
NB272
Washer - SAE Flat 3/8 ZY Carbon Steel
