Swiss Timing StartTime V - System Connection Overview; Detailed System Wiring Diagram

ELECTRONIC START SYSTEM / E-GUN & StartTime V
Version 1.2 3481.560.02 Page 7
2 INSTALLATION
2.1 Connecting the installation
Connections have to be made at the front of the StartTime V. Some connections are mandatory and some depend on
the use:

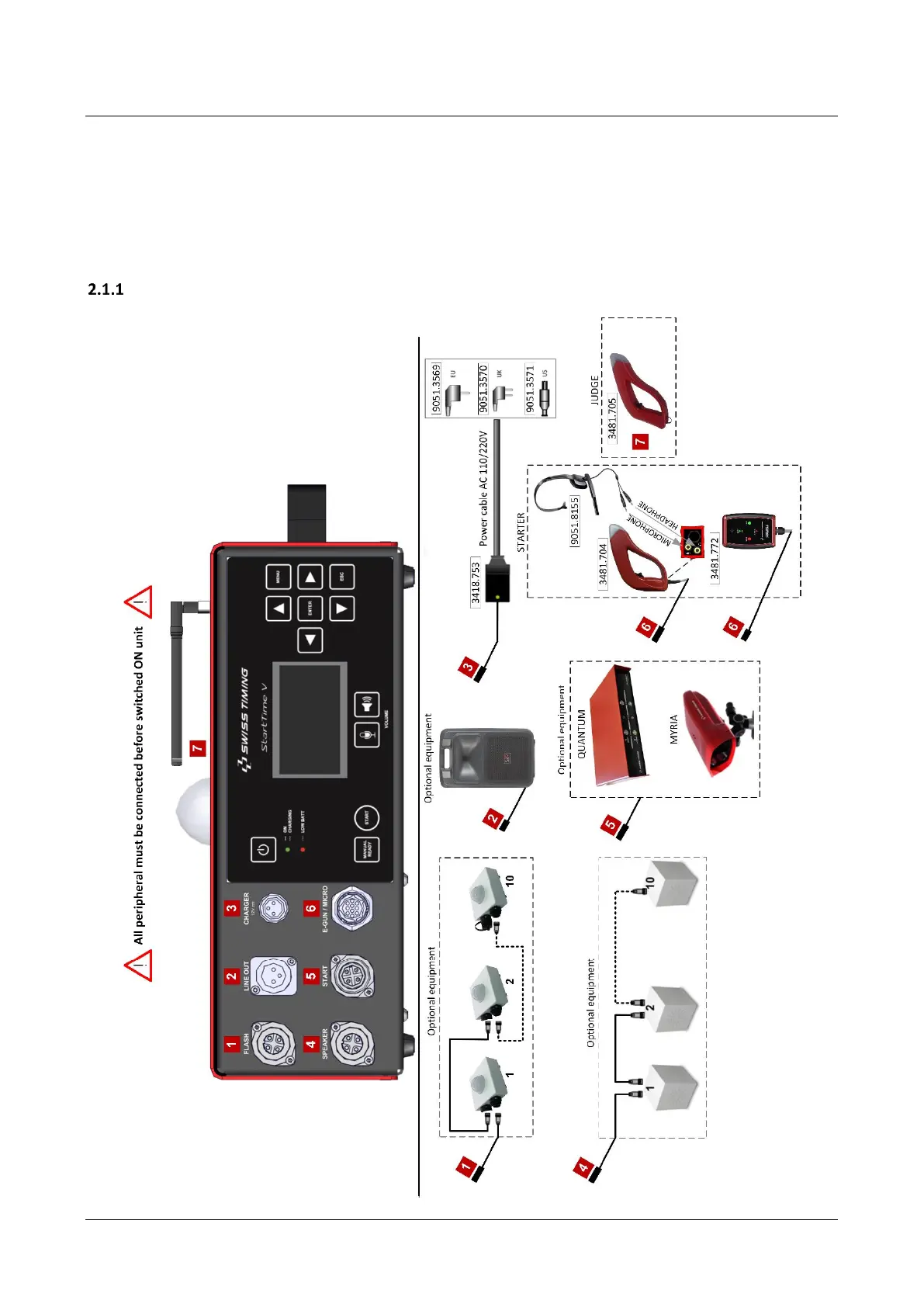

Connections overview
