User can set function Keys F1
～
F4 as “Freeze Frame” to turn on or off this function
R/G/B/Mono
R/G/B/Mono is to display only the blue/red/green primary signal or the luminance signal only so as
to monitor the image noise.
User can set function Keys F1
～
F4 as “R/G/B/Mono” to turn on or off this function.
False Color
The false color is used to aid in the setting of camera exposure. Under false color mode, there’s a
color chart on the bottom of screen for reference. The color from the dark to the bright will be
displayed as blue, cyan, green, yellow, orange and red in a consecutive way. User can set
function Keys F1
～
F4 as “False color” to turn on or off this function.
AFD
（
（（
（
SDI
）
））
）
It is the abbreviation of active format description. AFD is to display the SDI embedded AFD
information graphically on the screen.
H/V Delay (SDI)
Under SDI input, H/V Delay can be used to display line/field blanking signal, and to observe the
horizontal and vertical synchronous signal.

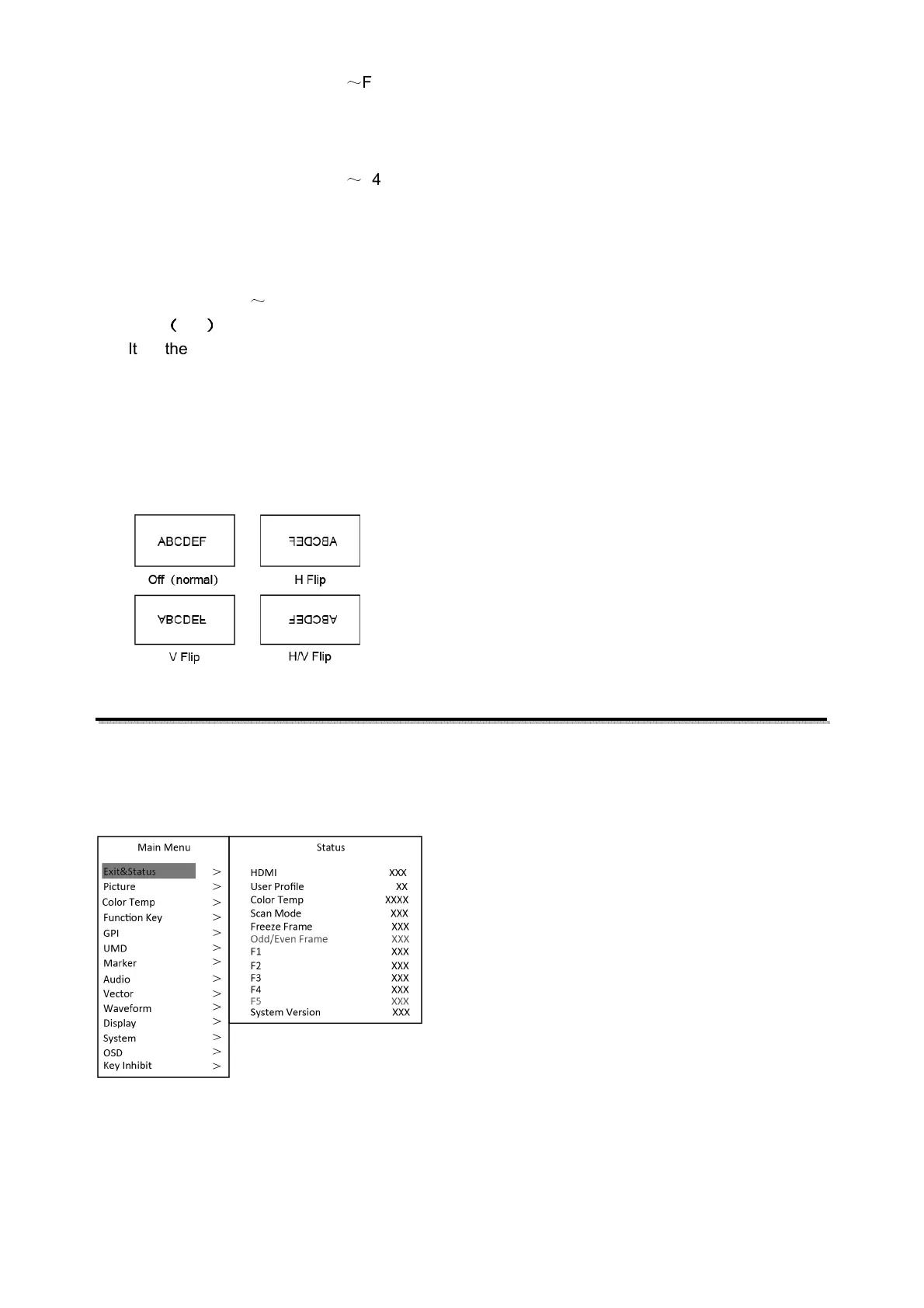

Image flip
Horizontal, vertical, horizontal and vertical two-way image flip function.
Main menu
S-1073F has OSD to adjust the parameters and settings, for example: Picture, color temp.,
function keys, etc.
1. Press “MENU” button, the main menu will popup from the left top of the screen. The selected main
menu highlights in yellow.
2. Revolve “MENU” to select submenu, the selected submenu highlights in yellow, press “MENU” to
apply and enter into the selected submenu’s items.
3. Revolve “MENU” to select the item which needed to adjust, press “MENU”, the selected item and its
parameters will be highlighted in yellow.
To Next Page
