Switchcraft StudioPatch Series - DB25 Connector Pinout Diagram

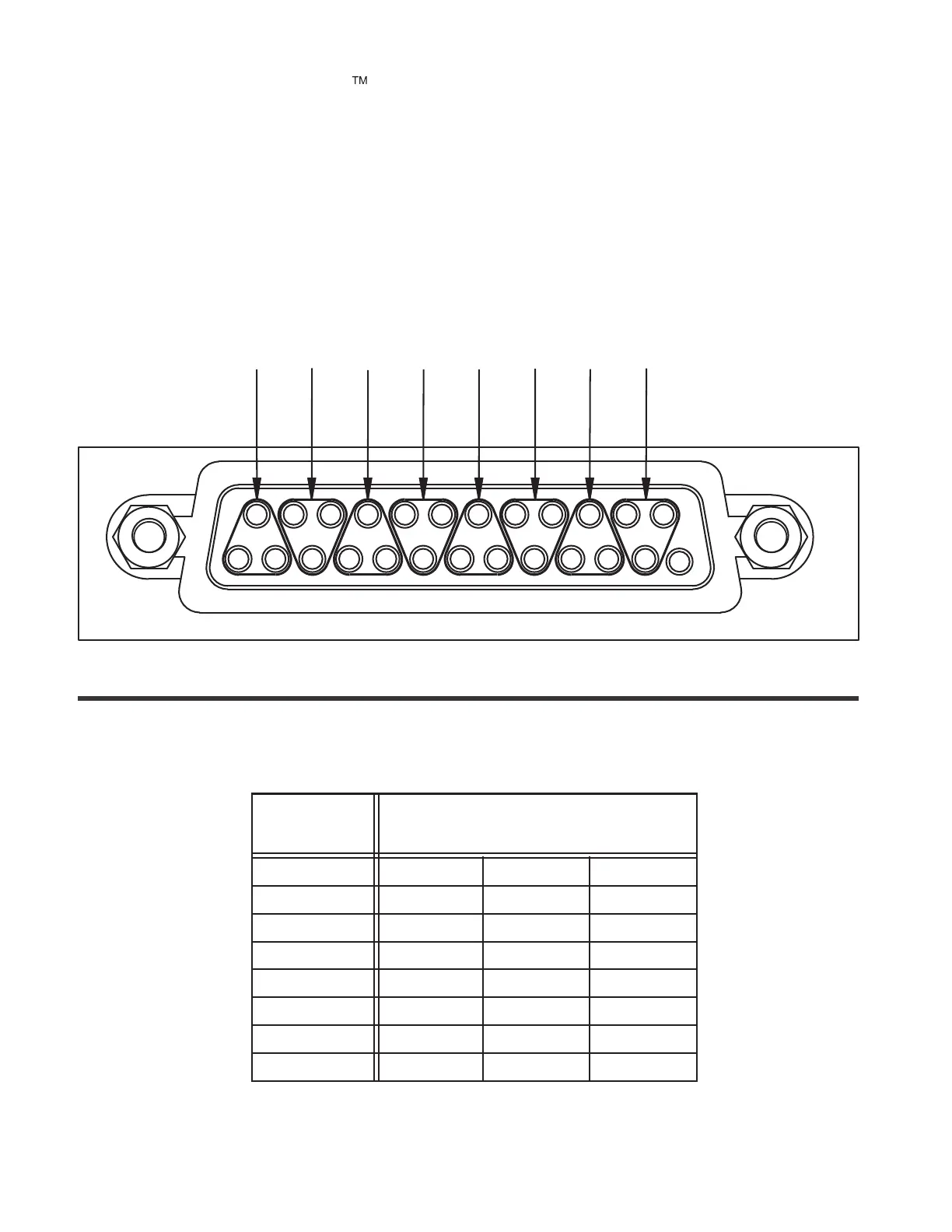

StudioPatch Series 6425/9625 DB25
Connector Pinout
DB25 Wiring Chart
18
CHANNEL 8 CHANNEL 7 CHANNEL 6 CHANNEL 5 CHANNEL 4 CHANNEL 3 CHANNEL 2 CHANNEL 1
14 15 16 20 21 22 24 252317 18 19
1 2 3 7 8 9 11 12 13104 56
Jack Tip Ring Sleeve
(Channel) (White) (Black) (Bare)
1 24 12 25
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2
