Switchcraft StudioPatch Series - Cannon DL Connector Pinout Diagram (Studiopatch Series 96 DL)

19

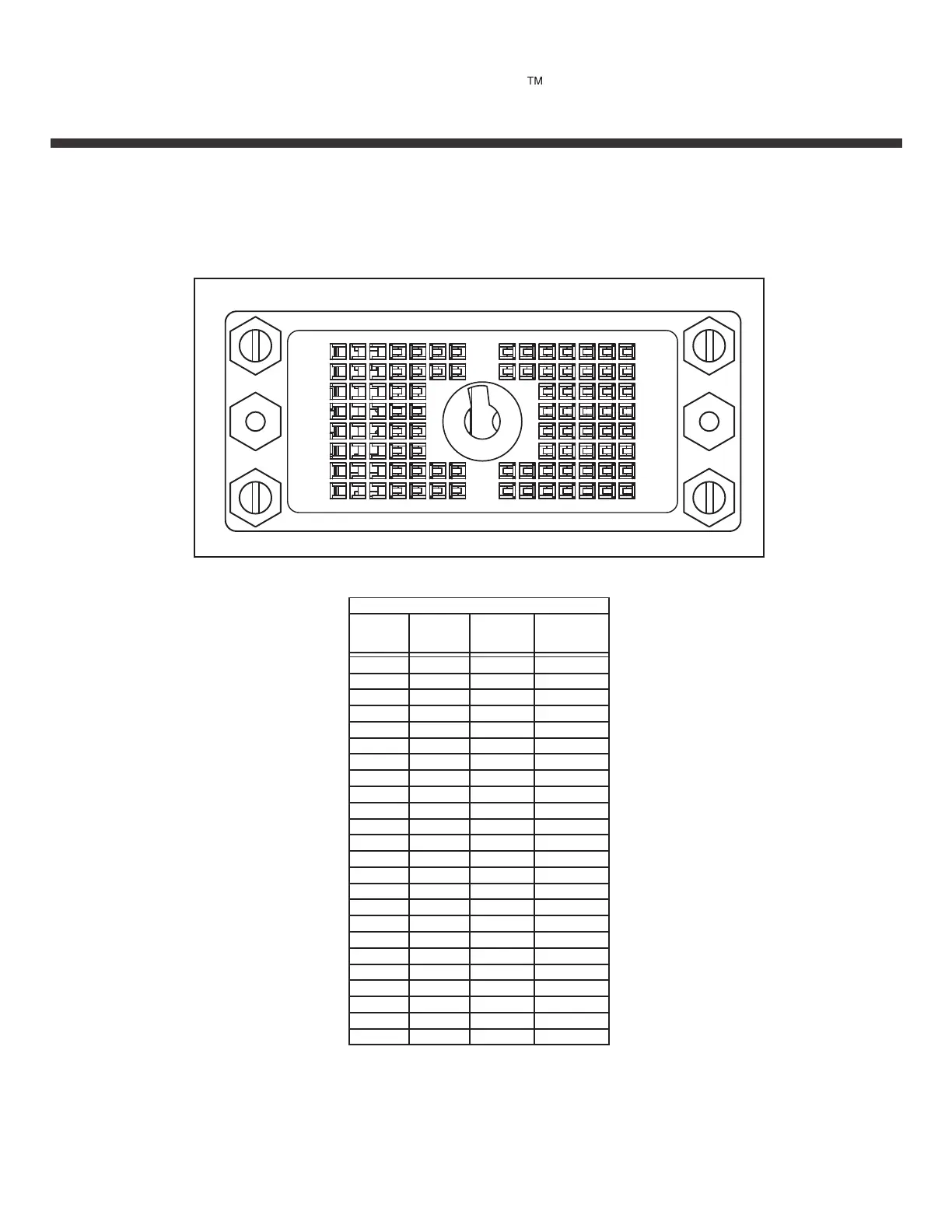

StudioPatch 96DL
The StudioPatch Series 96DL is a professional TT, 48 channel audio patchbay. It has all of the same features as
the StudioPatch 9625. The only difference, however, is that the rear I/O section consists of four Cannon DL
style connectors. Below, is the Cannon DL pinout and wiring chart used for the StudioPatch Series 96DL.
7
1 2 7 85 63 4 1
A B
C D
E
F
G
H
IJ
K
L
M
N
P
2 7 85 63 4
JACK NO TIP RING SLEEVE
1 A1 B1 C1
2 A2 B2 C2
3 A3 B3 C3
4A4B4 C4
5A5B5 C5
6A6B6 C6
7A7B7 C7
8A8B8 C8
9D1E1 F1
10 D2 E2 F2
11 D3 E3 G1
12 D4 E4 G2
13 D5 E5 G7
14 D6 E6 G8
15 D7 E7 F7
16 D8 E8 F8
17 L1 K1 J1
18 L2 K2 J2
19 L3 K3 H1
20 L4 K4 H2
21 L5 K5 H7
22 L6 K6 H8
23 L7 K7 J7
24 L8 K8 J8
WIRING CHART
Wiring Notes:
1) Pinouts repeats for each set of 24 jacks and for both input and output.
2) All grounds (sleeves) bussed together
