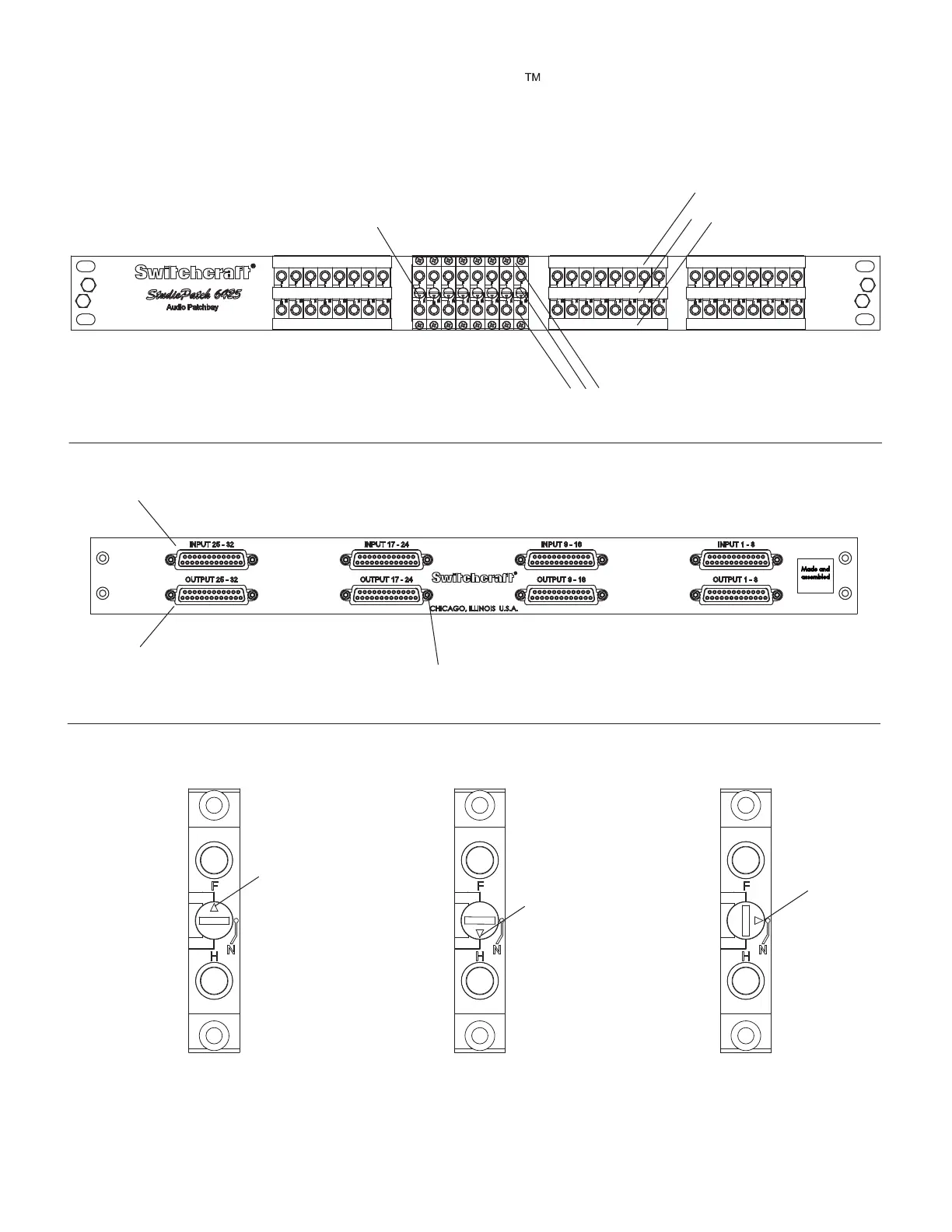

Four Female DB25 (Inputs)
4-40 Threads
Front View
Four Female DB25 (Outputs)
Designation Marking Strips (White)
and clear covers
Desginations Strips Removed
Normalling Screw
Rear View
Normalling Positions
Full Normal Position Half Normal Position Non-Normal Position
Arrow points at
12:00 position
Arrow points at
6:00 position
Arrow points at
3:00 position
Note: Do not rotate screw counter-clockwise from left of "F" and left of "H"
4
in USA
StudioPatch 6425
