EN - 34
CHAIN/FRONT SPROCKET/REAR SPROCKET
WEAR CHECK

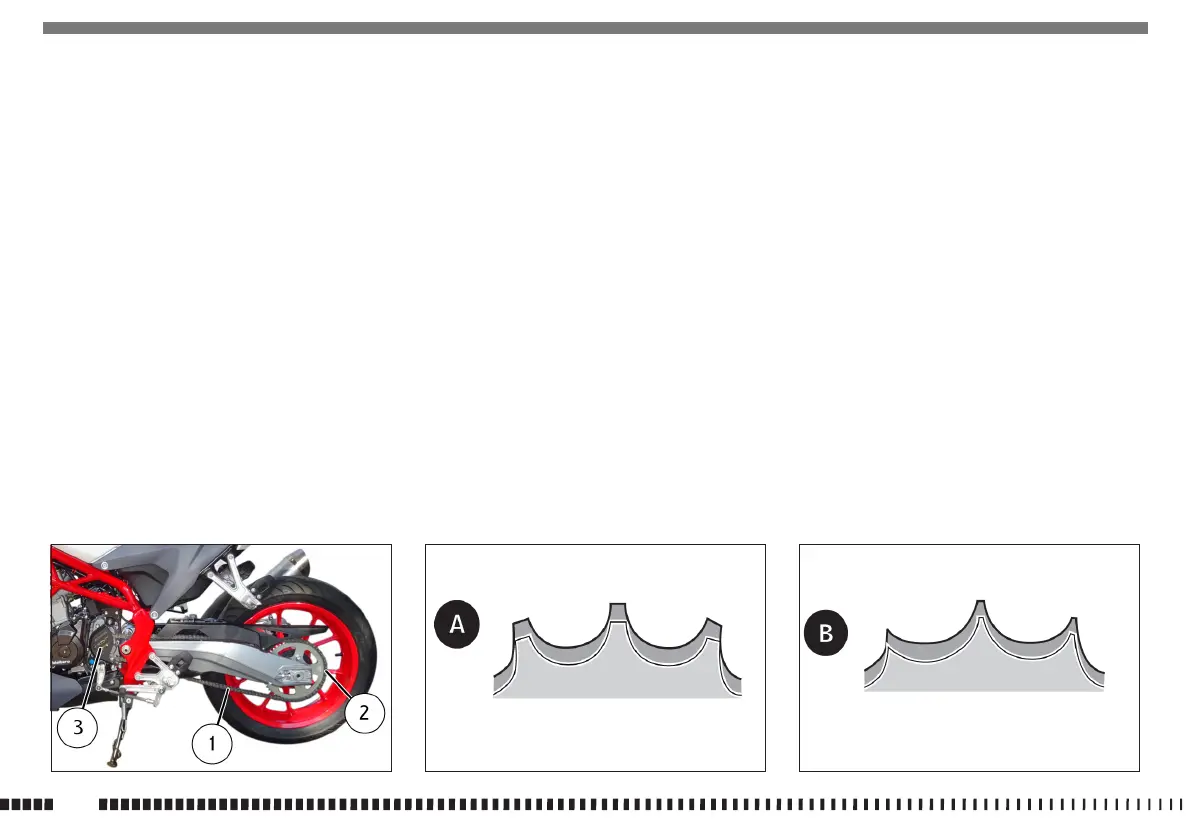

- Check the condition of the chain (1); there may not
be any damaged rollers, loosened pins or missing
O-rings.
- Check the condition of the front (3) and rear (2)
sprocket teeth; if the teeth are as shown in Figure A,
they are in good condition, while if they are as shown
in Figure B, they should be replaced.
Note
If worn out, the front and rear sprockets and the
chain have to be replaced; using a new chain with
worn out front and rear sprockets will rapidly wear
out the chain.
NORMAL
(GOOD CONDITION)
WORN
(REPLACE)
