EN - 42
FUSES
Fuse malfunction could cause problems to the
motorcycle.

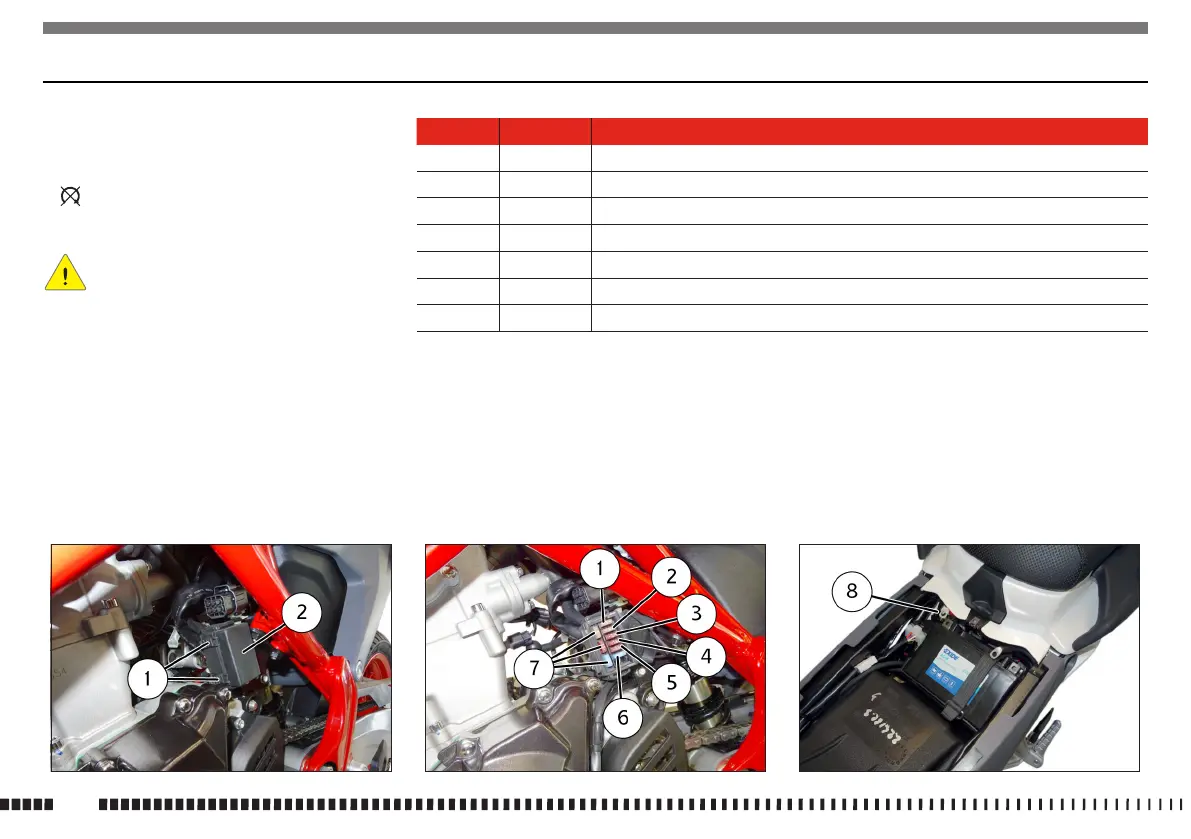

To access the fuse box, remove the side locking devices
(1) and open the protective door (2).
Before operating on the fuses, set the ignition switch
to position and remove the key in order to prevent
short circuits.
CAUTION
Do not use fuses with a dierent capacity
from the original one
FUSE AMPERE PROTECTION
1 5A ECU & Speed Gauge
2 5A Lights
3 7.5A Main protective fuse
4 7.5A
Cooling fan
5 7.5A Main protective fuse
6
15A Power Relay (fuel pump, bypass valve, injector, coil, Lambda sensor)
7 5A-7.5A-15A Spare fuses
Fuse table
Two fuses (8) are present under the rider seat, that
protect the battery charge generator and the charge
socket under the passenger seat, respectively.
