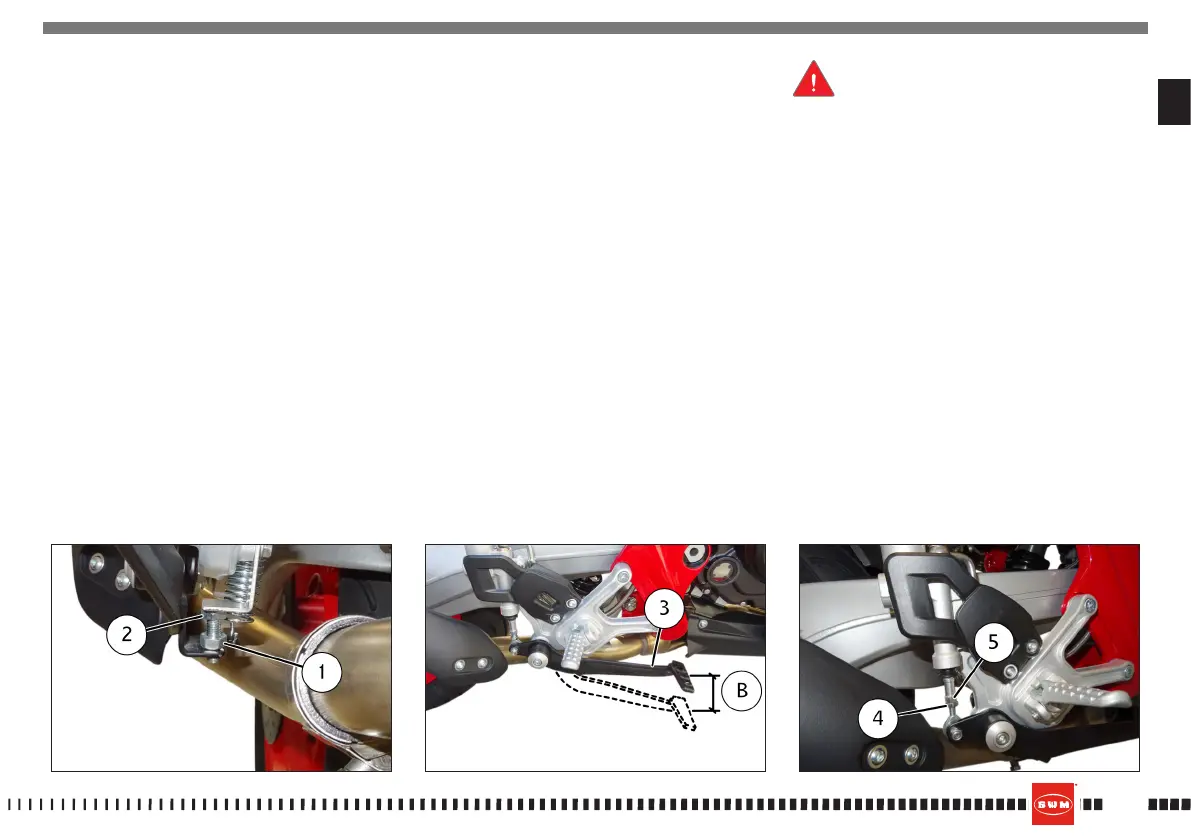

REAR BRAKE PEDAL POSITION ADJUSTMENT
The position of the rear brake pedal with respect to the
footrest may be adjusted according to the individual
needs.
To adjust, proceed as follows.
- loosen the nut (1);
- act on the screw (2) to adjust the pedal position (3).
Once this adjustment is completed, adjust the free play
of the pedal as follows.
REAR BRAKE PEDAL FREE PLAY ADJUSTMENT
The rear brake pedal (3) must have a free play (B) of 3
mm (0.12 in.) before the braking action starts.
To adjust, proceed as follows:
- loosen nut (4);
- operate the pump rod (5) to increase or decrease the
free play;
- tighten nut (4) at the end of the operation.
WARNING
In the absence of the required free play,
the brake pads will rapidly wear, resulting
in the risk of TOTAL BRAKE INEFFICIENCY or
rear brake lock.
