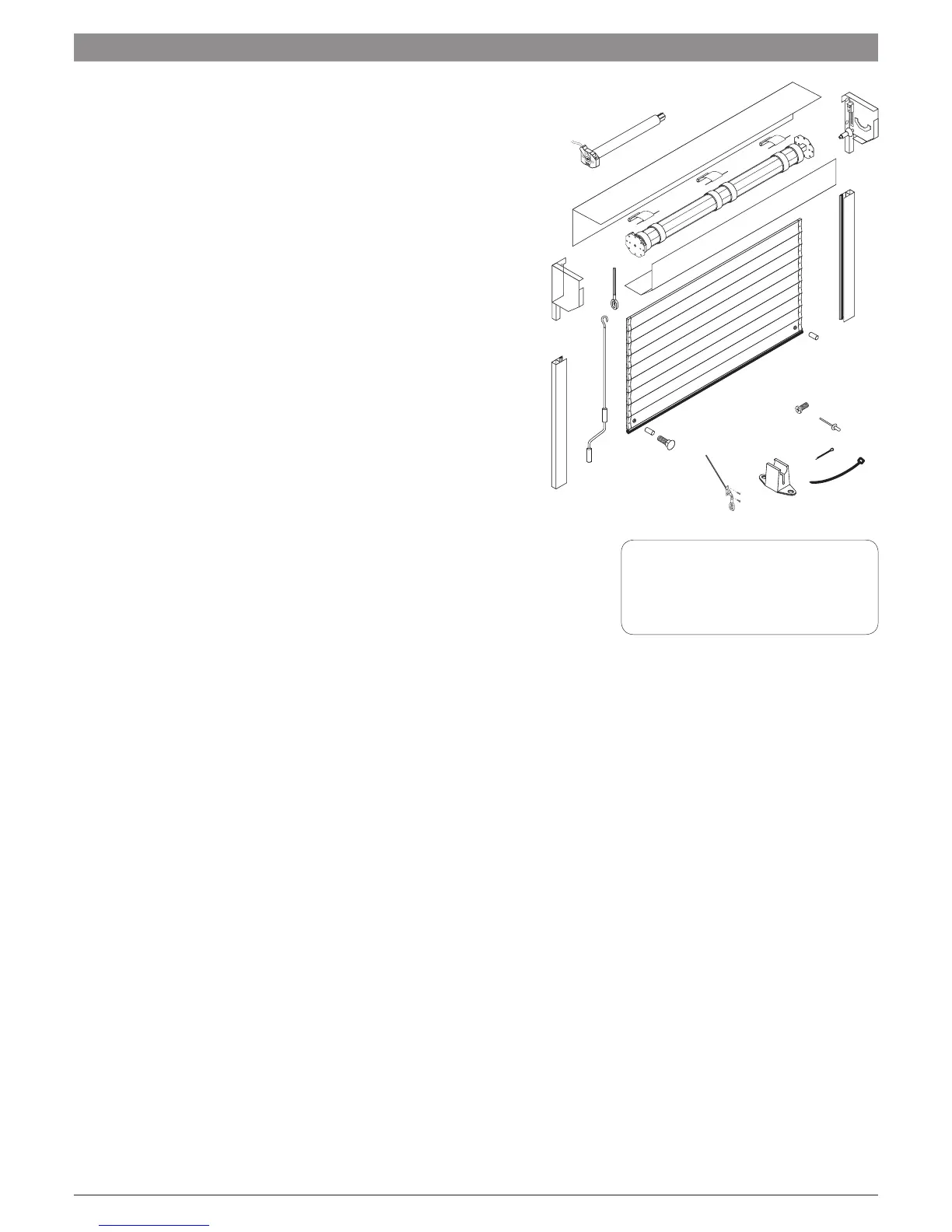

ELECTRIC ROLLER GARAGE DOOR COMPONENTS
01A. Optional 90 Degree Fascia
01B. Optional 45 Degree Lid
02. Motor (fitted into axle)
03. 102mm Round Axle
04. Locking Collars (fitted to axle 6 no. up to 2.5m, 8 no. up to 3.5m
10 no. over 3.5m)
05. Dummy End or Spring
06. 6 X no. 8 X 3⁄8 Pan Head Screws *
(for securing octagonal fixing plates
In mounting bracket, see component 7)
07. Dummy End Octagonal Fixing Plate
(secured to shaft by split pin – see component 29)
08. Motor Octagonal Fixing Plate (bolted to motor)
09. Attachment/Locking Arm (1 no. L/H 1 no. R/H complete with
locking bolt and lock nut, 1 – 3 no. intermediate)
10. R/H End Plate
11. L/H End Plate
12. Guide Roller (fitted to end plates with star clinch lock washer)
13. Mounting Bracket (fitted to end plates)
14. Guide Rails
15. Brush Insert (Fitted To Guides)
16. Curtain
17. Top Slat (fitted to door curtain)
18. Polyester Webbing Strip (fitted to curtain)
19. 8 X 1/2 Flange Head Self Tapping Screw (securing webbing to curtain)
20. Bottom Slat (fitted to curtain)
21. Rubber Seal (fitted to bottom slat)
22. Rigid Override Eye (inc. Allen cap screw & washer) or Drop Eye
Joint (if 350mm end plates are required) *
23. Crank Handle
24. Stop Blocks * (for fitting to bottom slat)
25. 2 No. M6 Nuts (inserted in bottom slat for securing stop blocks)
26. 2 No. M6 X 30 Bolts * (for fixing stop blocks)
27A. 7 No. 4.8mm X 9.3mm X 12mm Pop Rivets
* (for securing axle collars)
27B. 3 No. 8 X 1/2 Flange Head Self Tapping Screws
* (for securing webbing strips to curtain)
28. Crank Handle Clip *
29. 1 X 60mm Split Pin (to secure the octagonal fixing plate to the dummy
end/ spring shaft)
30. 3 X Cable Ties * (for securing motor cable to end plate)
* Supplied In Accessory Pack.
2
4
3
8
11
13
14
9
18
19
15
20
23
24
25
21
12
10
7
5
6
28
29
27
26
30
16
17
22
1b
22
1a
Recommended Fixings (not supplied)
12 x 1” Self Tapping Screws for Steel
12 x 2 1⁄2” Countersunk Screws for
Masonry and Wood
