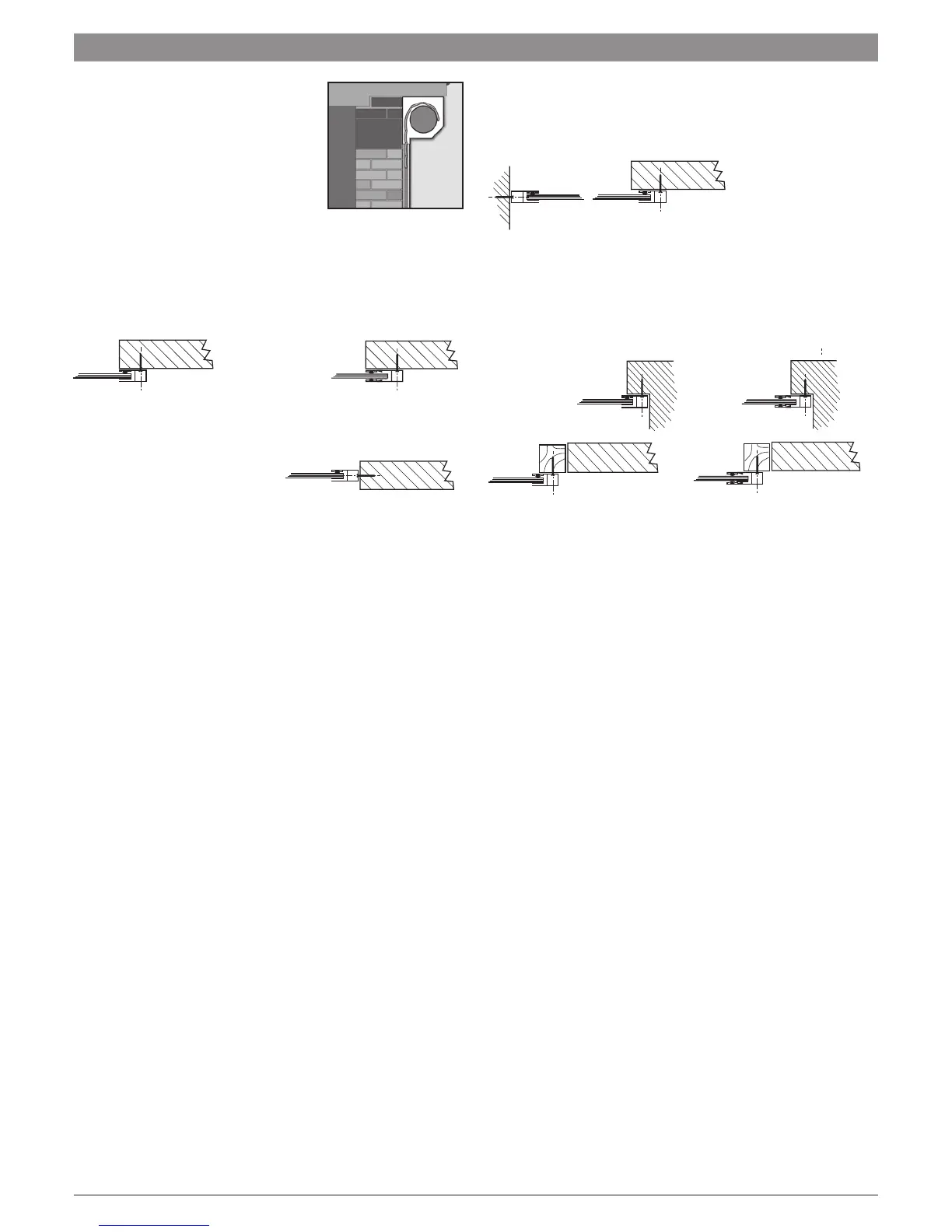

ALTERNATIVE INSTALLATION OPTIONS (NOT COMPLIANT WITH LPS 1175)
External installation
The door can be installed externally if
compliance with LPS 1175 is not required.
Please note the remote control receiver
unit and the bottom slat safety edge
transmitter must be installed internally
and not exposed to the elements.
Face fit
75mm guide rails can be used if compliance with LPS 1175 is not
required.
Reveal fit
If compliance with LPS 1175 is not
required 75mm guide rails can be
fitted within the reveal.
Combination of face and reveal fit
In this situation one guide rail is reveal fitted and the other
guide rail is face fitted.
Undersize face fit
In this situation the guide rails are face fitted but they will
protrude into the opening. This installation will not be
compliant with LPS 1175.
75mm
90mm75mm
75mm
90mm
75mm 90mm
