06. FITTING EMERGENCY OVERRIDES
A) Standard Manual Override
If this door has end plates that are not fitted above the opening and it is compliant with
LPS 1175 then a plastic tube must be fitted over the rigid eye before it is inserted into the
motor and secured in place.
i. Insert override eye through hole in motor adjacent to limit adjusters
ii. Insert and tighten the holding screw and washer from above
iii. Hook crank handle to eye
iv. Secure clear of shutter with crank handle clip
B) Optional external low level override
Detailed installation instructions are supplied in the low level override kit.
The external low level override is not compliant with LPS 1175, a battery backup must be ordered when required.
Standard
Manual
Override
1
Left Hand viewed
from centre of door
2 3
Right Hand viewed
from centre of door
Right Hand viewed
from centre of door

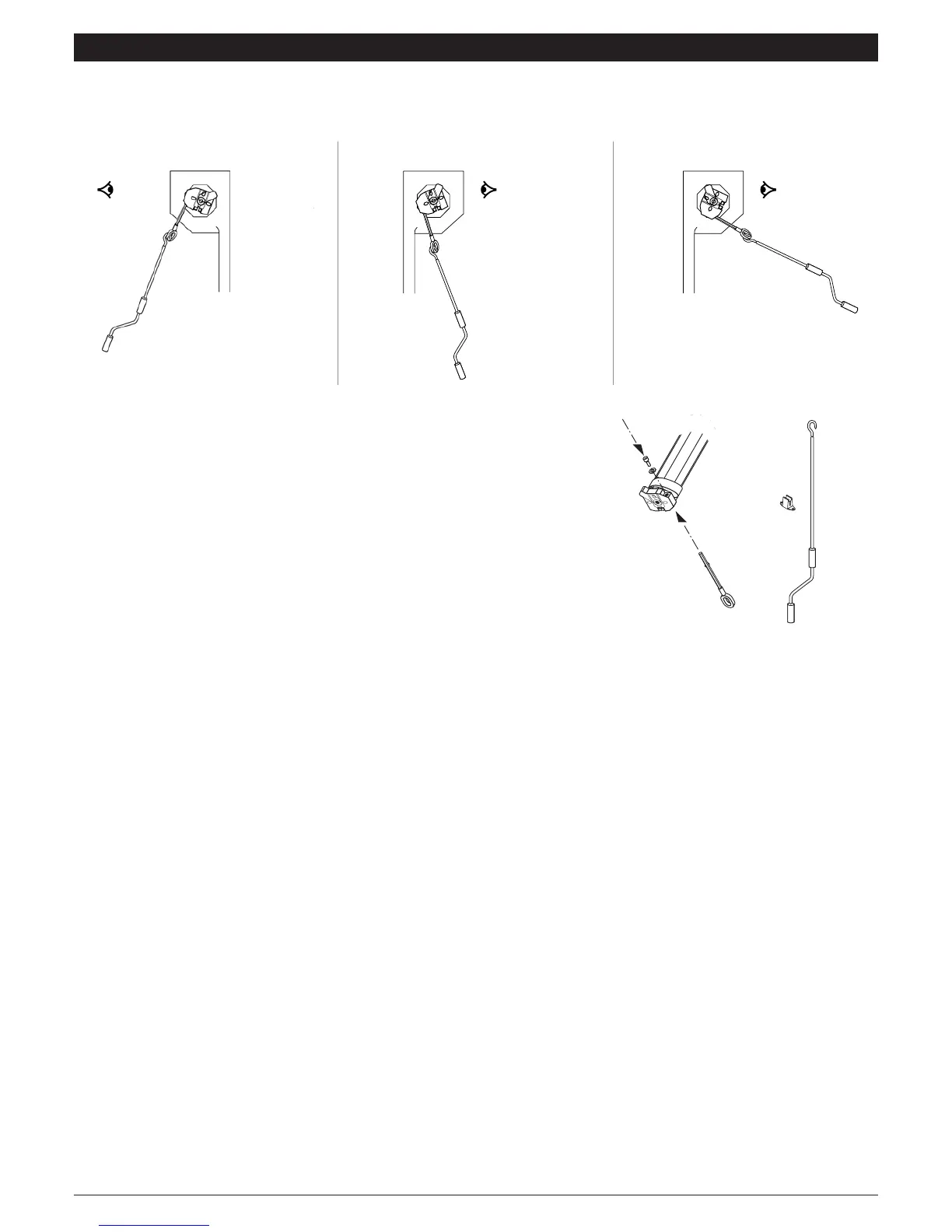

Possible Override Exit Options
N.B. We recommend override exits 1 or 2 shown below as option 3 will be more difficult to operate.
