Swytch eBike Conversion Kit - Page 19

Installation
19
1.

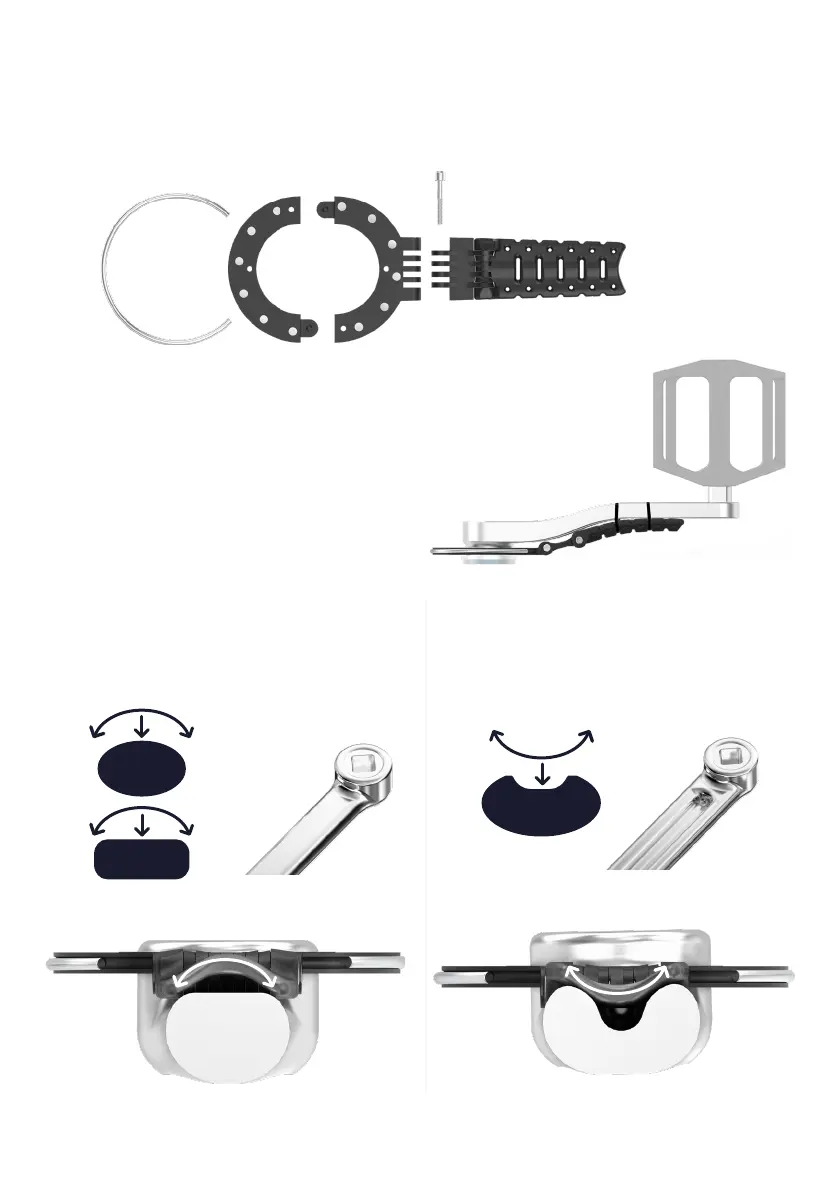

Check your pedal arm
Universal Magnetic Disc Regular
Determine which way round you’ll need
to fit your magnetic disc arm based on
the shape of your pedal arm.
1.1
A.
B.
Magnetic disc
Arm
Bolt
Retention ring
Indented pedal arm
The magnetic disc arm matches the
curve of the indent.
Round or Flat pedal arm
The magnetic disc arm curves
around your flat or round pedal arm.
ROUND
Pedal Arm
INDENTED
Pedal Arm
INDENTED
Pedal Arm
FLAT
Pedal Arm
FLAT
Pedal Arm
