Installation
20
2. Fit your universal magnetic disc together
Loosely tighten the bolt onto the arm
using a 2.5mm Allen key, using the diagram
below.

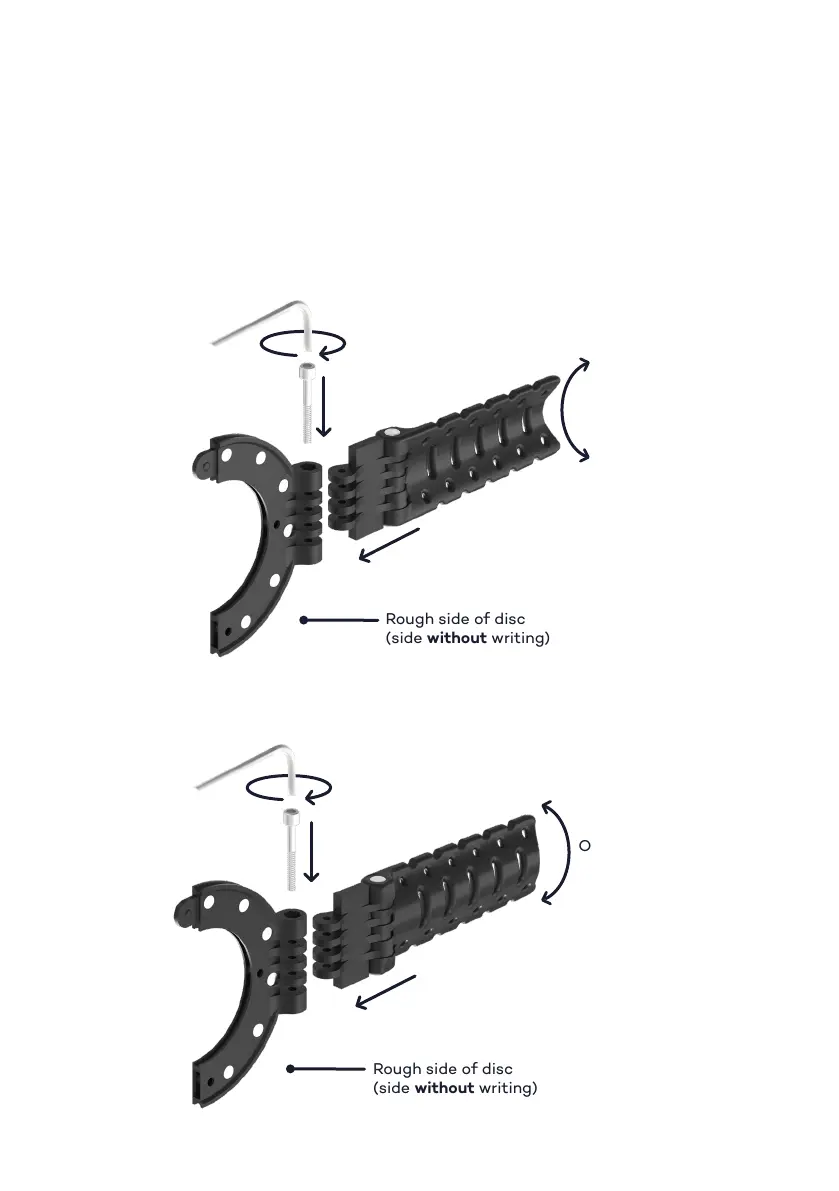

2.1
A.
B. Indented pedal arm
configuration
Round or flat pedal arm
configuration
Allen key
Rough side of disc
(side without writing)
Outer curved arm
Allen key
Rough side of disc
(side without writing)
Inner curved arm
