Installation
27

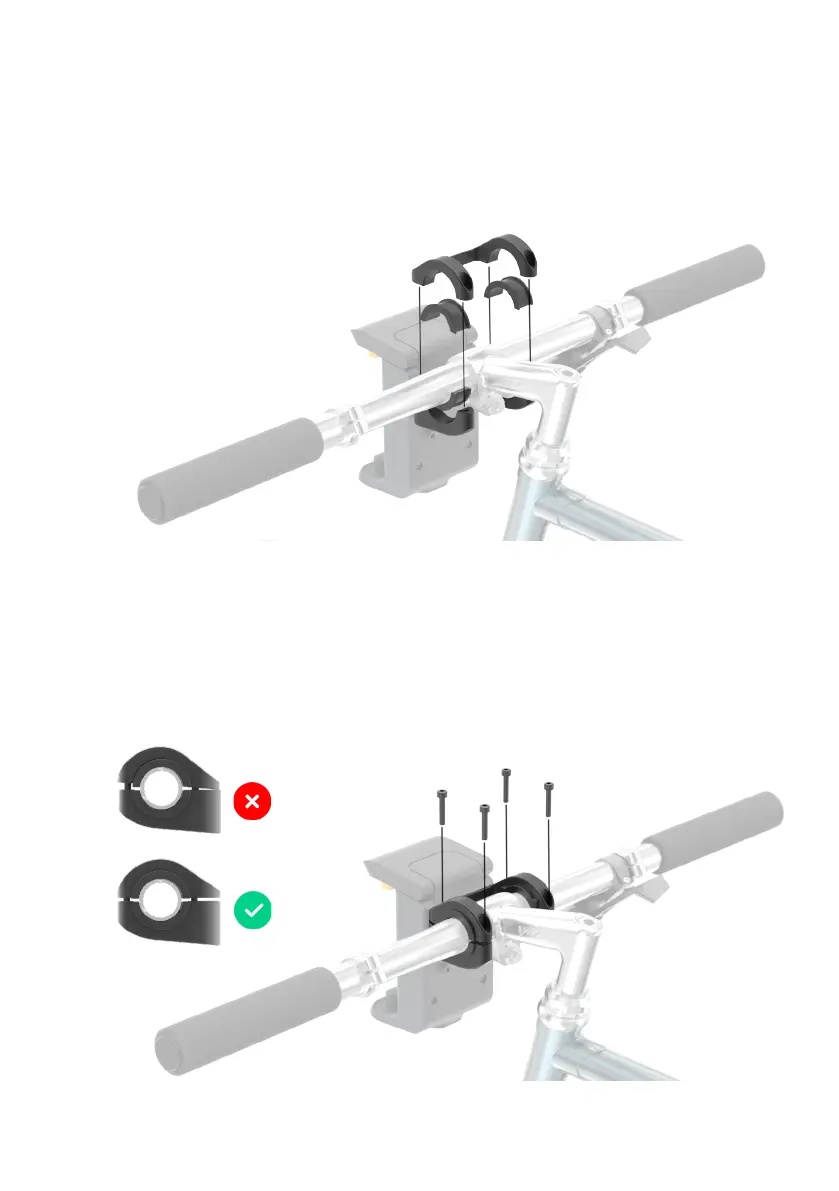

3.1 Position together the lower and
upper bracket halves, placing the
spacers inside if they are required.
4.
Screw the assembly together
4.1
To secure the mount in place screw
the two bracket halves together
using a 3mm Allen key. Make sure
both halves are even as shown.
1.
2.
3.
4.
3. Assemble the bracket
Note
Tighten the screws with 2-3 Nm of
torque. Visit swytchbike.com/manu-
al/3nm/ for support.
