Sycamore 3500L - Generator Parts Listing; Figure B

Owner's Manual

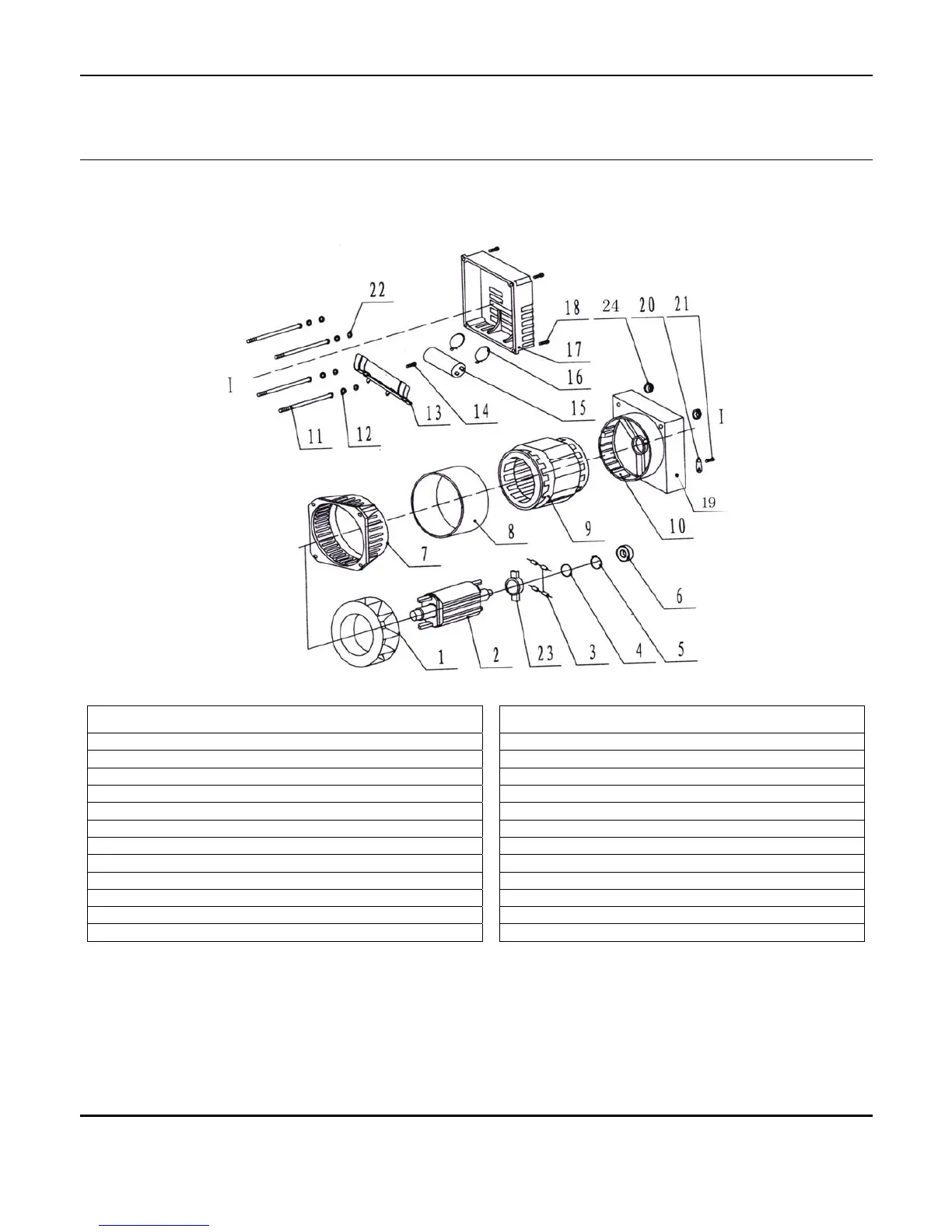

Generator Parts Listing
Figure B.
ITEM
NO.
DESCRIPTION PSYCG # QTY.
ITEM
NO.
DESCRIPTION PSYCG # QTY.
B01 COOLING FAN PSYCG3500LB01 1
B13 CAPACITOR SHELF PSYCG3500LB13 1
B02 ROTOR PSYCG3500LB02 1
B14 OVAL HEAD BOLT M5x8 PSYCG3500LB14 1
B03 DIODE PSYCG3500LB03 4
B15 CAPACITOR PSYCG3500LB15 1
B04 Ø32 WASHER PSYCG7000EB04 1
B16 CAPACITOR FASTENER PSYCG3500LB16 2
B05 Ø32 CLAMP PSYCG7000EB05 1
B17 ALTENATOR COVER PSYCG3500LB17 1
B06 BEARING PSYCG7000EB06 1
B18 OVAL HEAD BOLT M5x12 PSYCG7000EB18 4
B07 DRIVE END BRACKET PSYCG3500LB07 1
B19 RUBBER PAD PSYCG3500LB19 2
B08 ENCLOSING BAND PSYCG3500LB08 1
B20 GROUND PLATE PSYCG3500LB20 1
B09 STATOR PSYCG3500LB09 1
B21 OVAL HEAD BOLT M5x6 PSYCG7000EB01 1
B10 ALTERNATOR BACK COVER PSYCG3500LB10 1
B22 SPRING WASHER Ø8.2 x Ø13 PSYCG7000EA16 4
B11 HEX BOLT M8x140 PSYCG3500LB11 4
B23 DIODE FRAME PSYCG3500LB23 1
B12 WASHER Ø8.2 x Ø16 PSYCG7000EB12 4
© 2006, Sycamore SCS, LLC.
19
