MODE
SET
13
E

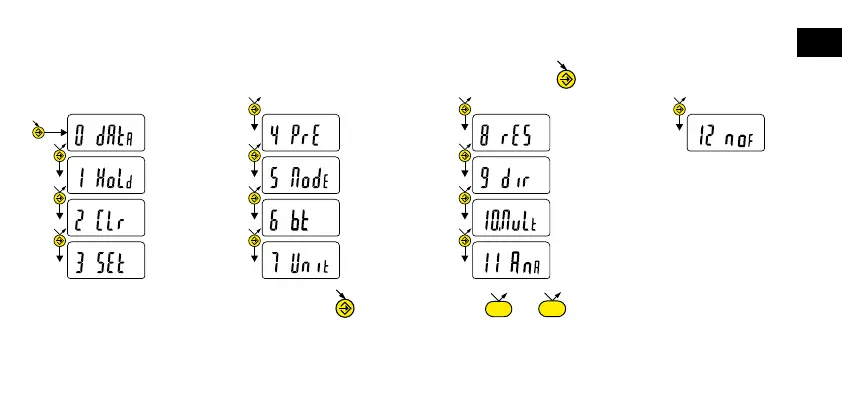

6. Favourite key
The «favourite» key gives direct access to a predened function, and can be congured according to the needs of the
user. In order to assign a function to the «favourite» key, give a prolonged press on , and then select the required
function :
Validation of selection: By a prolonged press on or a short press on or .
Note :
- A function can also be assigned via RS232 using the command <FCT + Function No.> (FCT 0..9 A..F)
example : Toggle unit = <FCT7>, multiplication factor = <FCTA>.
Data
transmission
(default)
Hold display
Re-initialise
Min-Max-Delta
Zero reset
Recall Preset
Nor-Min-Max-
Delta
Bluetooth
®
ON-
OFF
mm – IN
0.01 ↔ 0.001
Measurement direction,
positive - negative
1:1 - N:1 factor
Analog display
No function
