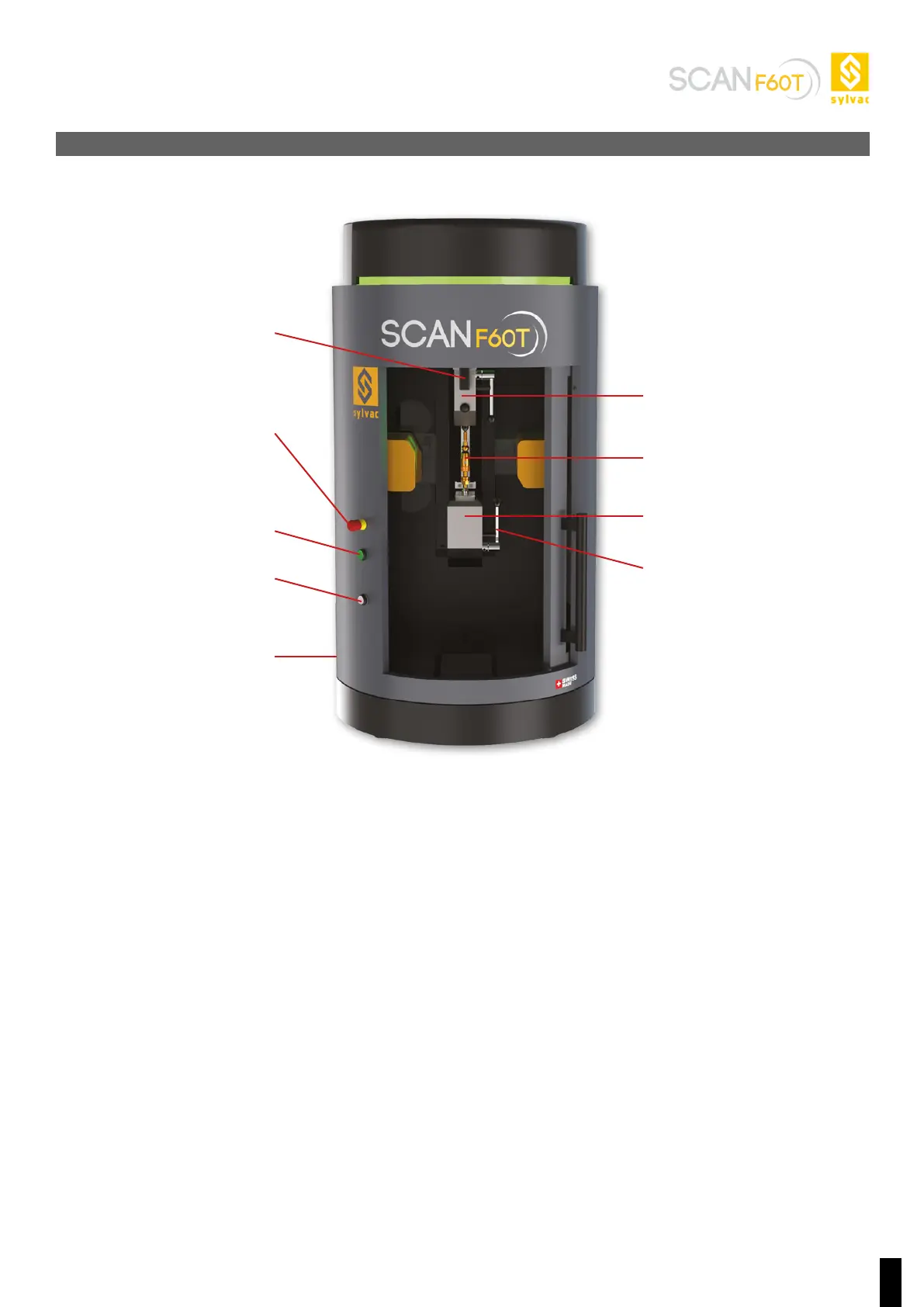

4. OVERVIEW AND CONFIGURATION
A - Tailstock: supports the upper part of the calliper, can be moved manually along the calliper according to the size of the
piece.
B - Piece to be measured: for the user to affix the piece to be measured between the stocks.
C - Headstock: supports the bottom part of the calliper, can rotate if necessary.
D - Locking knob: for manually adjusting the tailstock along the calliper.
E - Attachment lever: for changing accessory (cone, chucks, tapers, etc.). Can be used for top or bottom mounting.
F - Emergency stop button: Press to stop the machine in the event of a dangerous situation. Pull it out once the danger
has been removed.
G - Motor start-up: Press to restart the motors after an emergency stop.
H - Reflex-Click button: Start a measurement programme (in Reflex-Click mode, automatically select programme,
replay or execute selected programme).
I - ON/OFF switch: machine main start/stop switch (low voltage) on the side of the machine.
