Q503
Collector
WF16
Q502
Collector
WF15
Q501
Collector
WF14

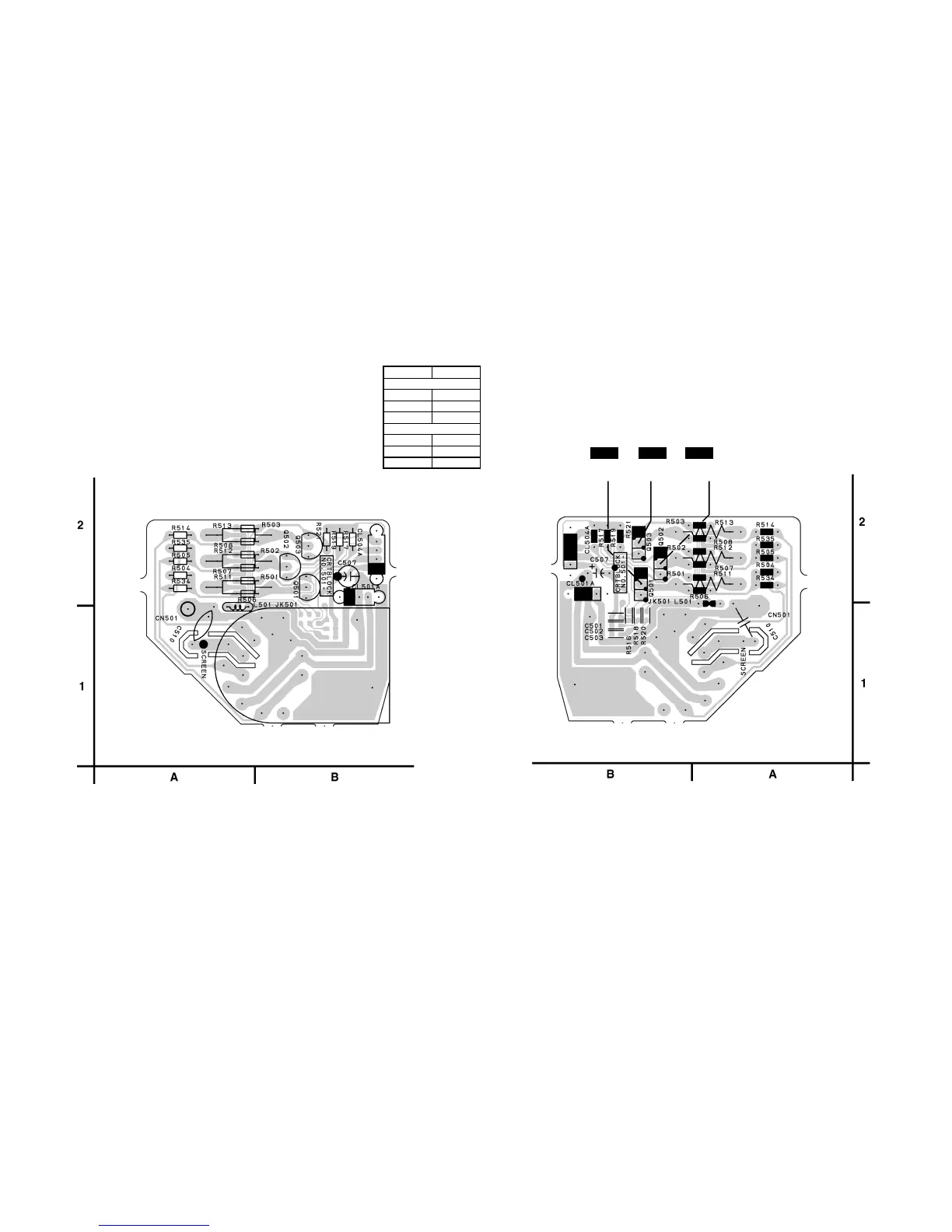

CRT CBA Top View
1-9-21 1-9-22 BT5300F01012
CRT CBA Bottom View
CRT CBA
Ref No. Position
Q501 B-2
Q502 B-2
Q503 B-2
CL501A B-2
CL504A B-2
CN501 A-1
TRANSISTORS
CONNECTORS
