2-4-10 U25NAPM

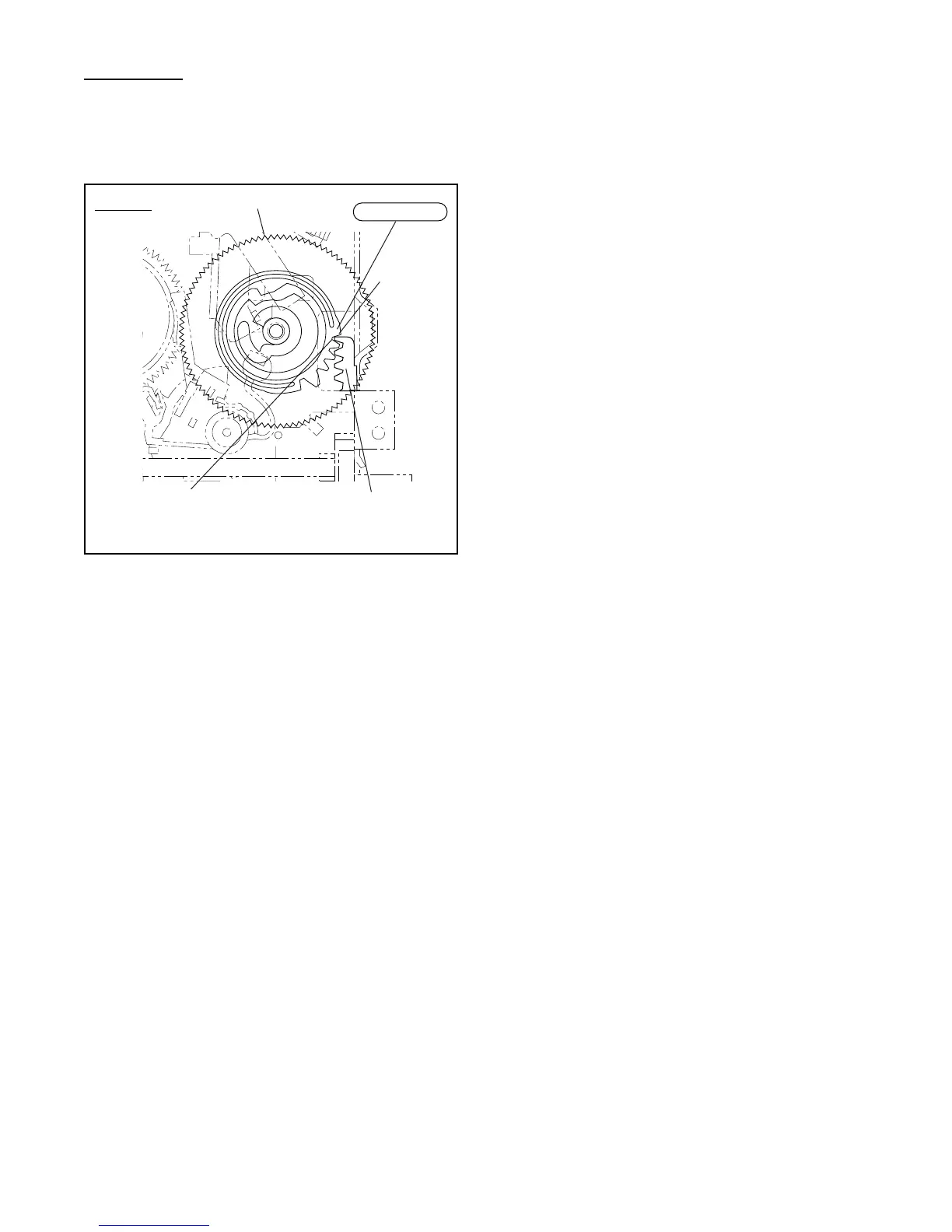

Alignment 3
Cam Gear (A), Rack Assembly
Install the Rack Assembly so that the first tooth on
the gear of the Rack Assembly meets the first
groove on the Cam Gear (A) as shown in Fig. AL4.
Cam Gear (A)
First tooth
First groove
on the Cam Gear (A)
Alignment 3
Top View
Gear on Rack Assembly
Fig. AL4
