Table 1 (V501 and L551 Combination)
Note 1: Purity and Convergence Adjustments must be
performed following CRT replacement. Refer to Electri-
cal Adjustment Instructions.
Note2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and L551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.
[ SRC2213/SRC22134 ]
[ SRC22194 ]

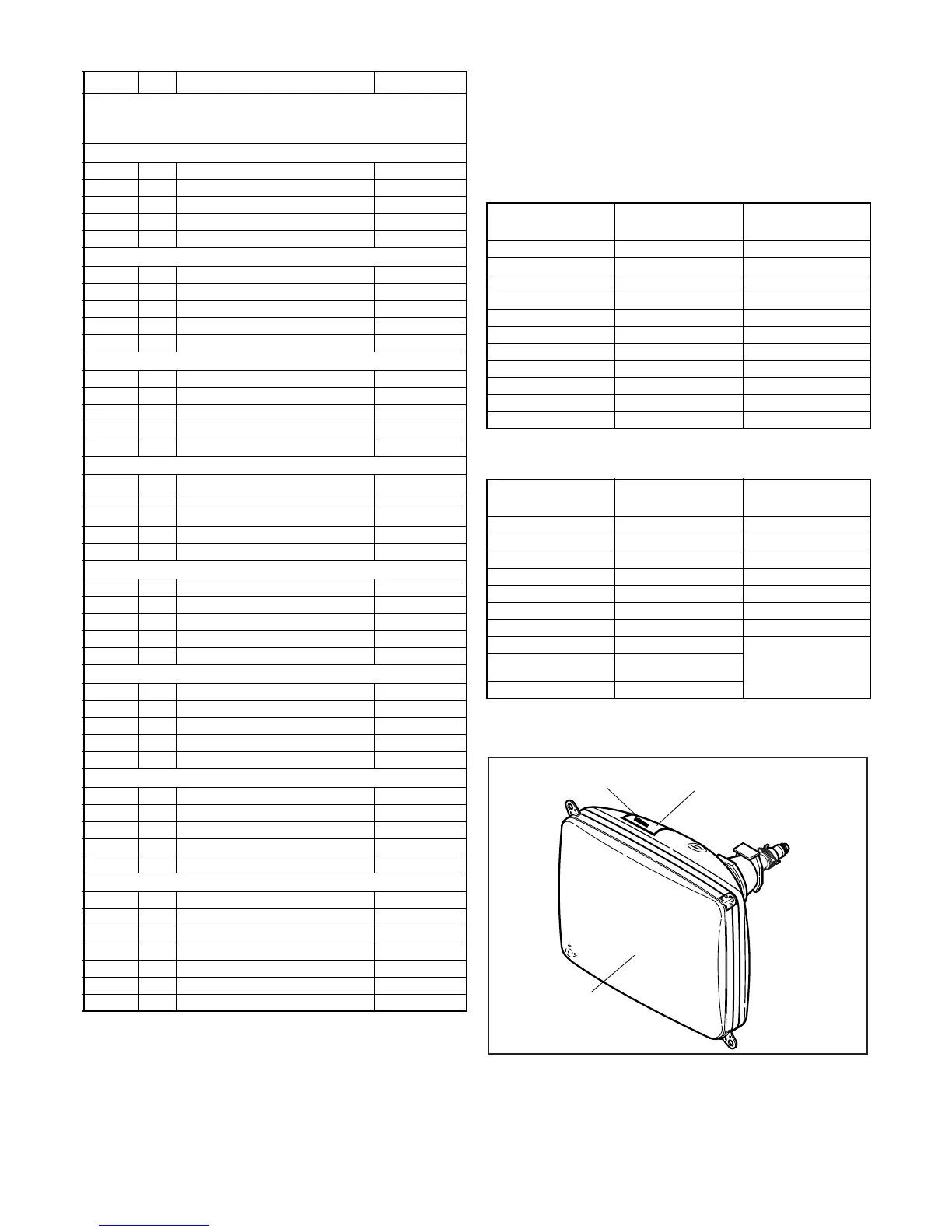

CRT Warning Label Location
Note:
A number of different CRTs (V501) may be used in these models. Each CRT is used in
combination with a specific deflection yoke (L551). Refer to Table 1 and the following
parts list for details.
CRT TYPE A
L551# DEFLECTION YOKE LLBY00ZSY006 LLBY00ZSY006
V501# CRT A48JLL90X TCRT190QS009
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE B
L551# DEFLECTION YOKE CDY-M2019F LLBY00ZQS004
V501# CRT A48JLL90X TCRT190QS009
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE C
L551# DEFLECTION YOKE LLBY00ZSY007 LLBY00ZSY007
V501# CRT A48LRH93X(W) TCRT190P7002
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE D
L551# DEFLECTION YOKE CDY-M2023F LLBY00ZQS005
V501# CRT A48LRH93X(W) TCRT190P7002
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE E
L551# DEFLECTION YOKE 330P510A37 LLBY00ZTHA01
V501# CRT A48LGS30X TCRT190THA01
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE F
L551# DEFLECTION YOKE LLBY00ZSY008 LLBY00ZSY008
V501# CRT A48LVL095X TCRT190MS011
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE G
L551# DEFLECTION YOKE KDY3MDD18X LLBY00ZMS019
V501# CRT A48LVL095X TCRT190MS011
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE H
L551# DEFLECTION YOKE KDY3MDD74X LLBY00ZMS024
V501# CRT A48AKH13X01 K or TCRT190CP043
# CRT:MINI BARE CHUNGHWA T7300UA or 0EDM06903
# CRT A48AKH13X TCRT190CP044
V501-1 C.P.MAGNET JH225-014 XM04000BV009
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
Ref. No. Mark Description Part No.
V501: CRT Type No. V501: CRT Part No.
L551: Deflection
Yoke Part No.
CRT A34AGT13X TCRT190CP036 LLBY00ZSY005
CRT A34AGT13X TCRT190CP036 LLBY00ZMS011
CRT A34KQW42X TCRT190SM013 LLBY00ZSY002
CRT A34KQW42X TCRT190SM013 LLBY00ZQS008
CRT A34JLL90X(W) TCRT190QS015 LLBY00ZQS001
CRT A34LRQ90X(VW) TCRT190P7003 LLBY00ZQS007
CRT A34KPU02XX TCRT190GS016 LLBY00ZSY002
CRT A34LEX10X TCRT190SAM01 LLBY00ZSAM01
CRT A34JQQ093X TCRT190MS010 LLBY00ZSY002
CRT A34JQQ093X TCRT190MS010 LLBY00ZMS018
CRT A34KQW42X TCRT190SM013 LLBY00ZMS006
V501: CRT Type No. V501: CRT Part No.
L551: Deflection
Yoke Part No.
CRT A48JLL90X TCRT190QS009 LLBY00ZSY006
CRT A48JLL90X TCRT190QS009 LLBY00ZQS004
CRT A48LRH93X(W) TCRT190P7002 LLBY00ZSY007
CRT A48LRH93X(W) TCRT190P7002 LLBY00ZQS005
CRT A48LGS30X TCRT190THA01 LLBY00ZTHA01
CRT A48LVL095X TCRT190MS011 LLBY00ZSY008
CRT A48LVL095X TCRT190MS011 LLBY00ZMS019
CRT A48AKH13X01 K TCRT190CP043
LLBY00ZMS024
CRT:MINI BARE CHUNG-
HWA T7300UA
0EDM06903
CRT A48AKH13X TCRT190CP044
CRT
CRT Warning Label
CRT Type No.
