CAUTION:
Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as
gasoline…etc to avoid damaging these components.
The panel figure for speedometer may vary from model to model, but the location usually are the
same.
7.
USE OF EACH COMPONENT
(The following is SYM 4 stroke air-cooling 125 c.c. scooter’s basic operation, and they
could vary from different individual models. Please consult the end of this manual.)
§GAUGES§
y Speedometer：
Indicates driving speed.
y Odometer：
Indicates total accumulated distance traveled.
y High Beam Indicator：
This indicator comes on with high beam headlight is turned on.
y Turn (left/right) Signal Indicator：
The left or right Indicator will be flashing according to the operated directions of turn signal light switch
when it is turned on.
y Fuel Meter:
The pointer in this meter shows how much fuel remains in the tank.
The pointer stays in “E” position when key switch is turned to “OFF”.

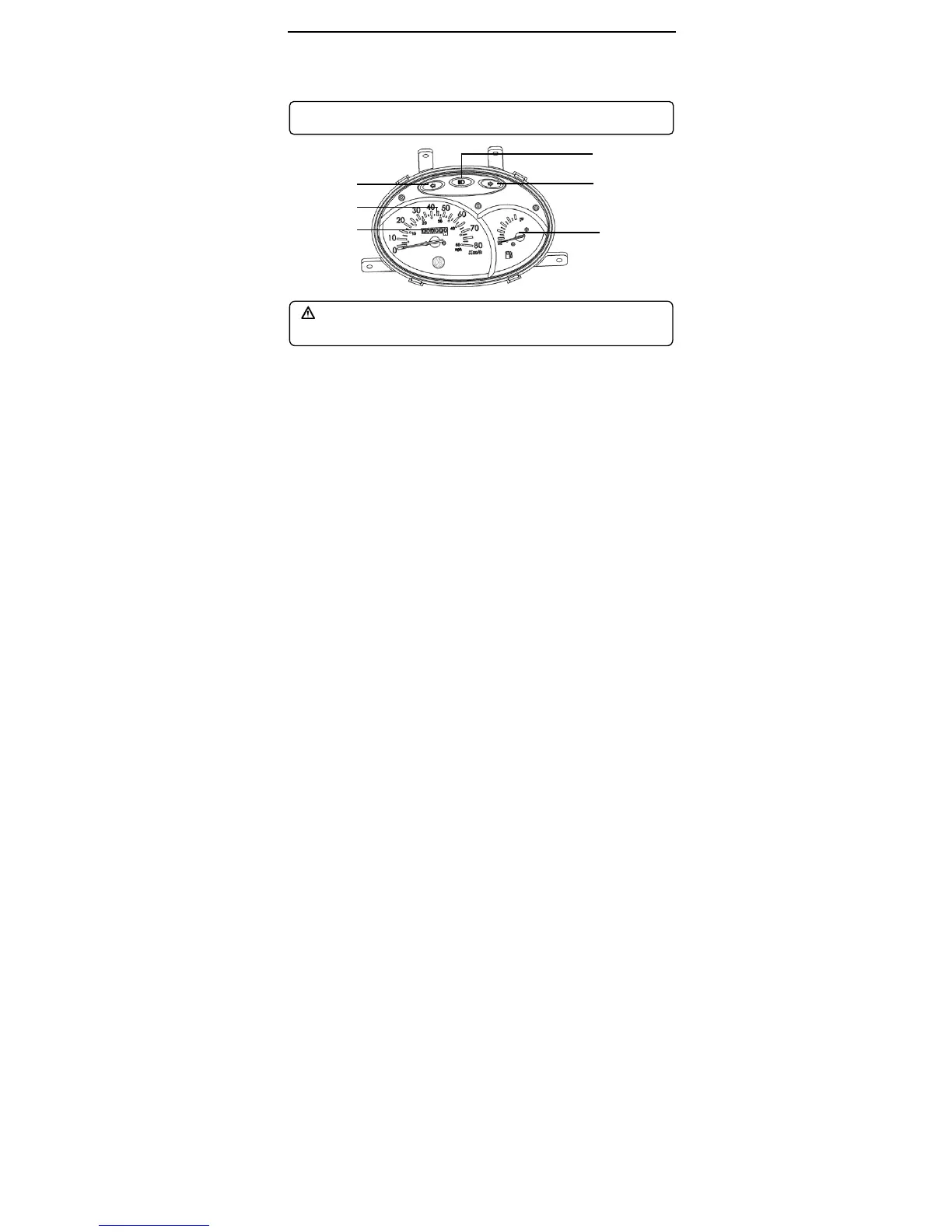

High Beam
Indicator
Fuel meter
Odometer
Speedometer
Turn Right
Signal Indicator
Turn Left Signal
Indicator
To Next Page
