Sym ADX125 User Manual

7
 Fault indicator light
If there is something wrong with the ECU, the warning light will light all the time.
Cooling temperature indicator:
Indicates the engine cooling water temperature, engine cooling water temperature indicator if light, should
check the cooling water is sufficient and the fan motor is running
 Low fuel load warning light:
When there is a little fuel inside the tank, the warning light will be on.
 Engine oil change warning lamp:
It is used to indicate the oil exchange time, with lights, when the vehicle was driven about 1000
kilometers, indicator light will light up, warn the users to replace the oil. After finish oil change ,Long press
"S" button 2±0.5 seconds in “OIL” mode, then the indicator light will go out.
 Fuel Meter:
The pointer in this meter shows how much fuel remains in the tank.
The pointer stays in “E” position when key switch is turned to “OFF”
 Idle speed automatic flameout Indicator:
1.When the switch is turned to " ", the engine idle automatic flameout mode is turned on. When the
switch is turned to "OFF", the system will be turned off.
2.KEY ON: Kick up the side stand, untie the power-off safety device of the side stand, and after two
seconds the " " will go out .
3. When the engine is stationary at normal idle speed and after the engine self-extinguish, " "
The indicator light flashes continuously. Select to turn the accelerator or press the electric start
switch and pull up the brake lever to restart the engine.
4. When riding " " The indicator lamp is in the standby state of normally dark mode.
5. If it cannot be started by turning the throttle after automatic flameout, it is recommended to turn off
the system and for inspection immediately.
 TCS Indicator:
When the motorcycle is KEY ON, the information output from the gauges to the ECU enables the
TCS function, Read TCS indicator ID information after gauges self inspection. After the TCS indicator
is off (when the TCS has no fault). Press the “M” button to switch the TCS switch mode (TCS is
displayed at the gauges mileage) . Long press the "S" button for more than 2 seconds, Perform ON or
OFF switching. When the TCS is turned on, the indicator is off, and when the TCS is turned off, the
indicator is on.
Note: After switching TCS ON or OFF, it is required to wait for 2 seconds before switching again (it is
not allowed to switch continuously and prevent the switch from being touched by mistake. When the
vehicle speed is greater than 5KM/H, the instrument cannot switch ON or OFF.
 Switching kilometers and miles:
Click “S” button to select metric system or imperial system circularly, and the selection will take effect.
Long press “M” button to return to the previous level.
 Trip reset:
In TRIP display status ,Press “S” button 2±0.5 seconds ,can change the public mile display.

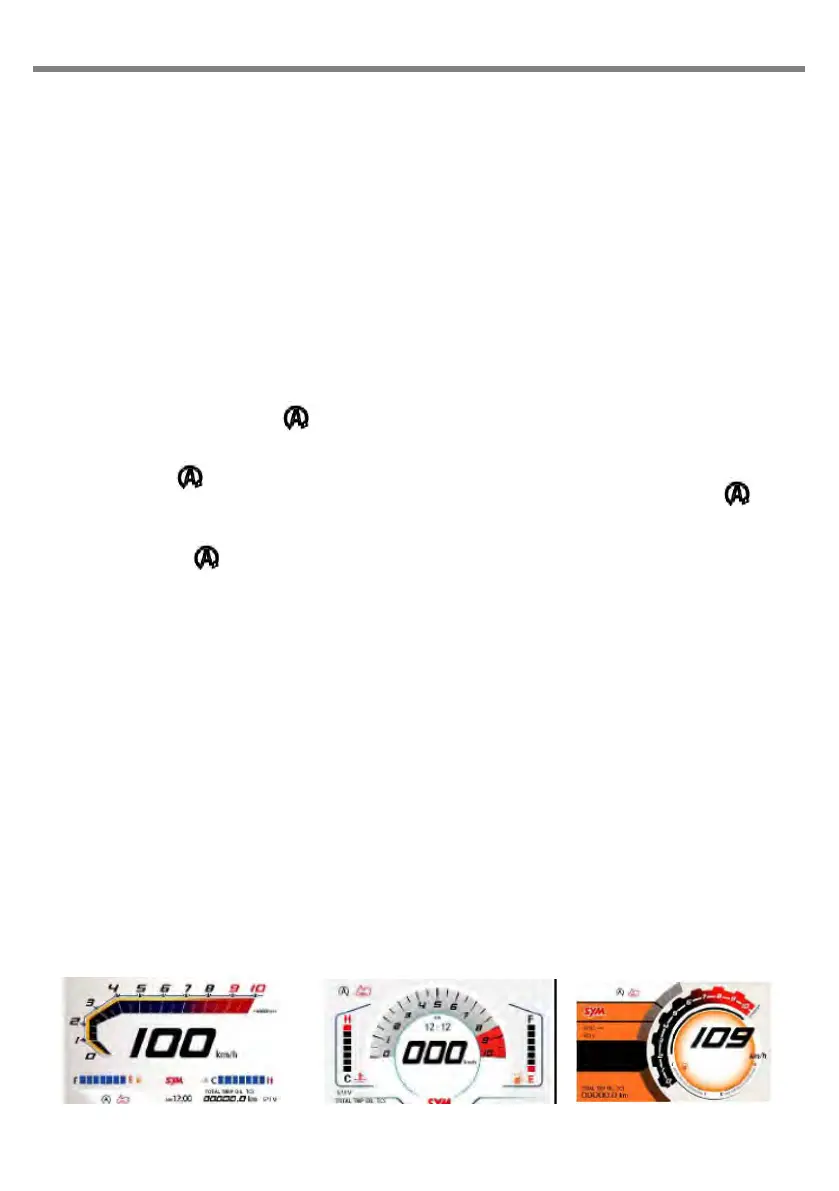

 TFT Function Operating Instructions:
1.UI interface display:
Daytime mode: black characters on white background (control photosensitive sensor)
Figure 1
Figure 2
Figure 3
