7.USE OF EACH COMPONENT
(The following is SYM 4 stroke air-cooling scooter’s basic operation, and they could vary from
different individual models. Please consult the end of this manual.)
Turn on the idle speed flameout system conditions:
gauges light signal status
Start mode
Turn the throttle handle or pull the brake &
press the start button
§GAUGES §

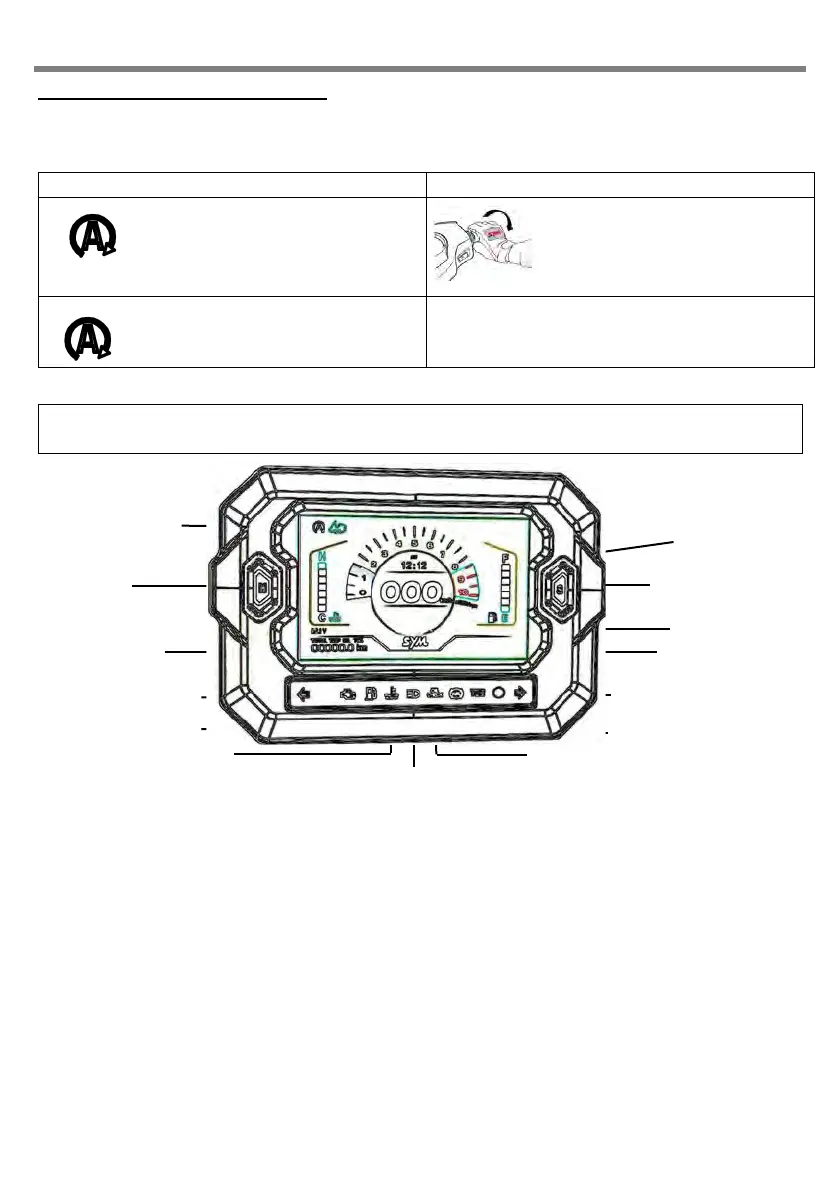

The panel figure for speedometer may vary from model to model, but the location usually are the
same.
 Speedometer
：
Indicates driving speed.
 Odometer
：
Indicates total accumulated distance traveled.
 High Beam Indicator
：
This indicator comes on with high beam headlight is turned on.
 Turn (left/right) Signal Indicator
：
The left or right Indicator will be flashing according to the operated directions of turn signal light switch
when it is turned on.
 ABS indicator light:
Normally the ABS indicator light goes on when the ignition switch is turned on and goes off shortly
after the scooter starts moving.
 The ABS (Anti-lock Brake System) indicator light goes on when the ignition switch is turned on and goes
off shortly after the scooter starts moving. If the ABS is normal, it stays off. If something is wrong with the
ABS, the indicator goes on and stays on. When the indicator light is on, the ABS does not function but if
the ABS fails, the conventional brake system will still work normally.
The indicator light is on for two
seconds (gauges self-test)
Then it goes out.
Pull the brake & press the
start button
The indicator flashes
Odometer
High Beam Indicator
Fault indicator light
“S” Button
Turn Left Signal Indicator
Turn Right Signal Indicator
ABS Indicator
Cooling temperature Indicator
Engine oil replacement warning lamp
Fuel meter
Idle speed automatic
Flameout Indicator
“M” Button
TCS Indicator
Photosensitive sensor
