SYM 12. BODY COVER
12-3
HANDLE COVER

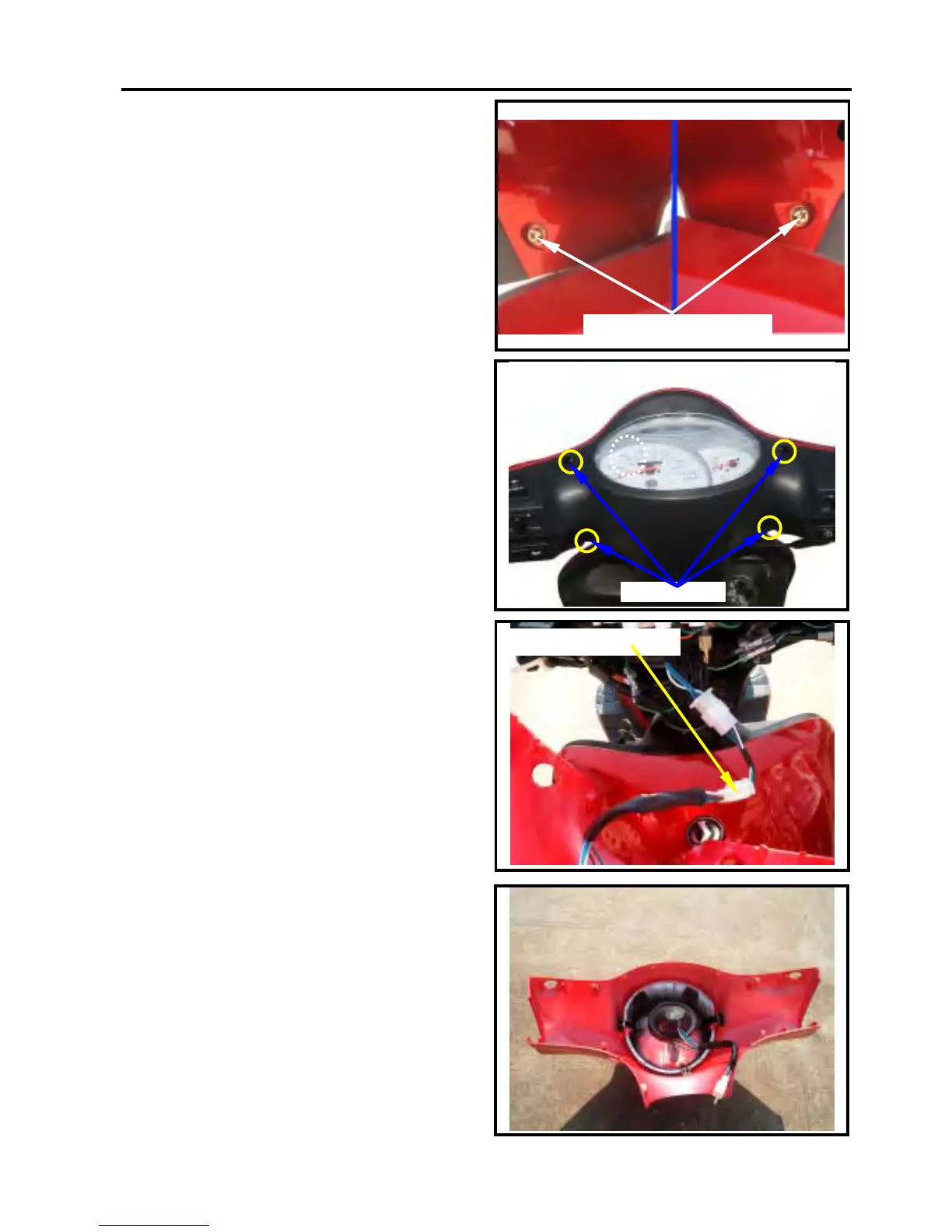

Removal:
Remove the left/right back mirror.
Remove 2 lower mounting screws between
the front handle cover and the rear handle
cover.
Remove the mounting screws (4 screws)
between the front handle cover and the rear
handle cover.
Remove the headlight connector.
Remove the front handle cover.
Remove the front handle cover.
Installation
Install according to the reverse procedure of
removal.
Screws 2×2
mounting screw×2
Headlight connecto
r
