16. ELECTRICAL EQUIPMENT
16-22

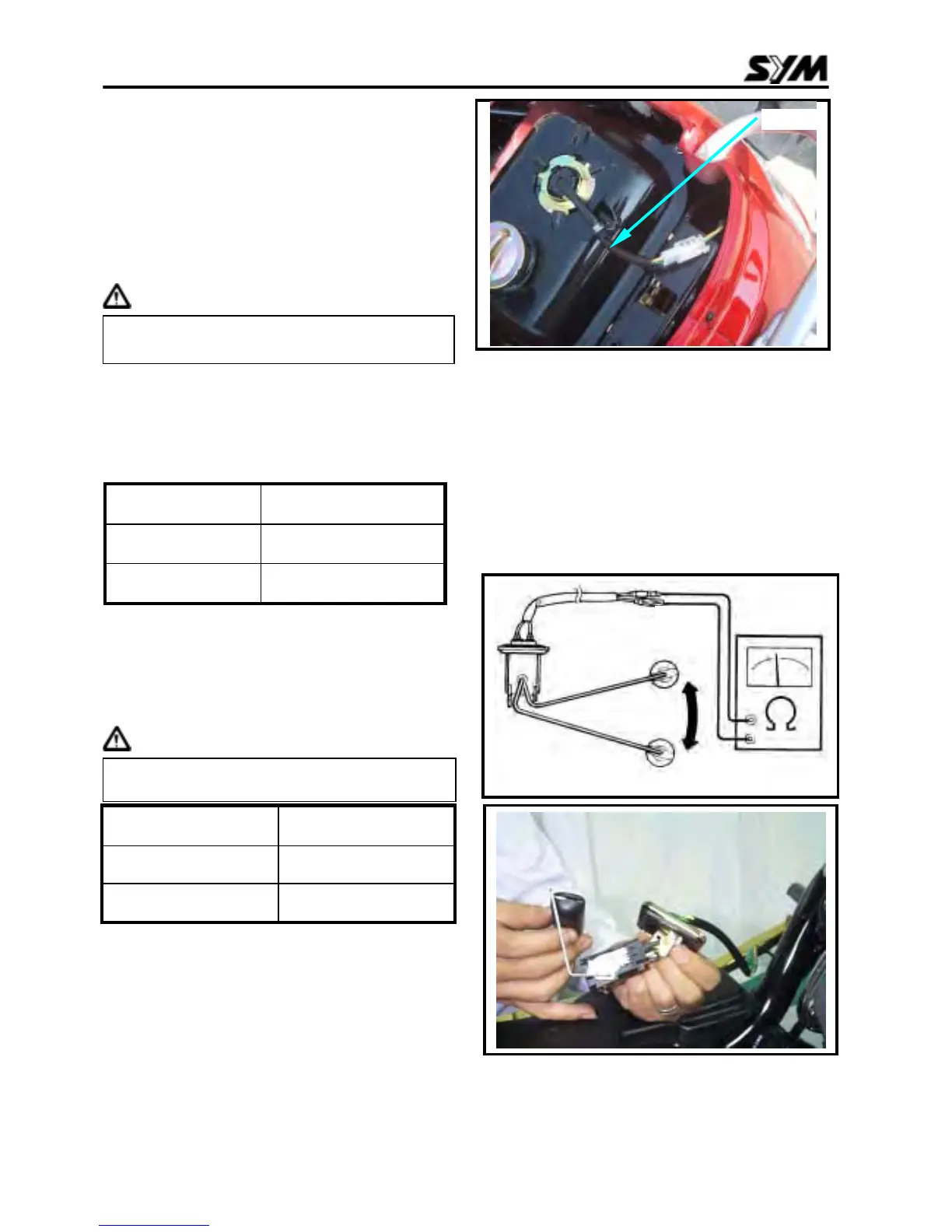

FUEL UNIT
Open the seat.
Remove the luggage box(bolts x 6) .
Remove the engine start control switch wire
connector.
Disconnect the fuel unit wire connector.
Caution
The resistance values are listed below when
the float arm in “F” and “E” positions.
Float arm position Resistance value
E(empty)
97.5~107.5Ω
F(full)
4~10Ω
DOWN(empty)Connect the fuel unit to the
main harness.
Turn the main switch “ON” position.
Move the float arm in “UP” & “DOWN”, and
then check if the fuel unit indication needle is
in correct position.
Caution
Float arm position Indicator needle
UP(full) E(empty)
DOWN(empty) F(full)
Do not damage or bend the float arm as
removing.
Turn on the turn signal light to make sure
battery is in good condition before this test.
UP
(full)
DOWN
(empty)
Fuel unit
