SYM 12. BODY COVER
12-7

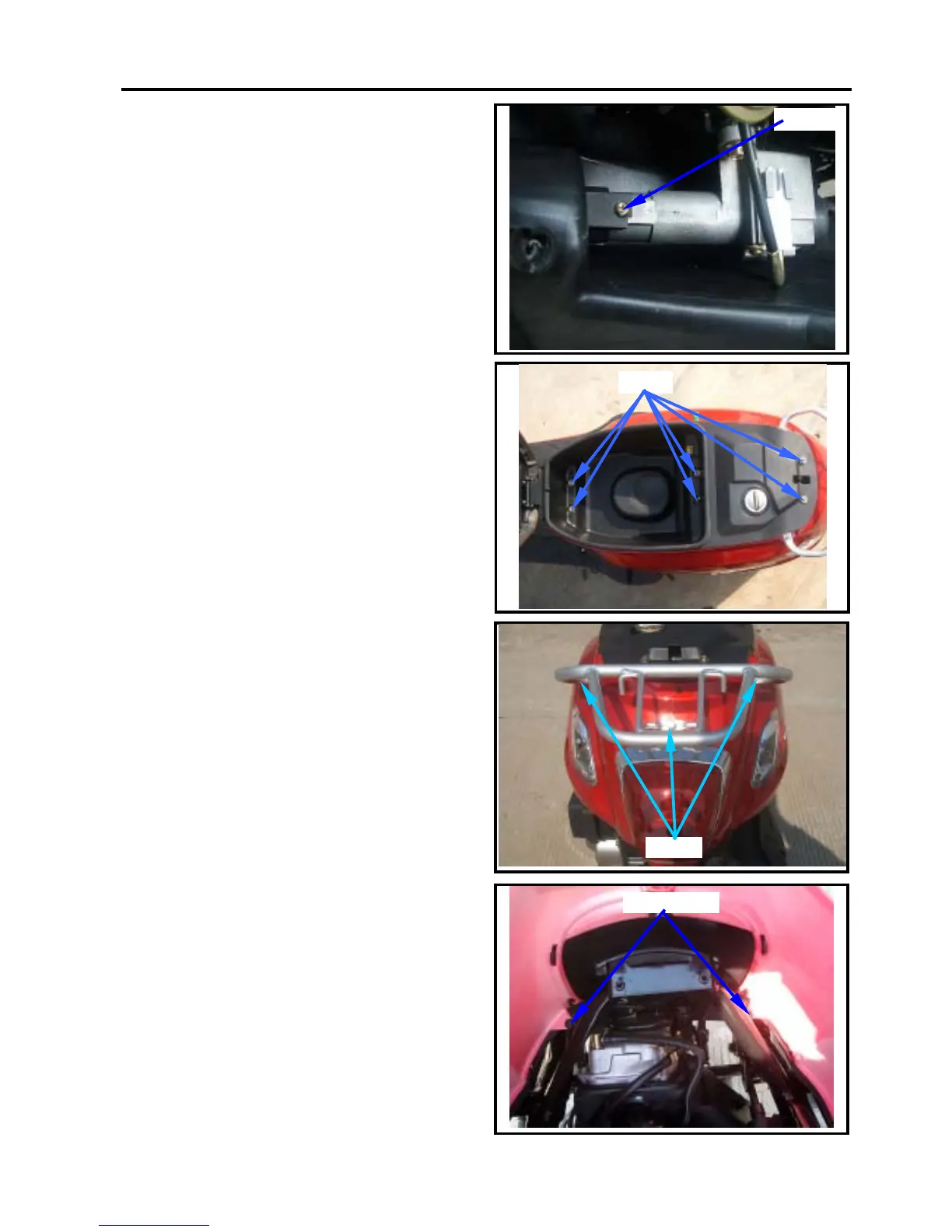

Remove the screw on the main switch.
Remove the main switch cover.
Remove the front inner box A.
Installation
Install the inner box A and the front inner box
B according to the reverse procedure of
removal.
BODY COVER/REAR FENDER
Removal
Open the seat.
Remove the luggage box. (6 bolts)
Remove the rear carrier. (3 bolts)
Remove the 1×2 mounting screws between
the body cover and frame.
3 bolts
1 screw
2 screws
6 bolts
