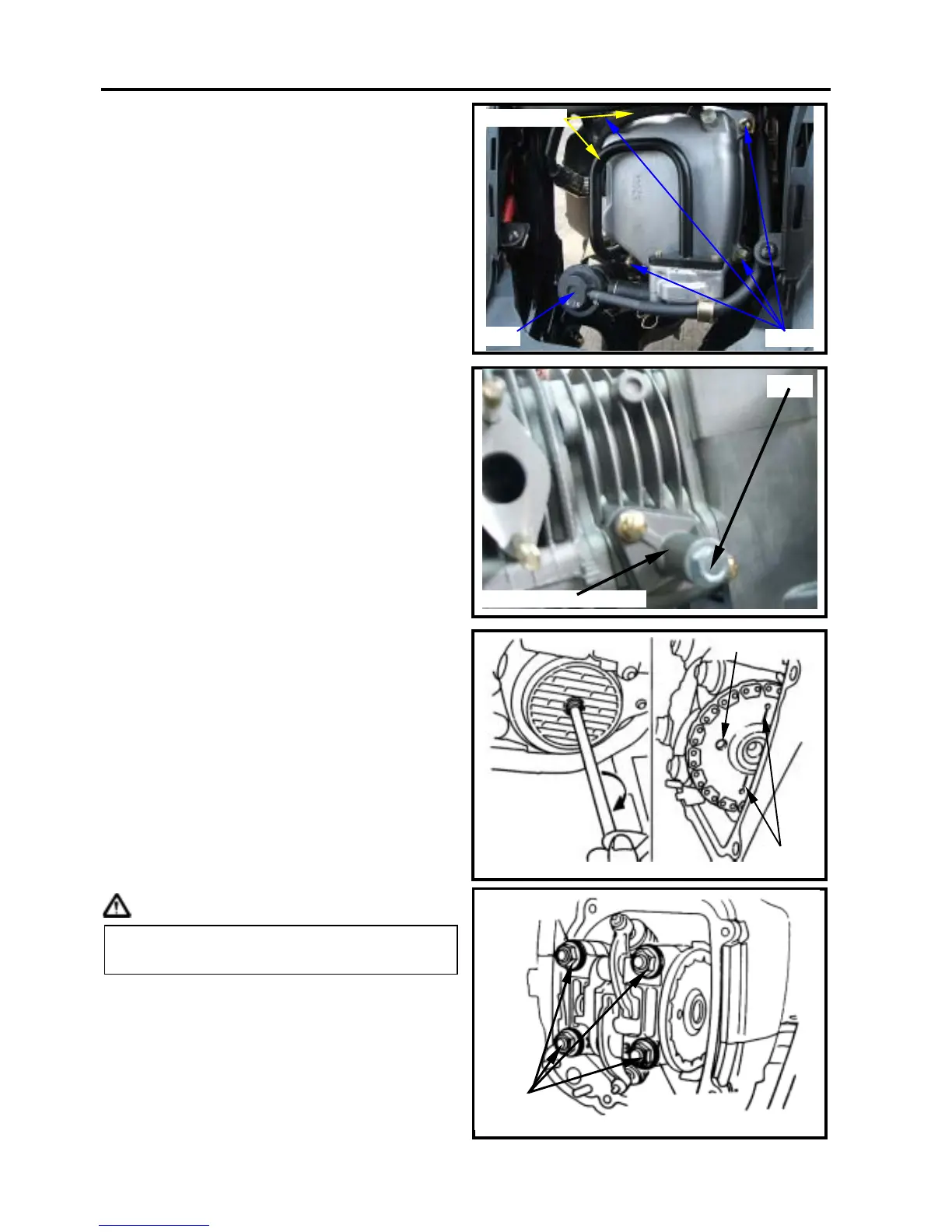

CAMSHAFT REMOVAL
Remove the shroud of the engine.
Remove the crankcase blow-by system hose
from the cylinder head.
Remove the cylinder head bolts and then
remove the cylinder head (4 bolts).
Loosen the bolt of camshaft chain adjuster in
a counter-clockwise motion for release
adjuster.
Turn the flywheel in counter clockwise
motion with T type wrench until the “T” mark
on flywheel aligned with the mark on the
crankcase so that the hole on the camshaft
sprocket is forward up and piston is at TDC
position.
Remove camshaft holder nut and washer.
Caution
Loosen the nuts diagonally by 2-3
sequences.
TDC mark
Hole
4 nuts
Blow-by hose
4 bolts
A.I.
bolt
camshaft chain adjuster
