SYM 12. BODY COVER
12-9

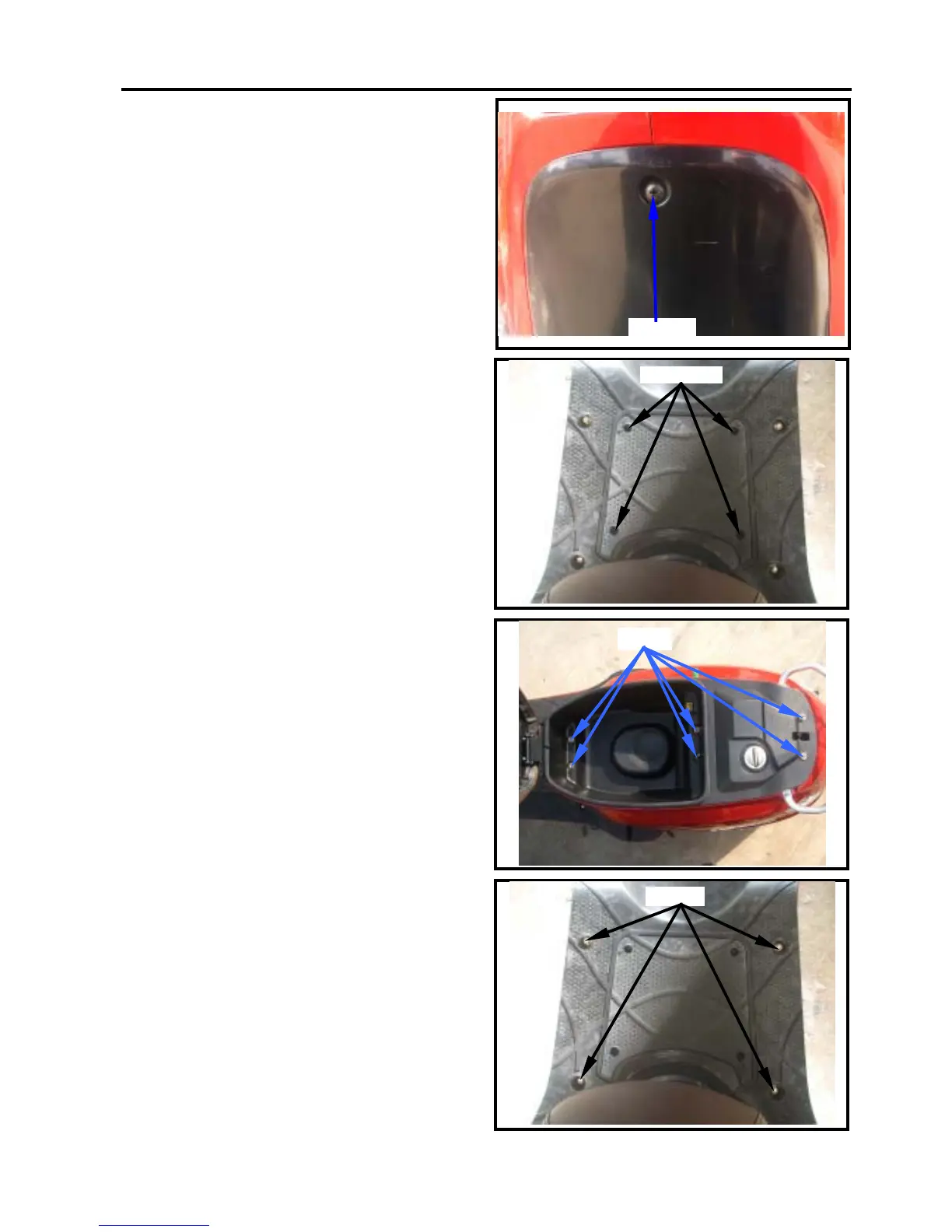

FRONT CENTER COVER
Removal
Remove the 1 mounting screw between the
body cover and the front center cover.
Remove the 4 screws from the battery cover.
Remove the the battery cover.
Remove the front center cover.
Installation
Install the cover according to the reverse
procedure of removal.
LUGGAGE BOX
Removal
Open the seat.
Remove the 6 bolts from the luggage box.
Remove the luggage box and the double
seat.
Remove the engine start control switch wire
connectors.
Installation
Install the luggage box according to the
reverse procedure of removal.
FLOOR PANEL
Removal
Remove the 4 bolts from the floor panel.
4 bolts
4 screws
6 bolts
1 screw
