SYM 14. STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER
14-5

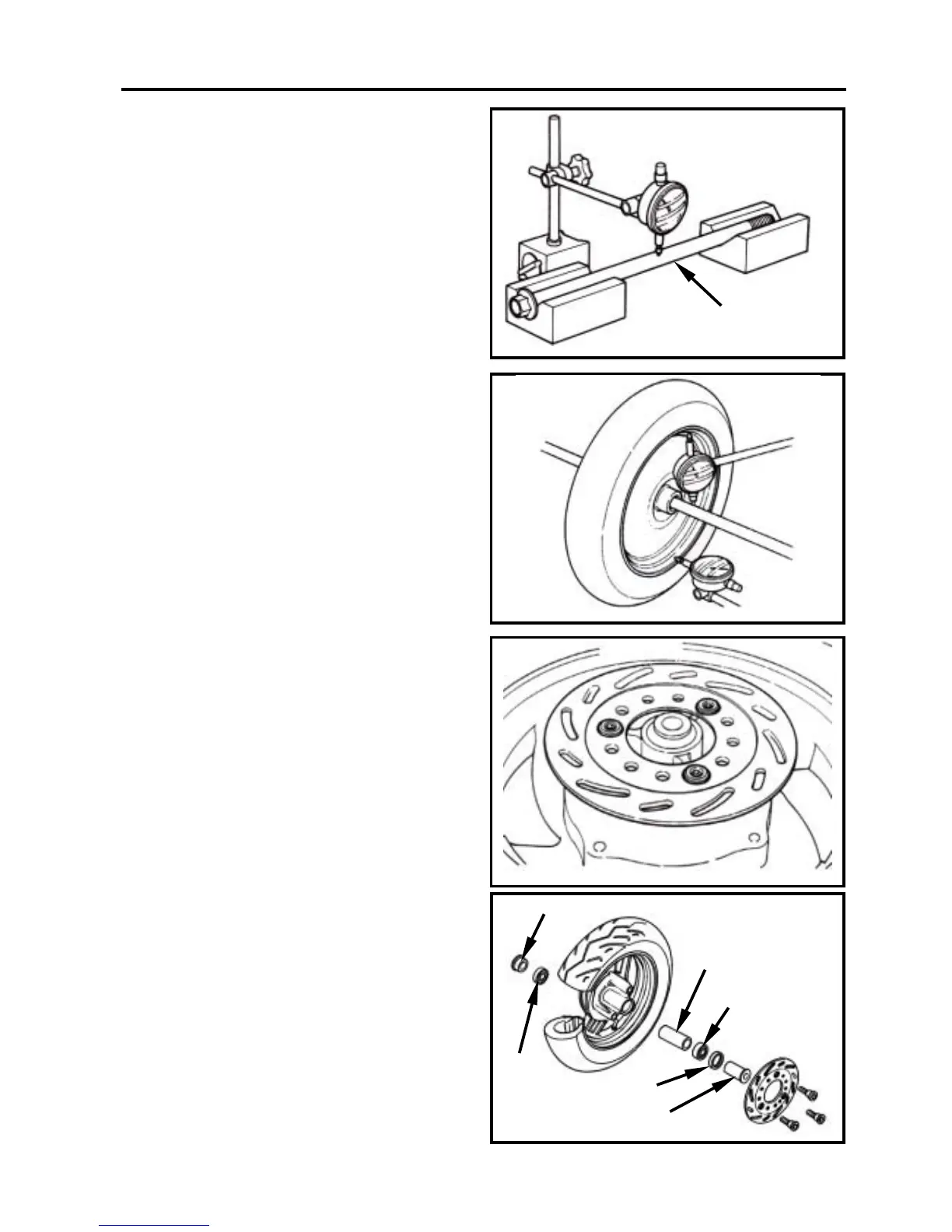

Inspection
Wheel axle
Set the axle in V-blocks and measure the
run-out.
Service limit: 0.2 mm.
Wheel Rim
Place the wheel onto a rotated bracket.
Turn the wheel with hand and measure its
wobble value with a dial gauge.
Service limit:
Radial : 2.0 mm
Axial : 2.0 mm
Disassembly
Remove 3 hex socket bolts and brake disc.
Remove the left axle ring and dust seal.
Remove the dust seal on the right side of
speedometer gear.
Remove the bearing with the inner type
bearing remover.
Take out the bearing spacer and then
remove the other bearing.
Tool:
Inner type bearing remover
Wheel axle
Dust seal
Wheel side collar
Speedometer gear dust seal
Bearing
Bearing
Bearing spacer
