SYM 14. STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER
14-7

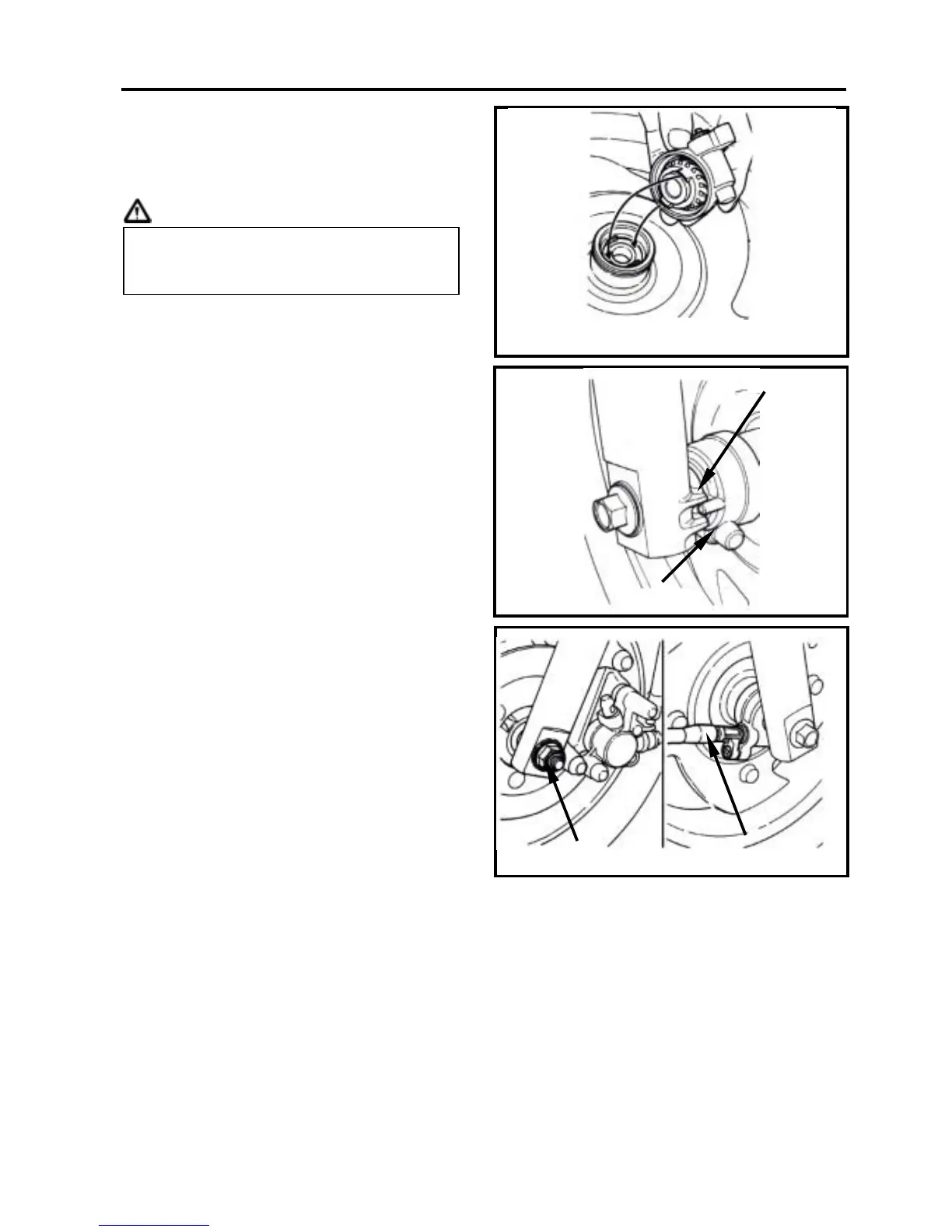

Installation
Align the flange part on the speedometer
gear with the slot of wheel hub, and then
install the brake disc or speedometer gear
box.
Caution
Place the front wheel between the front
shock absorbers.
Align the flange part on the speedometer
gear with the slot of shock absorber stopper.
Install the front wheel axle from right shock
absorber side.
Install the wheel axle nut, and tighten it to
specified torque value.
Torque value: 11.0~13.0kgf-m
Connect the speedometer cable to the
speedometer gear box.
Contaminated brake lining will reduce
brake performance so the brake lining,
brake disc must be free of grease.
