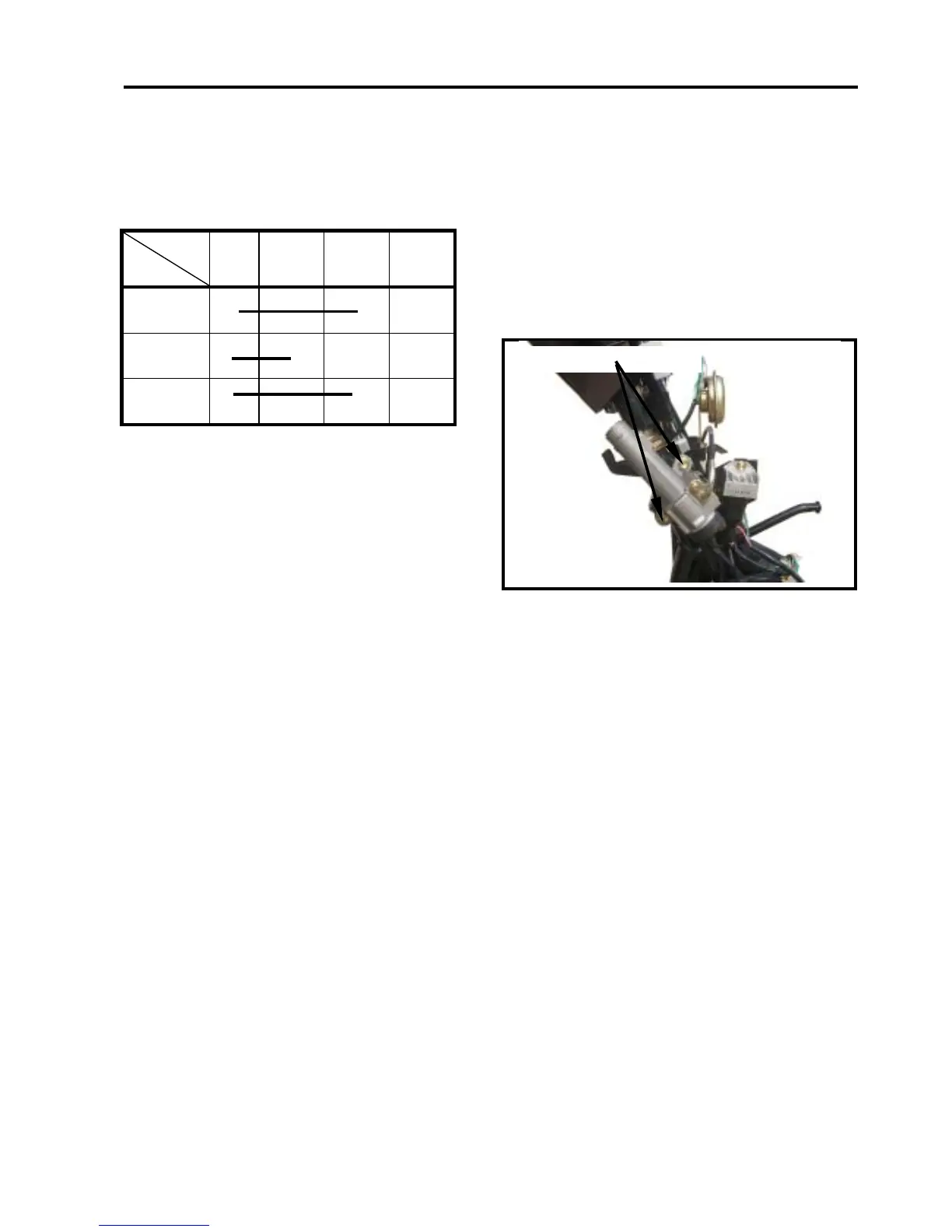

MAIN SWITCH/HORN
Main Switch
Check
Remove the headlight connector and the front
cover.
Disconnect main switch leads connector.
Check connector terminals for continuity.
color
Location
Black Red
green green
OFF
● ●
ON
● ●
LOCK
●
●
Replacement
Remove the main switch connector and
fixing bolts (bolts x 2)
Remove the main switch.
Install a new main switch and tighten the
bolts. (bolts x2)
main switch bolts x 2
