4. FUEL SYSTEM SYM
4-6
ACCELERATE PUMP

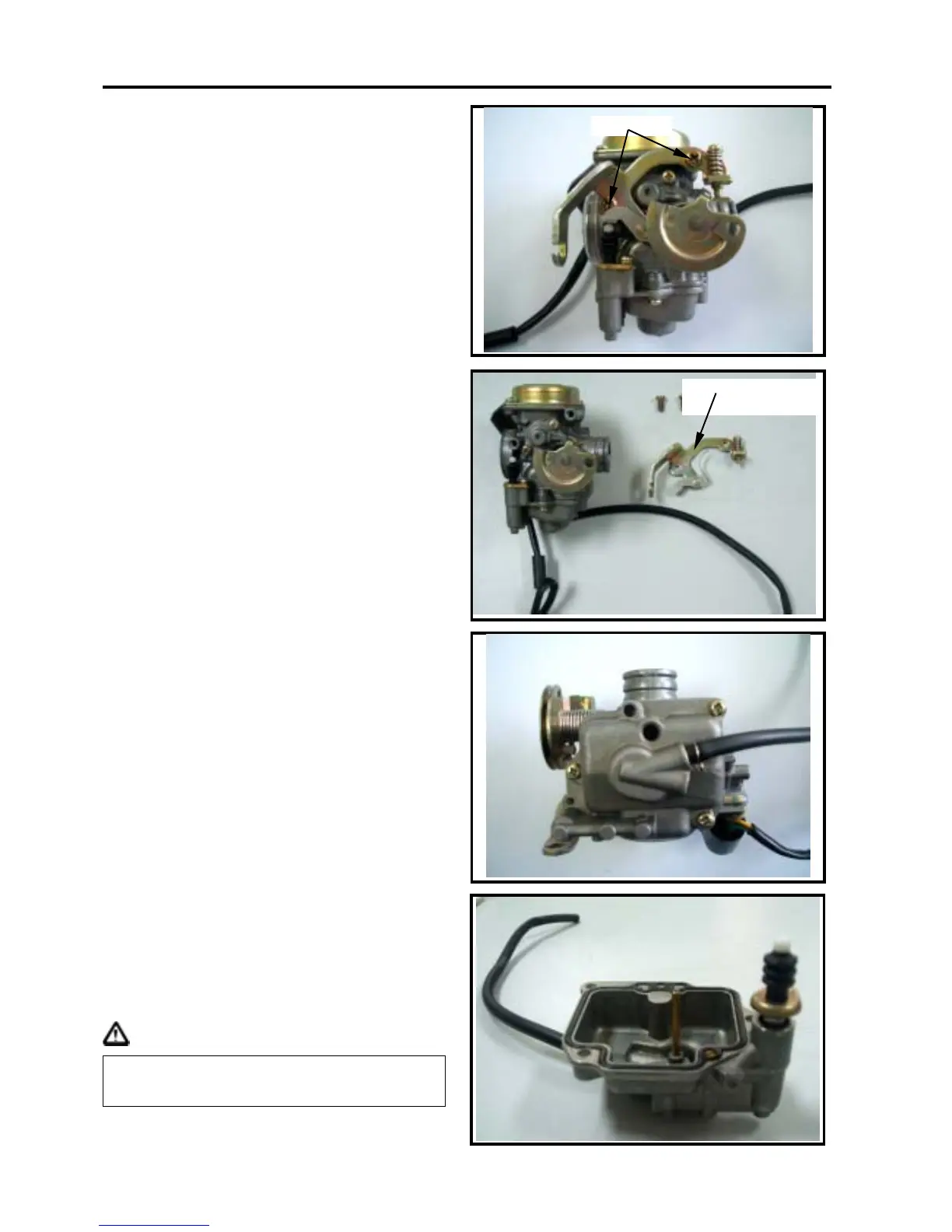

Removal
Loosen the fixing screws from carburetor.
Remove the accelerate pump drive arm from
the carburetor.
Remove 3 mounting screws and remove the
float chamber cover.
Remove 3 mounting screws and remove the
float chamber cover.
Installation
Install the valve as reverse order of removal.
Cautions
Do not damage the vacuum diaphragm or
in opposite installation direction.
S
crews ×
2
Accelerate pump
drive arm
