5. REMOVAL OF ENGINE SYM
5-6
REMOVAL OF ENGINE
SUSPENSION BUSHING
If engine suspension frame and the cushion
rubber of rear shock absorber bushing
damaged. Then, with the bushing remover /
presser, Φ28mm &Φ20mm, to press the
bushing out, and replace it with new one.
Engine suspension bushing: Φ28mm
Rear shock absorber bushing: Φ20mm

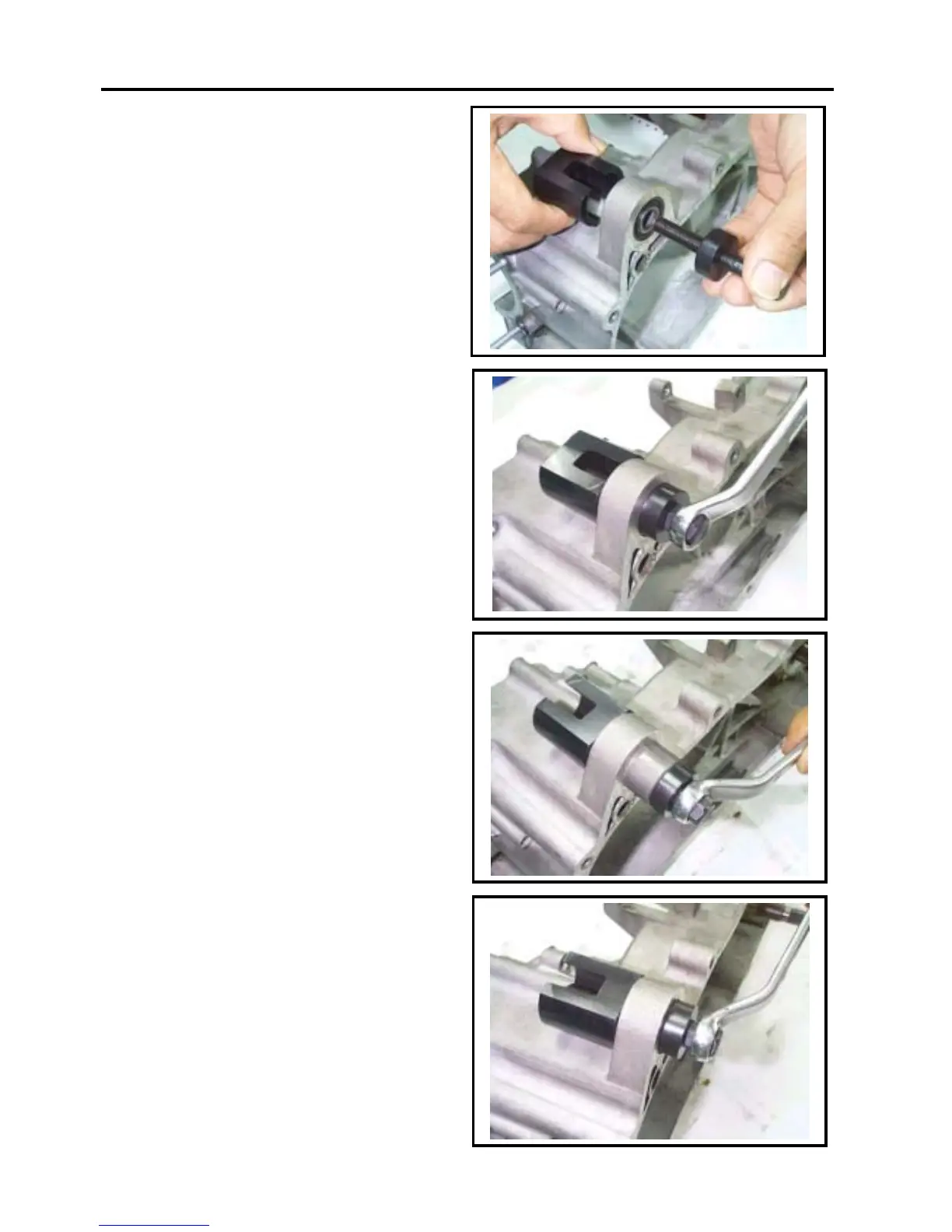

Pressing out
Place the detent section of the bushing
remover toward the bushing, and drive both
the pressing ring and bolt in to press the
bushing out.
Pressing In
Place the flat section of the remover toward
the bushing, and then drive the bushing,
pressing ring, and bolt in to install the
bushing.
