○N Multi-function Meter
○a Side Stand Down Indicator
This indicator and the parking brake indicator (page 10) go on when the side stand (page 26) is kicked
down. The engine cannot be started when the side stand is down. The engine will be stopped if the side
stand is kicked down while the engine is running. This indicator goes off when the side stand is up.
○b Luggage Box Light Indicator
This indicator goes on when the luggage box light is lit up. This indicator goes off when the luggage box
light is off.
○c Fuel Gauge
This digital fuel gauge shows the fuel level. There are 7 bars in the fuel gauge. If the fuel tank is full, all
the 7 bars go on ○a . The low fuel indicator (page 10) goes on when there is only the first bar ○b
remains, go refuel the fuel tank immediately.

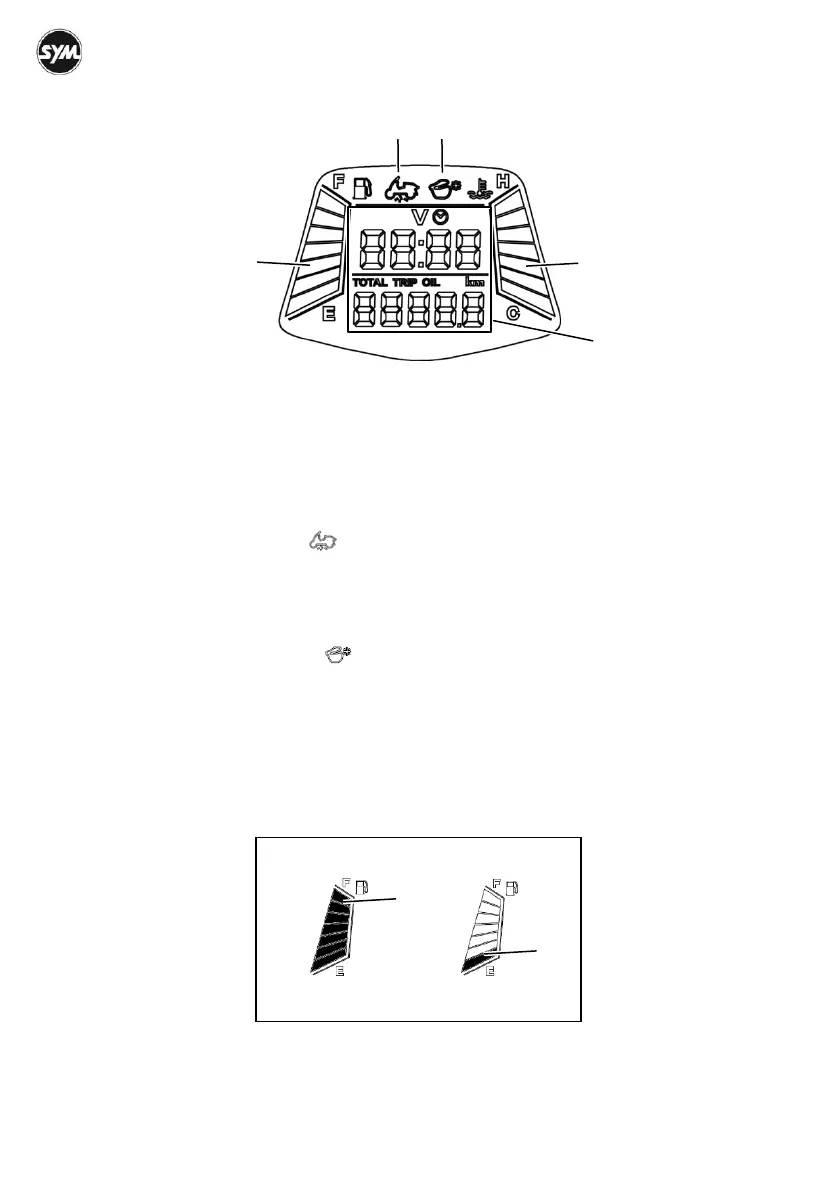

a. Side stand down indicator
b. Luggage box light indicator
c. Fuel gauge
d. Coolant temperature gauge
○a
○b
○c
○d
○e
e. Multi-function display
- Clock
- Battery voltage gauge
- Odometer
- Trip meter
- Oil distance meter
○a
○b
To Next Page
