Symmons 7-1000 User Manual

3
Note: Dimensions are subject to change without notice.
Measurements
Dimension 7-200 7-400
A 1/2", 13 mm 1/2", 13 mm
B 1-7/8", 46 mm 1-1/2", 39 mm
C 8-15/16", 226 mm 9-3/4", 248 mm
D 5-15/16", 150 mm 6-1/2", 165 mm
E 2", 51 mm 2-5/8", 67 mm
F 3-5/16", 84 mm 4-1/8", 105 mm
G 1-5/16", 33 mm 1-1/2", 38 mm
H 11/16", 17 mm 3/4", 19 mm
Dimension 7-500 7-700
A 1/2", 13 mm 1/2", 13 mm
B 1-15/16", 49 mm 1-15/16", 49 mm
C 9-5/8", 244 mm 9-13/16", 249 mm
D 7-11/16", 195 mm 7-11/16", 195 mm
E 2-15/16", 75 mm 2-15/16", 75 mm
F 4-7/8", 124 mm 4-7/8", 124 mm
G 1-15/16", 49 mm 1-15/16", 49 mm
H 1-5/16", 33 mm 1-5/16", 33 mm
TempControl Valve Sizes
Model No. Inlet Outlet
7-200 3/4" 3/4"
7-400 3/4" 1"
7-500 1" 1-1/4"
7-700 1-1/4" 1-1/2"

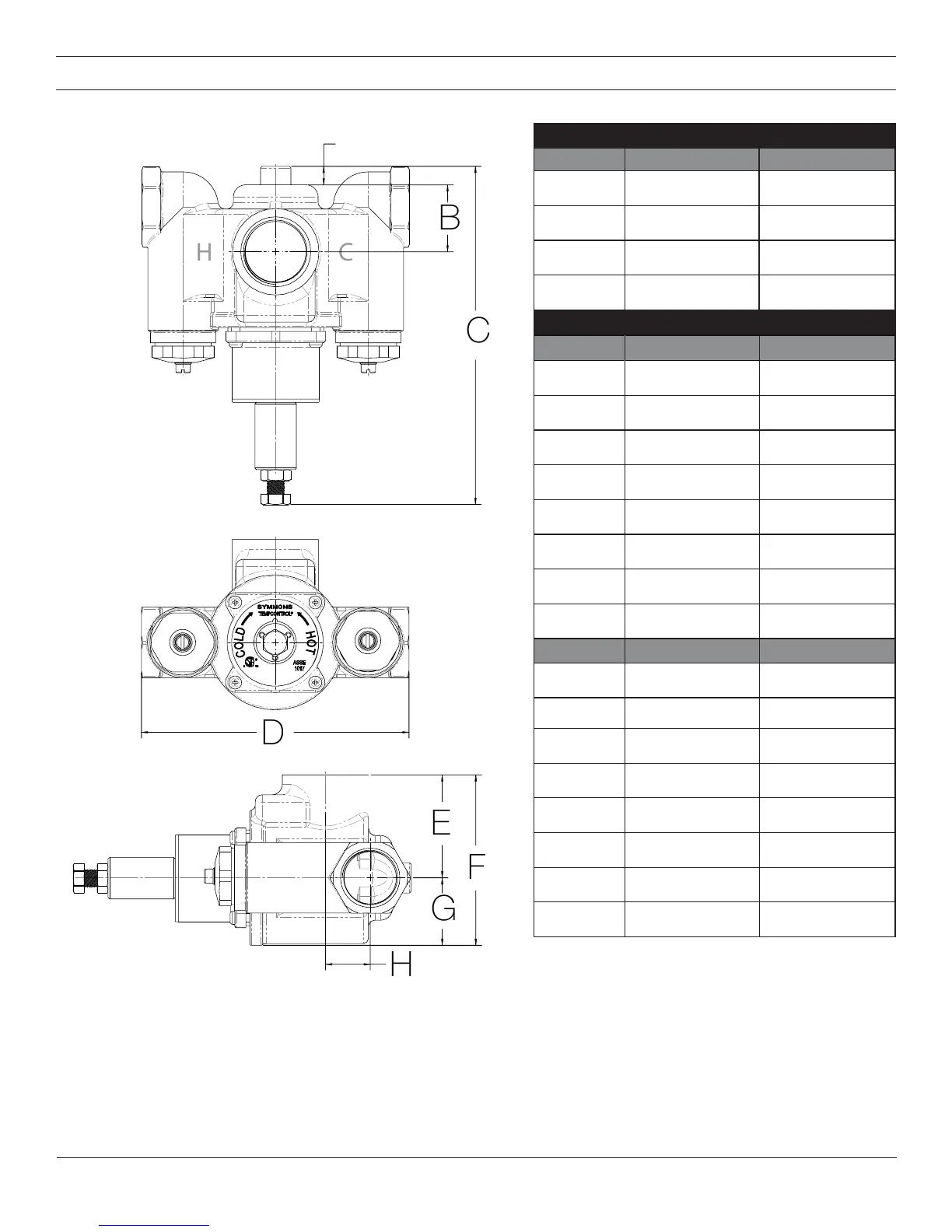

Dimensions (7-200, 7-400, 7-500, 7-700)
A
B
C
D
E
F
G
H
H C
