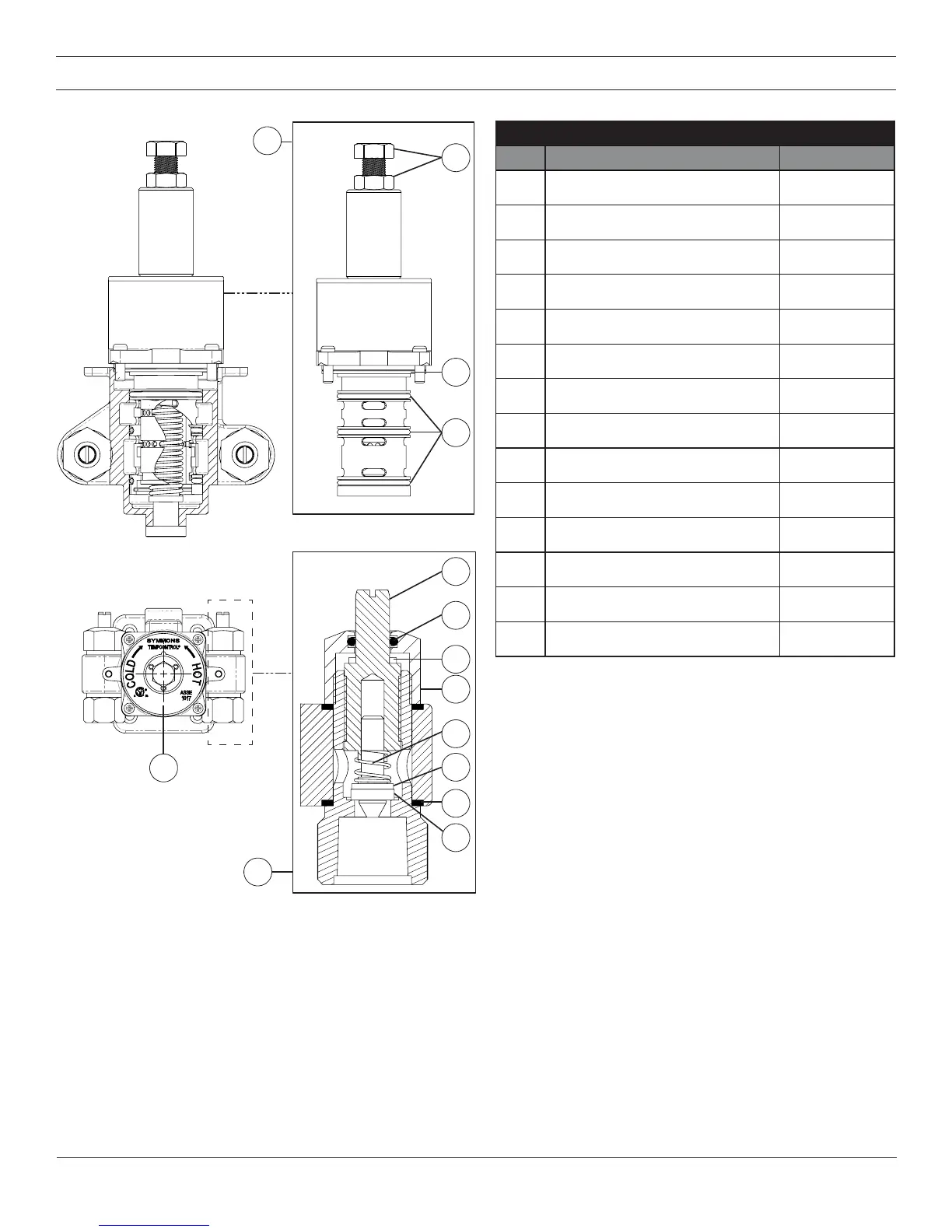

Parts Breakdown (7-102)
B
C
D
E
F
G
H
I
A
K
L
J
M
N
Replacement Parts for Model 7-102
Item Description Part No.
A Valve replacement cartridge 7-102NW
B Check stop spindle CSE-35
C O-ring CE-29
D Washer CSE-31
E Check stop cap CSE-26
F Check spring CSE-34
G Check assembly CSE-33
H Gasket (x2) CE-30
I Check stop washer CSE-32
J Check stop body with stop seat CSE-25
K Casing gasket TT-11-200
L Sleeve o-rings (x3) TT-15-200
M Temperature Control Nut & Bolt RO-028
N Dial RO-029
