Symmons 7-1000 User Manual

7
A
B
C
D
E
G
H
F
I
J
Replacement Parts for Models 7-900/1000
Item Description Part No.
A Valve replacement cartridge 7-( )NW
B Casing gasket TT-11-1000
C Sleeve o-rings (x3) TT-15-1000
D Gasket between stops TT-32A
E Cap gasket TT-21-( )
F Stop spindle TT-22-( )
G
Complete replacement stop
body assembly
TT-27-( )
H Check spindle and spring TT-200-( )
I Temperature Control Nut & Bolt RO-028
J Dial RO-029

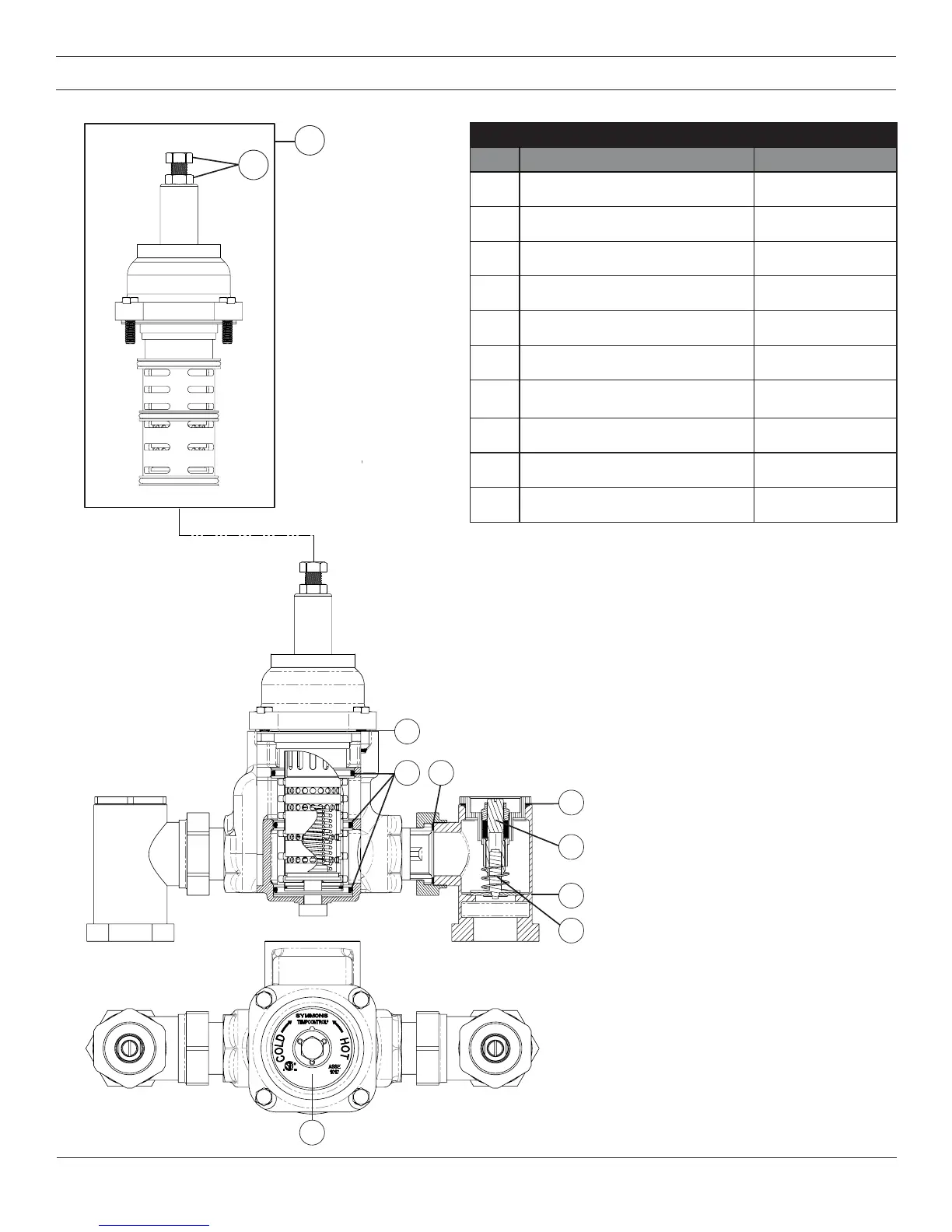

Parts Breakdown (7-900, 7-1000)
Notes:
1) Insert proper model number in parenthesis if model
number does not appear in part number.
2) Item G contains cap gasket, check spring, bonnet
assembly and check assembly.

Symmons 7-1000 Specifications

General

Brand	Symmons
Model	7-1000
Category	Control Unit
Language	English
