Technical Manual 60
Menu Level 3: PID Tune

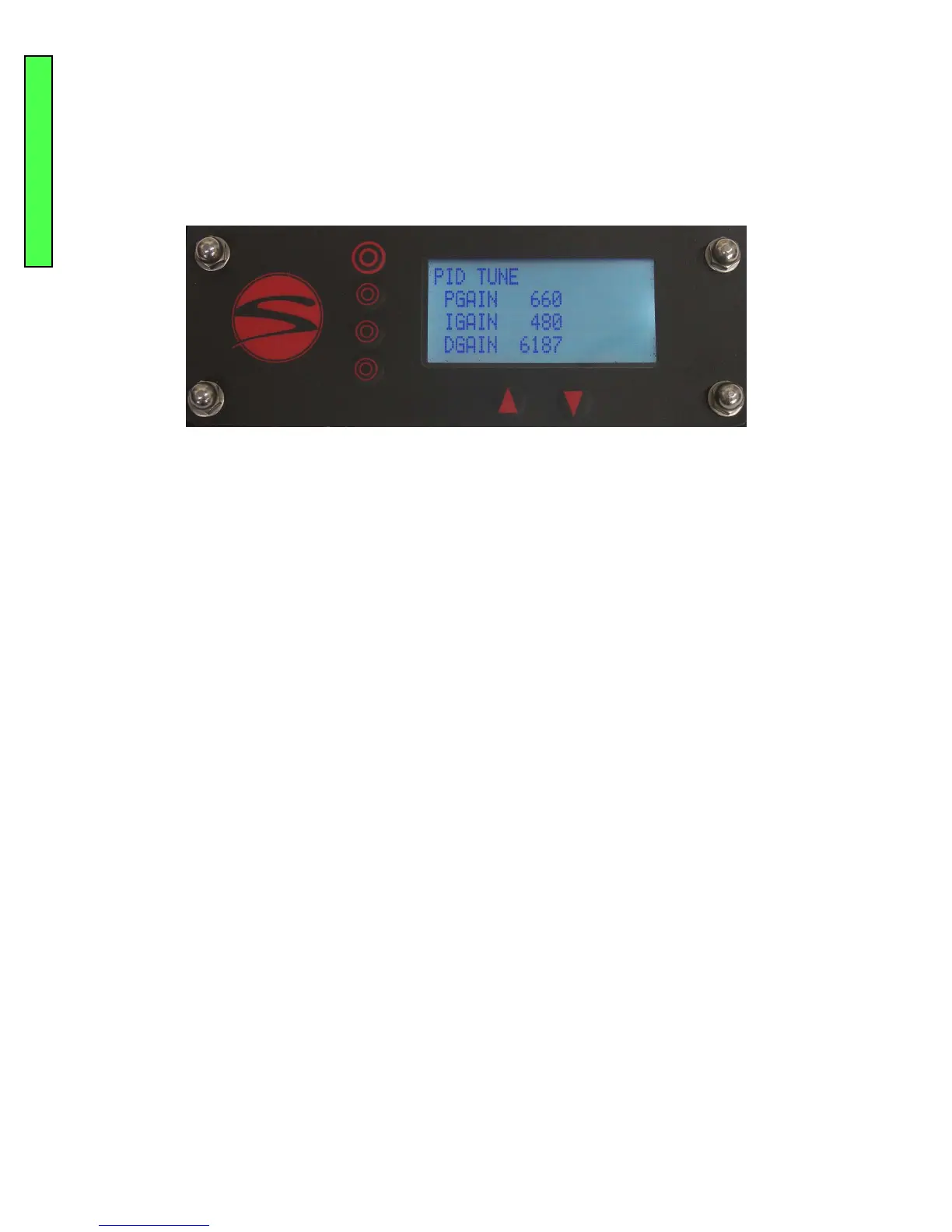

Line 1 indicates that you are on the PID Tune screen. The proportional–integral–derivative controller
(PID controller) is a sequence of algorithms using separate, nely tuned parameters to achieve a
desired set point.
Synesso™ strongly recommends against altering these parameters.
Line 2 indicates the level at which the P Gain (Proportional Gain) is set.
Line 3 indicates the level at which the I Gain (Integral Gain) is set.
Line 4 indicates the level at which the D Gain (Derivative Gain) is set.
PROGRAMMING
PROGRAMMING
